ZAS702A Outdoor Stainless Steel Camera Housing with Sun Shroud

ZAS702A Outdoor Stainless Steel Camera Housing with Sun Shroud

Brand Name: ZUOAN
Model Number: ZAS702A
MOQ: 1set
Price: 100-250USD
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets per week
Detail Information
Place of Origin:
Changzhou, China
Certification:
NEMA
Material:
Stainless Steel 201, 304, 316L
Sun Shroud:
Yes
NEMA:
Type 4
Ingress Protection:
IP65
Cable Hole:
2 Sets G3/4 Cable Gland
Inner Size:
260*80*80mm
Weight:
4.5kg
Optional:
Heater, Blower, Power Kit
Packaging Details:
firm carton box
Product Description

ZAS702A Outdoor Stainless Steel Camera Housing With Sun Shroud





Overview:



The ZAS702A outdoor stainless steel camera housing from ZUOAN is sunlights, rain and dust-proof enclosures for surveillance cameras. This stainless steel camera housing is made of 201, 304 or marine grade 316L material. The ZAS702A stainless steel camera housing can load wide range of cameras, not only the zoom camera, but also the fixed local lengths camera.



The ZAS702A stainless steel camera housing is designed with sun shroud, so as to against light reflect and heat during the day. The stainless steel camera housing's optional heaters and blower to keep inside dry in summer and warm in cold winter. Additionally, its rear flange features two G3/4 cable gland for camera video or power cable thread by.



ZUOAN also design a wall bracket ZAZ104B to load the ZAS702A stainless steel camera housing. The wall bracket with flexible joint can make the stainless steel camera housing easily fixed at any angle. Additionally ZUOAN  pan tilt ZAY210 cann also load ZAS702A stainless steel camera housing to realise 360 degree auto tracking and surveillance.



Download Data sheet



ZAS702AB outdoor stainless steel camera housing data sheet.pdf





Features:



  • Design for sunlights, rain, dust ingress
  • Outdoor enclosure for various surveillance camera
  • stainless steel 201, 304, 316L construction
  • compact, light weight
  • Meet NEMA  type 4
  • Accept zoom camera or fixed lens camera
  • Optional sun shroud, heater, blower to upgrade housing

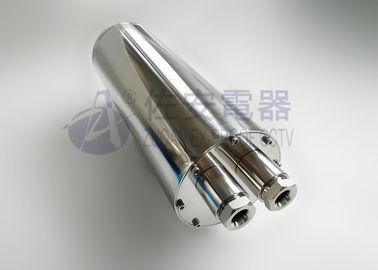

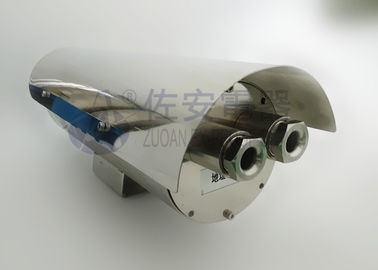

ZAS702A Outdoor Stainless Steel Camera Housing with Sun Shroud 0  ZAS702A Outdoor Stainless Steel Camera Housing with Sun Shroud 1



Specs



Model ZAS702A
Atmospheric pressure 60KPa~96Kpa
Ambient Temperature –25°c~+60°C
Relative Humidity ≤95% (+25°C)
Sun shroud Yes
Window Dia 76mm
Cable gland 2 sets G3/4
Ingress protection IP65
Housing Material Stainless steel 201, 304, or 316L
Overall dimension 358*133*155mm
Optional heater, blower for hot summer and cold winter
Weight 4.5kg





Drawings

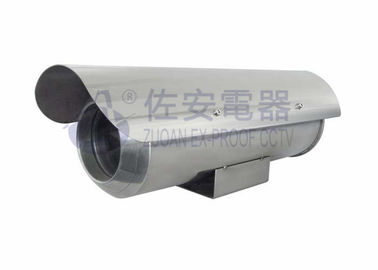

ZAS702A Outdoor Stainless Steel Camera Housing with Sun Shroud 2

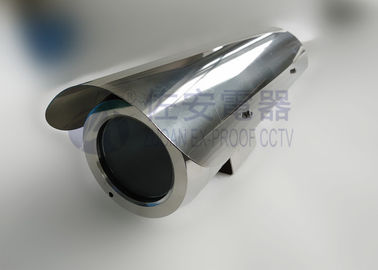

ZAS702A Outdoor Stainless Steel Camera Housing with Sun Shroud 3



Accessories:



ZAS702A Outdoor Stainless Steel Camera Housing with Sun Shroud 4

     ZAZ104B wall bracket for ZAS702A housing
