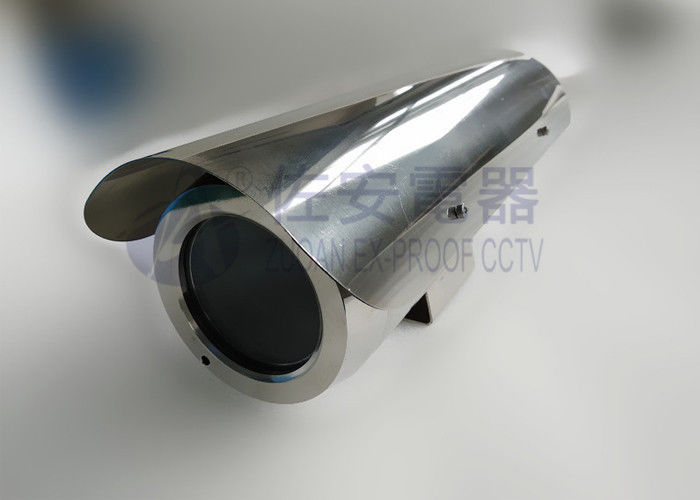

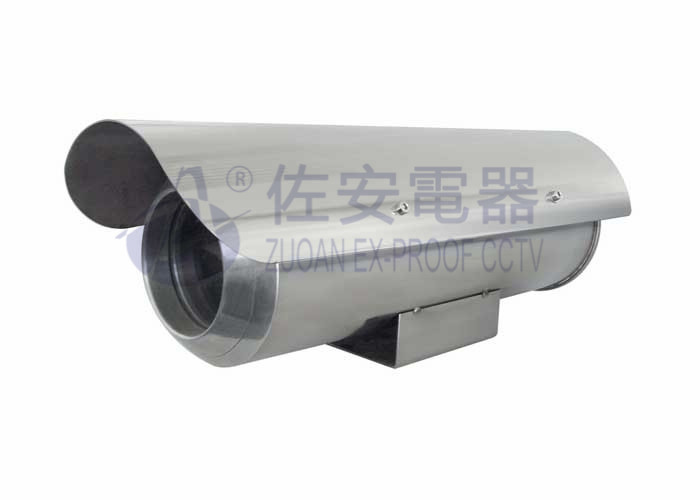

ZAS702A Outdoor Stainless Steel Camera Housing with Sun Shroud

ZAS702A Outdoor Stainless Steel Camera Housing with Sun Shroud

    • ZAS702A Outdoor Stainless Steel Camera Housing with Sun Shroud
    • ZAS702A Outdoor Stainless Steel Camera Housing with Sun Shroud
    • ZAS702A Outdoor Stainless Steel Camera Housing with Sun Shroud
    • ZAS702A Outdoor Stainless Steel Camera Housing with Sun Shroud
  • ZAS702A Outdoor Stainless Steel Camera Housing with Sun Shroud

    Product Details:

    Place of Origin: Changzhou, China
    Brand Name: ZUOAN
    Certification: NEMA
    Model Number: ZAS702A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: 100-250USD
    Packaging Details: firm carton box
    Delivery Time: 5-8 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 50 sets per week
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 201, 304, 316L Sun Shroud: Yes
    NEMA: Type 4 Ingress Protection: IP65
    Cable Hole: 2 Sets G3/4 Cable Gland Inner Size: 260*80*80mm
    Weight: 4.5kg Optional: Heater, Blower, Power Kit

    ZAS702A Outdoor Stainless Steel Camera Housing With Sun Shroud





    Overview:



    The ZAS702A outdoor stainless steel camera housing from ZUOAN is sunlights, rain and dust-proof enclosures for surveillance cameras. This stainless steel camera housing is made of 201, 304 or marine grade 316L material. The ZAS702A stainless steel camera housing can load wide range of cameras, not only the zoom camera, but also the fixed local lengths camera.

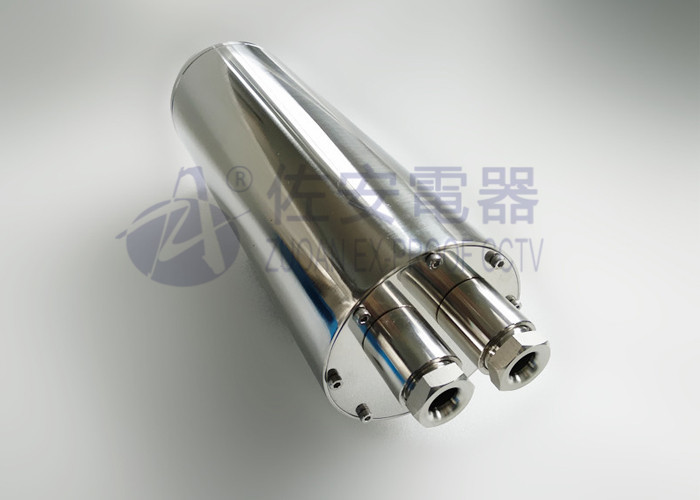

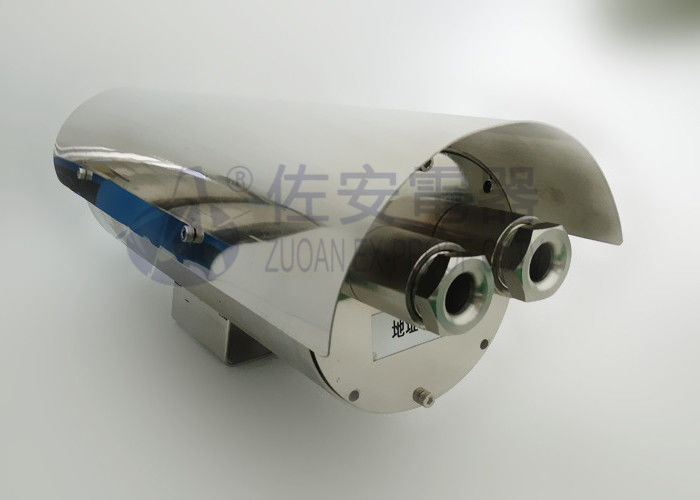

    The ZAS702A stainless steel camera housing is designed with sun shroud, so as to against light reflect and heat during the day. The stainless steel camera housing's optional heaters and blower to keep inside dry in summer and warm in cold winter. Additionally, its rear flange features two G3/4 cable gland for camera video or power cable thread by.



    ZUOAN also design a wall bracket ZAZ104B to load the ZAS702A stainless steel camera housing. The wall bracket with flexible joint can make the stainless steel camera housing easily fixed at any angle. Additionally ZUOAN  pan tilt ZAY210 cann also load ZAS702A stainless steel camera housing to realise 360 degree auto tracking and surveillance.



    Download Data sheet



    ZAS702AB outdoor stainless steel camera housing data sheet.pdf





    Features:



    • Design for sunlights, rain, dust ingress
    • Outdoor enclosure for various surveillance camera
    • stainless steel 201, 304, 316L construction
    • compact, light weight
    • Meet NEMA  type 4
    • Accept zoom camera or fixed lens camera
    • Optional sun shroud, heater, blower to upgrade housing



    ZAS702A Outdoor Stainless Steel Camera Housing with Sun Shroud  ZAS702A Outdoor Stainless Steel Camera Housing with Sun Shroud



    Specs



    Model ZAS702A
    Atmospheric pressure 60KPa~96Kpa
    Ambient Temperature –25°c~+60°C
    Relative Humidity ≤95% (+25°C)
    Sun shroud Yes
    Window Dia 76mm
    Cable gland 2 sets G3/4
    Ingress protection IP65
    Housing Material Stainless steel 201, 304, or 316L
    Overall dimension 358*133*155mm
    Optional heater, blower for hot summer and cold winter
    Weight 4.5kg





    Drawings

    ZAS702A Outdoor Stainless Steel Camera Housing with Sun Shroud

    ZAS702A Outdoor Stainless Steel Camera Housing with Sun Shroud



    Accessories:



    ZAS702A Outdoor Stainless Steel Camera Housing with Sun Shroud

         ZAZ104B wall bracket for ZAS702A housing
