| Place of Origin: | China |
|---|---|
| Brand Name: | ZUOAN |
| Certification: | CNEx |
| Model Number: | ZAF109 |
| Minimum Order Quantity: | MOQ 1set |
| Price: | US300-600 per set |
| Packaging Details: | carton box |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs per month |
| Material: | Stainless Steel 304 , 316L | Certification: | CNEx |
|---|---|---|---|
| Ingress Protection: | IP68 | Resolution: | 1080P |
| Lens: | 4.0mm@F2.0 | Smart IR: | Up To 30m IR Distance |
| Compression: | Ultra 265,H.265, H.264, MJPEG | Network: | ONVIF Conformance |
| Power Input: | DC12V/POE | Power Consumption: | Max 7.5W |
| Apply Area: | Gas Zone 1, 2; Dust Zone 21, 22. | Operate Temperature: | –20°c～+60°C |
| Cable Entry: | M27*1.25 | Weight: | 4.3kg |

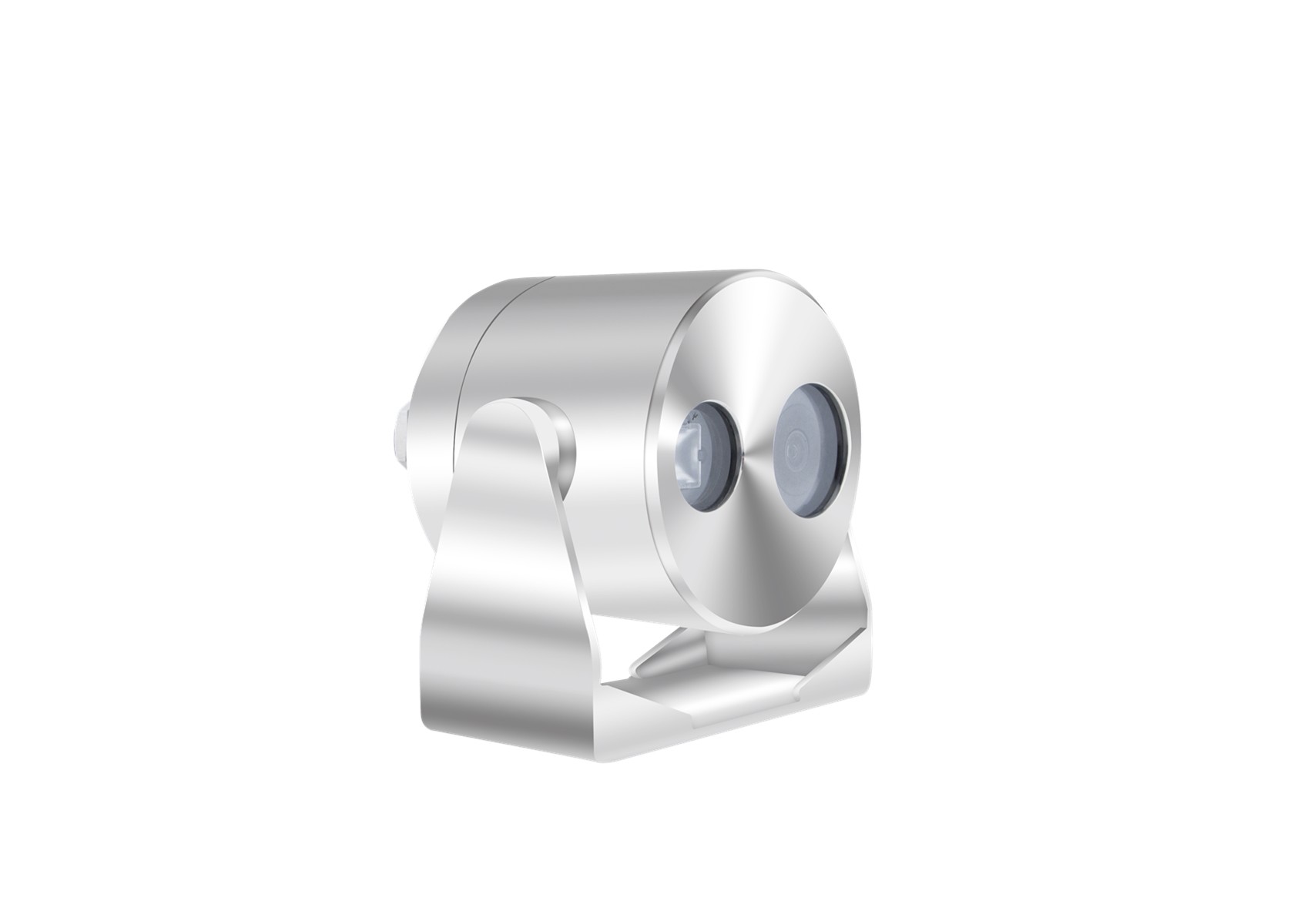

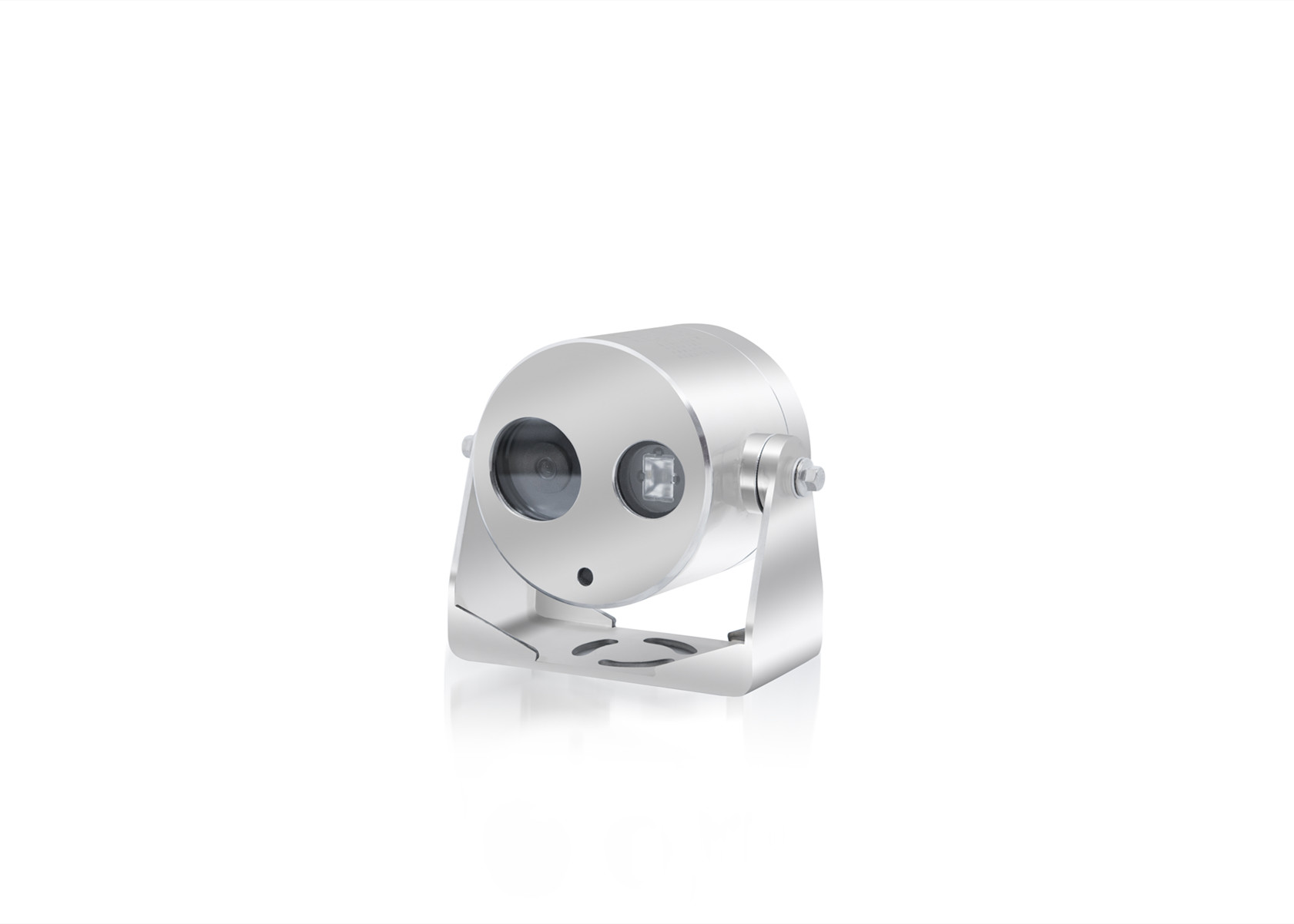

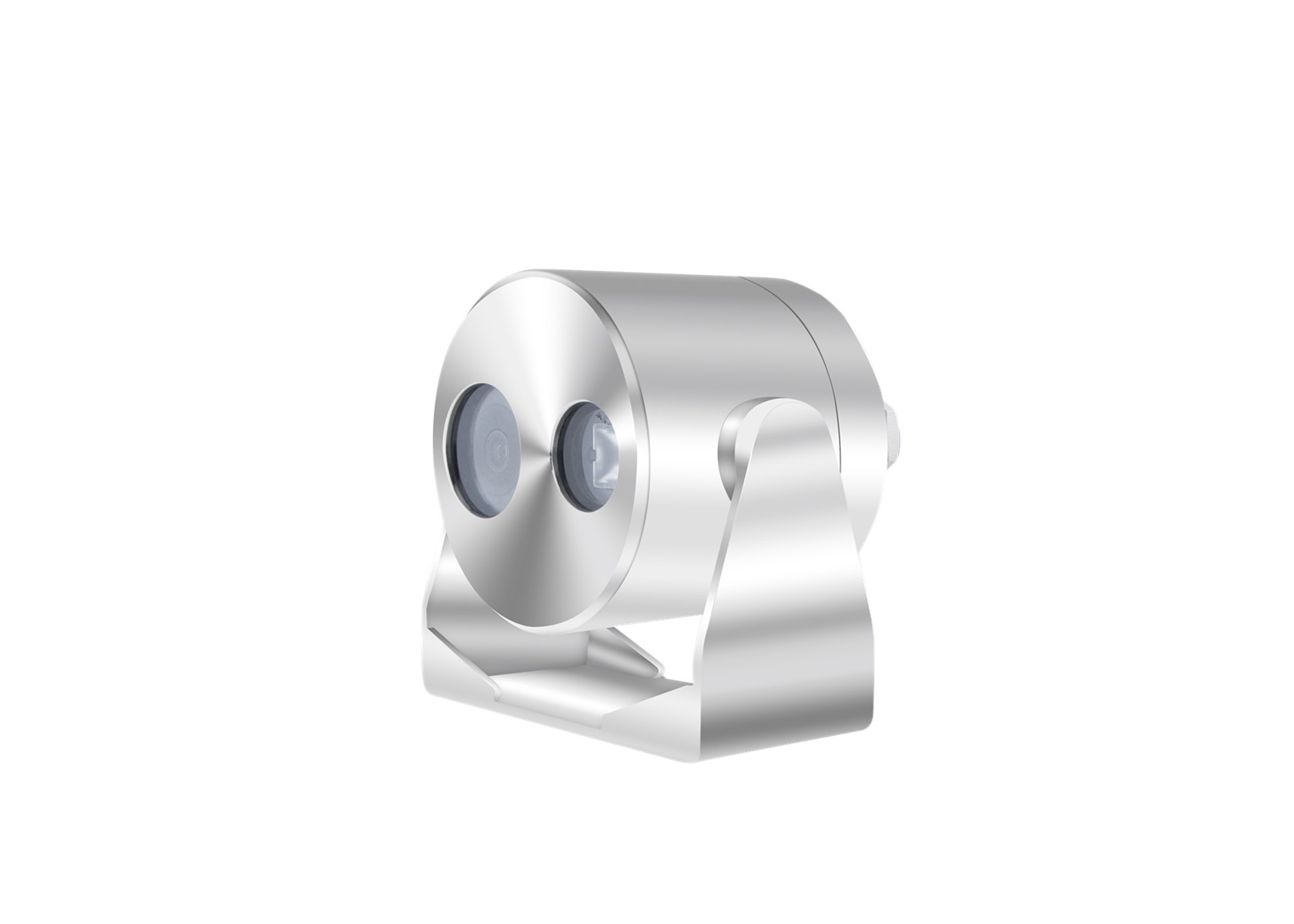

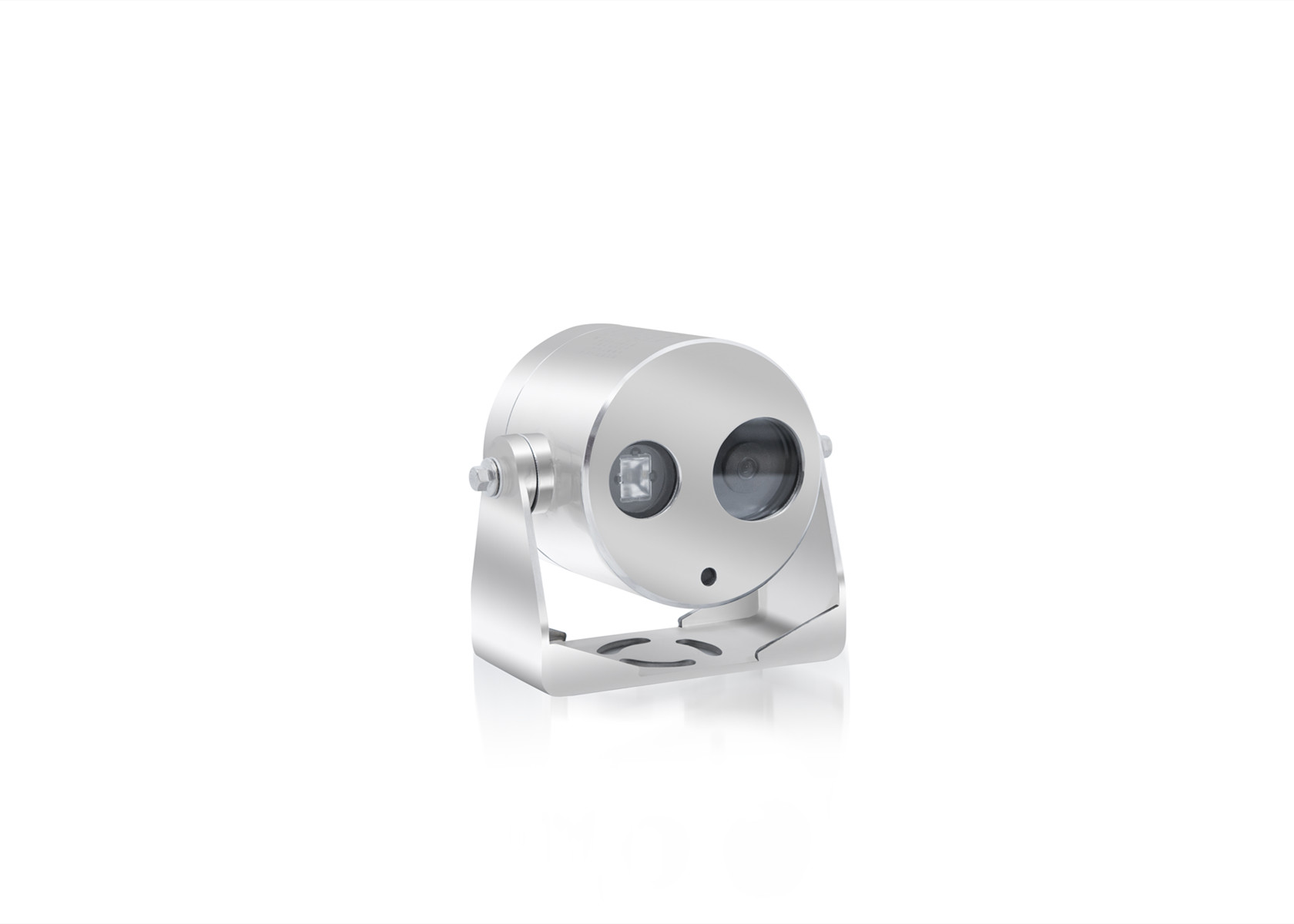

ZAF109 2MP Fix Explosion Proof Network Infrared Dome Camera for gas zone, dust zone
Summary:
ZAF109 is ZUOAN new developed smart explosion proof infrared dome camera in 2020 year, which is 2MP camera fit for gas zone 1, zone 2; dust zone 21, zone 22. This camera is fixed 4.0mm lens , and also adopts smart IR, up to 30m night vision distance.
ZAF109 enclosure is made of stainless steel 304 and 316L material. Its window adopts toughened glass. At the side of enclosure, there is also flexible bracket for various mounted way. ZAF109 Explosion-proof Camera is CNEx certified, which is applicable for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exists. It also applicable for Zone 21 and Zone 22 hazardous areas that explosive dust may exist.
At the end of rear flange, there are 1 cable entry for pigtail cable thread by. This camera requires DC12V and POE.
All joints of enclosure are protected by O rings and lip type sealing ring, which satisfied Ex tb dust ignition protection requirements. The ZAF109 explosion proof CCTV camera ingress protection level also reach to IP68(1.2m/45min).
Client are all welcomed to offer your brand camera to us. We also perfer assembly client camera into this explosion proof enclosure.
Service Condition:
Specifications:
| Model | ZAF109 | |
| Camera type | 1.3MP | 2MP |
| Atmospheric pressure | 80KPa～110Kpa | |
| Ambient Temperature | –20°c～+60°C | |
| Relative Humidity | ≤95% (+25°c) | |
| Ex-proof mark | Exd II CT6 Gb/ Ex tD A21 IP68 T80℃ | |
| Explosion proof Certified | CNEx 16.2526 | |
| Ingress Protection | IP68 | |
| Housing Material | Stainless Steel 304 or 316L | |
| Image Sensor | 1/3" Progressive Scan CMOS | 1/2.8" Progressive Scan CMOS |
| Signal | PAL/NTSC | |
| Max. Image Resolution | 1280*960 | 1920*1080 |
| Frame Rate | 50Hz: 25fps (1280*960, 1280*720, 704*576, 640*480) 60Hz: 30fps (1280*960, 1280*720, 704*576, 640*480) |
50Hz: main stream 25fps (1920 × 1080, 1280 × 960,1280*720), sub stream: (352*288, 640*360) |
| Min. Illumination: | 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR | |
| Shutter | 1/3 sec to 1/100,000 sec | |
| Lens | 4mm (6mm optional) | |
| Lens of angle |
4mm,73.1°, 6mm,46° |
4mm,90°; 6mm,53.9° |
| Lens mount | M12 | |
| Day& Night: | IR cut filter with auto switch | |
| Image Enhancement | 3D DNR | 3D DNR |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser | |
| Communication interface | 1 RJ45 10M / 100M ethernet interface | |
| ROI | Support 1 fixed region for main stream and sub stream separately | |
| Video Compression | H.264/MJPEG | H.264/MJPEG/H.264+ |
| Video bit rate | 32kpbs~12Mbps | 32kpbs~16Mbps |
| Dual streams | Support | |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 | |
| General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
|
| System Compatibility | ONVIF (Profile S, Profile G), ISAPI | |
| Light night vision | 0-30m | |
| Voltage Input | DC12V/ POE(802.3af) | |
| Power consumption | 5w Max | |
| Cable output | Integrated cable, 2m long | |
| Cable gland | 1pcs G3/4 or M27*1.25 | |
| Overall dimension LxWxH |
168*150*148mm | |
| Net weight | 4.3 kg | |
Drawings:
CZ109 ATEX CCTV Camera Accessories:
wall bracket mount adapter Ex flexible tube
Special order/ requirements
Contact us for special requirements, Email: info@exproofcctv.com
