    Product Details:

    Place of Origin: China
    Brand Name: ZUOAN
    Certification: CNEX
    Model Number: ZAY210

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 0-1500 USD
    Packaging Details: firm carton or wooden box
    Delivery Time: in stock
    Payment Terms: 100% TT before shipment
    Supply Ability: 1000 set per month
    price term: EXW price
    Contact Now
    Detailed Product Description
    Weather Proof: IP68 Pan And Tilt Crust: Stainless Steel 304 Or 316L
    Explosion Proof Marking: Exd II CT6 Gb/DIP A20 TA, T6 Pan: 360 Degree Auto Tracking
    Tilt: -90 To +60 Degree Load Weight: 10kg
    Weight: 10.5kg

    Stainless Steel IP68 Explosion Proof Pan Tilt For CCTV Camera Housing



    Main features:

    * CNEx certificatedStainless Steel IP68 Explosion Proof Pan Tilt For CCTV Camera Housing
    * Adopts stainless steel 304, 316L
    * IP68
    * Explosion proof marking: Exd II CT6  Gb/ DIP A20 TA, T6
    * Cable threaded hole: 2 sets of G3/4 (NPT 3/4)
    * Installation: mounted on ceiling, or wall bracket
    * Rotation angle: Horizontal 0-360 degree, Vertical -90 to + 60 degree
    * Rotation speed: 6 ° per second
    *Input voltage: AC220V , AC110V, AC24V
    * Working current: ≤ 500mA
    * Power: less than 50W
    * Preset points: no
    * Control : RS485, Pelco-D/P
    * Video output: AV or RJ45
    *Control: RS-232/RS485
    * load weight: 10kg
    * Net weight: 10.5kg
    * Overall Dimension: 315*315*359mm
    * Operation temperature: -25 to 65 °C ( -35 to 65°C)
    * Can load : ZAF105, ZAF104, ZAF103, ZAF1031
    ·
    Download Data Sheet Here:




    Stainless Steel IP68 Explosion Proof Pan Tilt For CCTV Camera Housing Description:

    ZAY210 is featured as explosion proof pan and tilt, which can load light weight explosion proof cctv camera housing (ZAF105, ZAF104, ZAF103, ZAF1031. ). It is a ecnomics composition to making 360 degree auto tracking surveillance in industry hazardous area.

    ZAY210 explosion proof pan tilt, its crust is made of stainless steel 304 or stainless steel 316L. Its weather proof grade is IP68, fit for all kinds of weather condition.



    Stainless Steel IP68 Explosion Proof Pan Tilt For CCTV Camera Housing  Applications:

    With stringent certifications, explosion proof ptz camera enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.





    Data sheet:

    Model ZAY210
    Crust stainless steel 304/ 316L
    Weather Proof

    IP68

    Explosion proof certified

    CNEX: Exd II CT6 & DIP A20, TA, T6

    certification No. CNEx13.4247
    Weather proof IP68
    Running speed 6°/S
    Running angle horizontal 360 °, vertical -90 to +60°
    power input AC24V, AC110V, AC220V,
    operate temperature

    -25~65°C

    lower temperature type: -50~65°C

    Control  RS485, Pelco-D / Pleco-P
    Signal output AV/ RJ45
    Net weight 10.5kg
    Load weight 10kg
    Overall dimension 315*315*359mm
    working current less than 500mA
    Power less than 50W

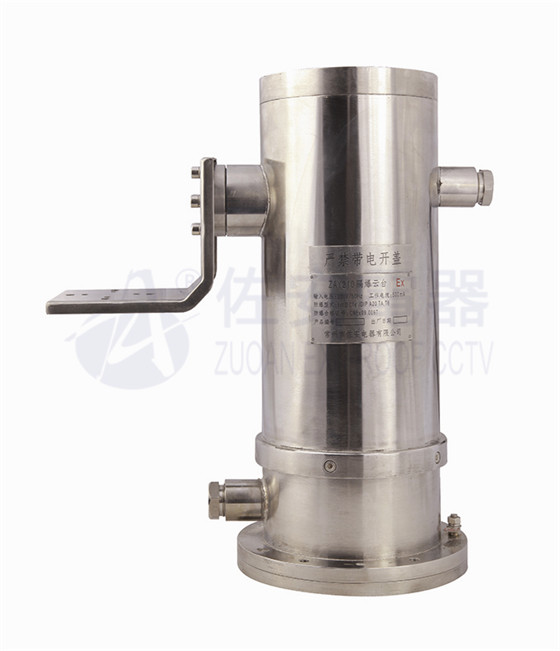

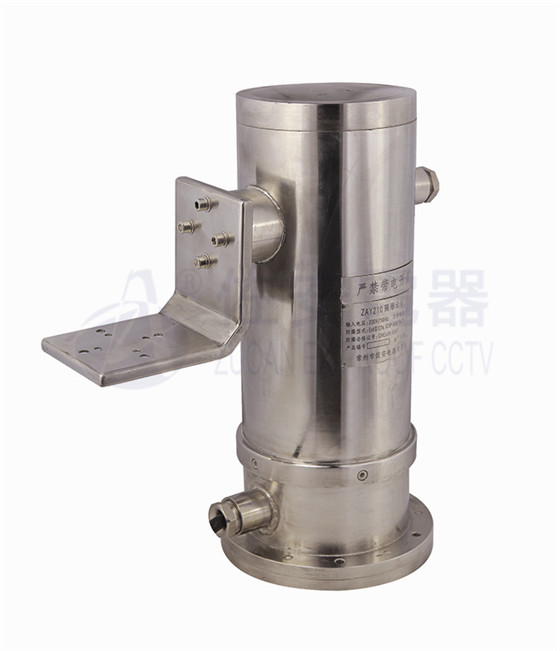

    Details images:

    Stainless Steel IP68 Explosion Proof Pan Tilt For CCTV Camera Housing         Stainless Steel IP68 Explosion Proof Pan Tilt For CCTV Camera Housing

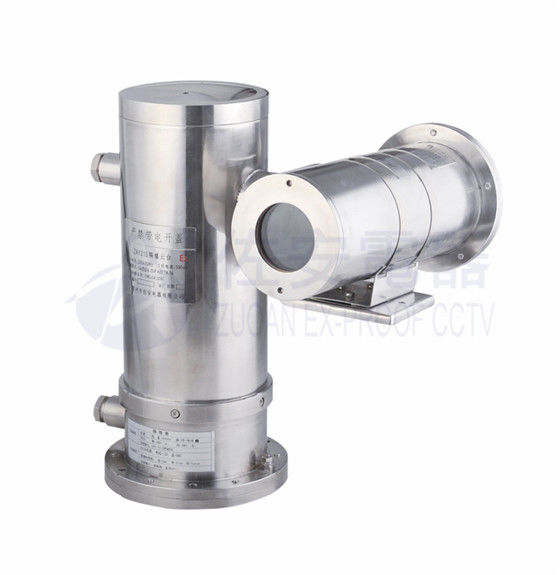

    Composition way: ZAY210  + ZAF105  / ZAF103

    ZAF105,      explosion proof camera housing Stainless Steel IP68 Explosion Proof Pan Tilt For CCTV Camera Housing

                          Inner size for camera: 260*80*80mm

                          5.5kg

    ZAF103,     explosion proof CCTV housing with infrared lights

                       Inner size for camera: 250*80*80mm

                        30m night vision distance

                        5.5kg
