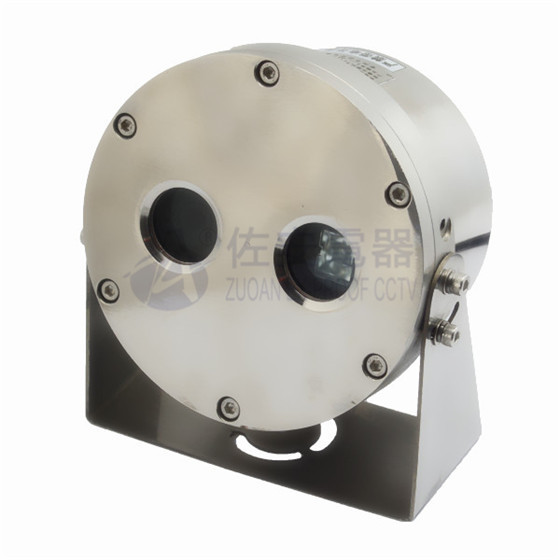

950TVL Flame Proof Mini Explosion Protected Camera For Oil Tank Truck
Description:
ZAF109 is a mini explosion proof camera monitoring equipment. It can be applied in the explosive gas automosphere, like zone1 and zone2 withⅡA,ⅡB orⅡC, and in flammable dust environment, like zone 20,zone21 and zone22. ZAF109 isinternally installed with the infrared lamp with 30m viewing distance, which is suitbale for a less scope night vision environment inside and outside. The ex-proof frade and temperature groups all accord with the highest requirements of National standards.
Applications:
oil tank truck, dangerous goods vehicle, oil tanker, or other hazardous area, with flammable substance, like oil, fertilizer, gas, chemical agent, dust, power, fireworks, ect.
Main features:
ZAF109 mini explosion proof camera has no wiper, but it's window is made of nano glass which has a self- cleaning flunction.
ZAF109 is installed with a SONY 1/3 CCD camera with a high resolution and a function of automatical switching from color to black.
ZAF109 explosion proof marking is Exd and DIP, products can be widely used in Gas zones and Dust zones.
ZAF109 ingress protection is IP68, get the highest protection grade. ZAF109 weight is 2.2 KG.
Mini Analog Explosion Proof Camera with Lights-ZAF109 data sheet.pdf
Data sheet:
| Model |
ZAF109-S-950 |
| IP rated |
IP68 |
| working temperature |
-25~65°C |
| resolution |
950TVL |
| lens |
3.6mm, 4mm, 6mm,12mm, |
| crust |
stainless steel 304 |
| Explosion proof Marking |
Exd II CT6 Gb/ Ex tD A21 IP68 T80℃ |
| Explosion proof certification |
CNEx16.2526 |
| application |
Gas zone 1, 2; dust zone 20, 21,22 |
| working current |
≤1000ml |
| power consumption |
≤15W |
| power |
12VDC |
| infrared light |
30meter |
| netweight |
4KG |
| Overall dimension |
144*158*167mm |
| cable output |
2core video, 2 core power cable |
| Cable output hole |
1 set G3/4 or NPT3/4 |
