2.2MP 20X High Speed Explosion-protected Explosion Proof Dome Camera

2.2MP 20X High Speed Explosion-protected Explosion Proof Dome Camera

    • 2.2MP 20X High Speed Explosion-protected Explosion Proof Dome Camera
    • 2.2MP 20X High Speed Explosion-protected Explosion Proof Dome Camera
    • 2.2MP 20X High Speed Explosion-protected Explosion Proof Dome Camera
    • 2.2MP 20X High Speed Explosion-protected Explosion Proof Dome Camera
  • 2.2MP 20X High Speed Explosion-protected Explosion Proof Dome Camera

    Product Details:

    Place of Origin: China
    Brand Name: ZUOAN
    Certification: CNEX
    Model Number: ZAT630-S-IP

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 0-3000 USD
    Packaging Details: firm carton or wooden box
    Delivery Time: in stock
    Payment Terms: 100% TT before shipment
    Supply Ability: 1000 set per month
    price term: EXW price
    Detailed Product Description
    Type: Digital Camera Style: Dome Camera
    Sensor: CMOS Technology: Pan / Tilt / Zoom
    Special Features: Explosion Proof Ingress: IP68
    Housing: Stainless Steel 304/316L Preset Patrol: 128 Points
    Network Camera: 2.2MP, 20Xoptical, POE Dome Camera Weight: 12KG

    2.2MP 20X High Speed Explosion-protected Explosion Proof Dome Camera



    2.2MP 20X High Speed Explosion-protected Explosion Proof Dome Camera

    Main features:

    Explosion proof certification: CNEx10.1061
    Crust: Stainless Steel 304, 316L
    highest ingress: IP68 rated
    double explosion proof marking: Exd II CT6 Gb/Ex tD A21 IP68 T80°C
    wide voltage: AC85~265V
    net weight: 12 Kg
    package dimension: 205*205*445mm
    mounted: wall, or ceiling
    rotation: horizontal 360 °, vertical 0~-90°
    running speed: 0.1-400°/s
    preset point: 128/256 points
    control: RS485, RJ45, RS232
    communication: AV, RJ45, SDI
    protocol: TCP/IP/ pelco-d/pelco-p
    optional camera insde: analog camera, network camera, HD camera
    Input voltage: AC24V/AC220V, AC85-265V


    Description:

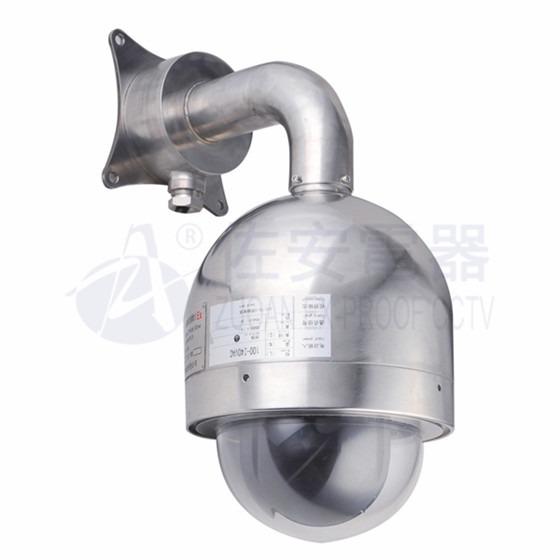

    ZAT630, it is featured as2.2MP 20X high speed stainless steel explosion-protected explosion prood dome camera.  Its explosion proof dome camera housing can fit for 5inch, 6inch high speed camera, . It is fit for the outside and inside.ZAT630 explosion proof dome camera has the features of high speed location and preset accuracy. And double stainless steel shell ensures this device to work regularly even temperature reaches to 60 degree centigrade.the explosion proof housing is a ready-to-use kit, for all brand cctv camera, like SAMSUNG CCTV camera, Hikvision cctv camera, Dahua cctv camera, Geovision cctv camera.

      2.2MP 20X High Speed Explosion-protected Explosion Proof Dome Camera

    Applications:

    With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project, Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.



    Data sheet:

    Model ZAT630-S-IP
    Crust stainless steel 304
    Camera type

    2MP, 20X optical zoom

    color min 1.5lux; B&W 0.1Lux

     focal length: 4.7-94mm

    Explosion proof certified Exd II CT6 Gb/Ex tD A21 IP68 T80°C
    certification No. CNEx15.2504X
    Weather proof IP68
    Running speed 0.1-400°/S
    Running angle horizontal 360 °, vertical - 90~0°
    preset point 128 points
    function auto scanning, auto cruise, keep watch
    power input AC24V, AC220V, AC85-265V
    operate temperature

    -40~65°C

    Control  RS485, Pelco-D / Pleco-P
    Signal output RJ45
    Netweight 12Kg




    Explosion Proof PTZ Speed Dome Camera-ZAT630 series data sheet.pdf



    Details images:

       2.2MP 20X High Speed Explosion-protected Explosion Proof Dome Camera

    Other products:

    2.2MP 20X High Speed Explosion-protected Explosion Proof Dome Camera

    2.2MP 20X High Speed Explosion-protected Explosion Proof Dome Camera
