Rig Floor Display Explosion Proof CCTV Monitor of 17 inch Screen

Basic Information
Place of Origin: China, Changzhou
Brand Name: ZUOAN
Certification: explosion proof certificate
Model Number: ZAJS400
Minimum Order Quantity: 1unit
Price: USD2000-4000 per set
Packaging Details: wooden box per unit
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram,Paypal
Supply Ability: 20pcs per week
Type: Rig Floor Display Certificate: Explosion Proof CCTV Monitor
Size: 17 Inch LED Screen Material: Stainless Steel 304
Resolution: 1280*1024 Brightness: 250 Cd/m2
Contrast Radio: 1000:1 Aspect Radio: 4:3
Display Color: 16.7 Million Video System: PAL Or NTSC
Panel Life: 30,000 Hours Connector: AV Or VGA
Weight: 32kg Weather Proof: IP66

Rig Floor Display Explosion Proof CCTV Monitor of 17 inch Screen





Rig floor display summary:

ZAJS400 is a rig floor display, which already get the explosion proof certificate. Therefore, rig floor display can fit for gas zone 1, zone 2, dust zone 21, and zone 22. Rig floor display is made of stainless steel or carbon steel, which weather proof rate is IP66. RIg floor display has 17inch LED screen, and its video input singal can be AV or VGA type. Rig floor display has reach to 1280*1024 resolution, and has fast response time of 5ms.





Rig floor display features:



Rig floor display applications:

Our ZAJS400 rig floor display is developed for industry area with explosive gas, oil, chemical and powders. With Ex d & Ex tD marking, it can apply for gas zone 1, zone 2; dust zone 21, and zone 22.





Rig floor display explosion proof CCTV monitor data sheet download:

ZAJS400 17inch explosion proof monitor.pdf



Rig floow display explosion proof CCTV monitor Video show link

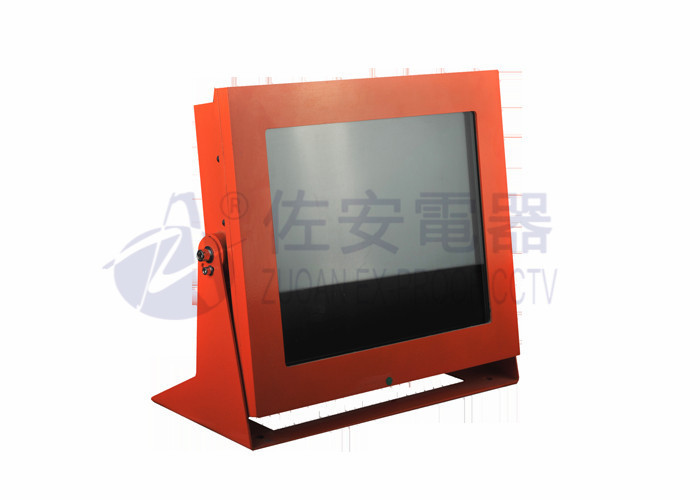

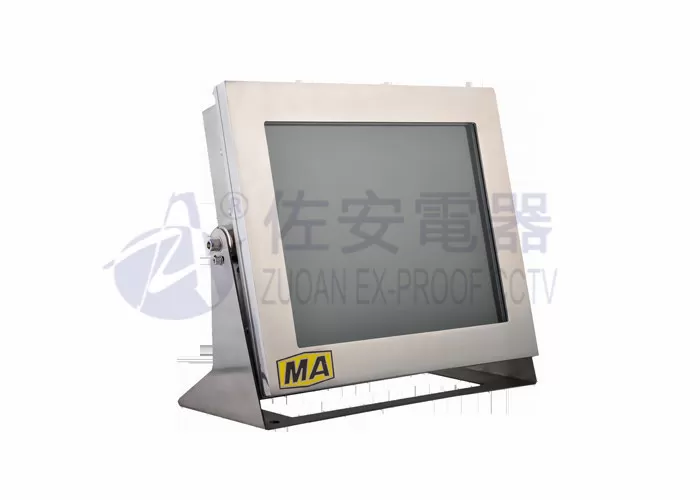

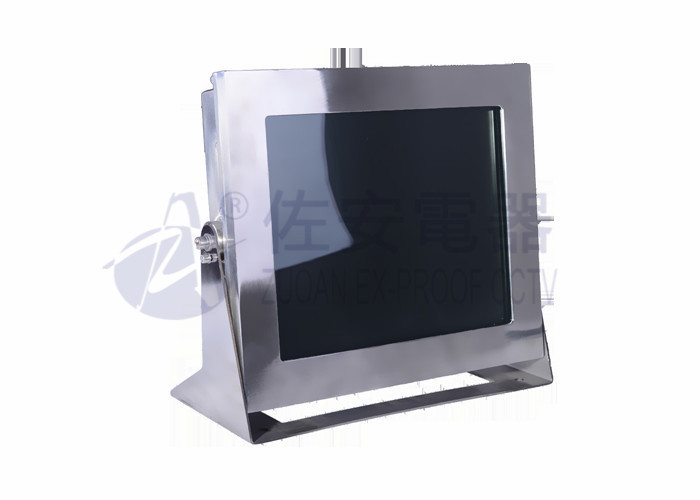

Rig Floor Display Explosion Proof CCTV Monitor of 17 inch Screen 0Rig Floor Display Explosion Proof CCTV Monitor of 17 inch Screen 1





Rig floor dispaly explosion proof CCTV monitor specification:



Certificate

Certificate Mark ExdⅡB T6 Gb / DIP A20 TA, T6
Certificate No CNEx13.4246
Standards Q/320412ZAF014-2013



Mechanical

Housing Stainless steel 304 or 316L
IP IP66
Cable thread hole 1pcs , or 2pcs  G3/4 or NPT3/4



Electrical

Voltage AC85V~AC265V or DC24Vor AC24V
Power 50W
Surge Protect Optional, TVS6000V surge protect



Ambient

Ambient temperature -25 to +60℃ / -45 to +80℃
Air pressure 80Kpa to 106Kpa
Relative Humidity ≦95% (no condensation)



Function

Dot Pitch 0.24825mm*0.24825mm
Resolution 1920*1080P
Brightness 300cd/m2
Contrast 1000:01:00
Response Time 14ms (G. To G)
Color 16.7M
Line Frequency 31.5-60KHz
Field Frequency 56-75Hz, Flick-free
View Degree Horizontal 176°
Connector Port VGA,or BNC, S-VHS, RGB, CVBS



General

Cable integrated cable
Size 473*200*396mm
Weight 28kg
Mounted desk





Rig floor display explosion proof CCTV monitor drawings:



Rig Floor Display Explosion Proof CCTV Monitor of 17 inch Screen 2





Rig floor display solution:



Rig Floor Display Explosion Proof CCTV Monitor of 17 inch Screen 3





Rig floor display accessories:



Rig Floor Display Explosion Proof CCTV Monitor of 17 inch Screen 4Rig Floor Display Explosion Proof CCTV Monitor of 17 inch Screen 5Rig Floor Display Explosion Proof CCTV Monitor of 17 inch Screen 6

       ZAJ320 Ex controller                      Ex connector                               Ex DVR, NVR box
