Explosion Proof PTZ Camera
Created with Pixso.

Analogue Zoom Explosion Proof PTZ Camera in 700TVL, 36X Optical

Analogue Zoom Explosion Proof PTZ Camera in 700TVL, 36X Optical

Brand Name: ZUOAN
Model Number: ZAT610-3
MOQ: 1 set
Price: 1000-2500USD
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal
Supply Ability: 50pcs per week
Detail Information
Place of Origin:
Changzhou, China
Certification:
CNEX
Type:
Analogue
Camera:
700TVL Zoom Camera
Optical:
36X
Enclosure:
Explosion Proof
Material:
Stainless Steel 304, 316L
Certificate:
ExdⅡC T6 GB/DIP A20 TA, T6
Certificate No.:
CNEx14.0068
IP:
IP68
Wiper:
Yes
Power:
AC85-265V, AC24V
Packaging Details:
wooden box
Product Description

Analogue Zoom Explosion Proof PTZ Camera in 700TVL, 36X Optical


Analogue zoom explosion proof ptz camera summary:

ZAT610-3 is a stable qualified explosion proof PTZ camera. It is analogue camera, which horizontal resolution is 700TVL. Explosion proof ptz camera has been equipped with wiper system for dusty area. Its focal length reach as 3.3-119mm. This product featured as PTZ station, which can surveillance 360 degree continuously. Its horizontal rotation speed reach as 0.1-45°/s. Tilt can rotate -90 to 90°. Explosion proof ptz camera has get the CNEx certificate, which no. is CNEx14.0068.  Its weather proof is IP68 rated, which fits for all kinds of weather conditions. ZUOAN also develop the lower temperature version for extremly cold area, like polar region around countries. The lowest working temperature is -50°C.

Explosion proof ptz camera features:


  • get CNEx explosion proof certficate
  • weather proof is IP68
  • adopts stainless steel 304 or 316L enclosure
  • 700TVL analogue zoom camera
  • 36X optical
  • low illumination reach to color 0.04Lux , BW 0.004Lux
  • 3.3-119mm focal length
  • PTZ auto control
  • 128 preset
  • lower operating temperature -50°C
  • wide voltage input: 85-265V

Explosion Proof PTZ Camera With Wiper -ZAT610-3 series data sheet.pdf

Explosion proof ptz camera application:

Explosion proof ptz camera is fit for hazardous area high place, hazardous location or explosive atmospheres, such as rig floor, gas station, oil refining, chemical factory, printing, papermaking, textile industry and coating industry. With stainless steel 316L crust, this explosion proof turret camera can also apply for marine area. Lower temperature version can apply for extremly cold area. More details, please contact us.

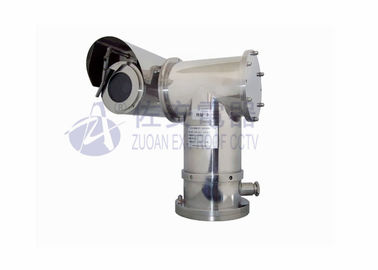

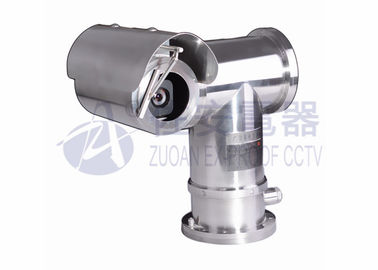

Analogue Zoom Explosion Proof PTZ Camera in 700TVL, 36X Optical 0Analogue Zoom Explosion Proof PTZ Camera in 700TVL, 36X Optical 1]

Analogue explosion proof ptz camera specifications:

Certificate

Certificate MarkExdⅡC T6 GB/DIP A20 TA, T6
Certificate NoCNEx14.0068
StandardsQ/320412 ZAF013-2013

Mechanical

HousingStainless steel 304 or 316L
IPIP68
Cable thread hole1pcs G3/4 or NPT3/4
Wiperyes

Electrical

VoltageAC85V~AC265V or DC24Vor AC24V
Power50W /70W (with thermostat)

Ambient

Ambient temperature-25 to +60℃
Air pressure80Kpa to 106Kpa
Relative Humidity≦95% (no condensation)

Communication

Communicationsupport analog video output
485 CommunicationSupport Pelco-D, Pelco-P
Communicate Rate2400 to 19200bps

Pan & Tilt

Horizontal360°
Horizontal speed0.1-45°/s
Vertical-90 to +90°
Cruise ScanSupport
Keep watchSupport
Preset64/128/255/300
Resume functionSupport
Auto CruiseSupport
Auto ScanSupport

Camera

Image Sensor1/3" interline-transfer CCD
Effective pixelPAL 976*582 NTSC 976*494
Min. IlluminationColor 0.04Lux B/W: 0.004Lux
Shutter Time1/50(1/60) sec~ 1/10,000 sec
Day&NightAuto ICR
Horizontal resolution700TVL (color), 720TVL (B&W)
S/N ratio>50dB(AGC off)

Lens

Focal Length3.3-119mm,  36X optical
Aperture RangeF1.6-F4.4
Angle of View58-1.7 degree(Wide-Tele)
Min. Working Distance10mm-1500mm(Wide-Tele)
Zoom SpeedApprox. 3s(Optical, Wide-Tele)

Control

Camera addresson/off (0-254)
Focus ModeAuto/Manual/One touch
Gainoff/ lower/ higher
Slow shutterX256 MAX
White BalanceAuto white balance 1/auto white balance 2/Manual/auto
PrivateOff/ Mode 1/ Mode 2
Video3D DNR, mirror, brightness, Contrast, Sharpness adjustable
Digital zoomX16
Zoom displayon/off
ZCF control modemode 1, mode 2
RS485protocol, baud rate, address
Preset254

General

Cableintegrated cable
Size376*280*396mm
Weight22kg
Mountedwall, pole
Wall bracketZAZ610B


Analogue explosion proof ptz camera accessories:

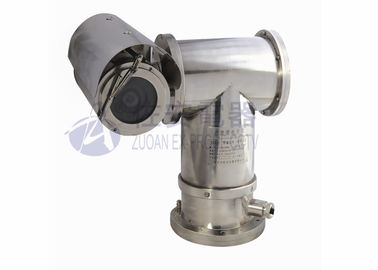

Analogue Zoom Explosion Proof PTZ Camera in 700TVL, 36X Optical 2Analogue Zoom Explosion Proof PTZ Camera in 700TVL, 36X Optical 3
                   ZANXG Exe flexible tube                                           ZAZ610B wall bracket


Analogue explosion proof ptz camera resolution:
Analogue Zoom Explosion Proof PTZ Camera in 700TVL, 36X Optical 4
