Place of Origin: | Changzhou, China |
---|---|
Brand Name: | ZUOAN |
Certification: | CNEX |
Model Number: | ZAT610-3 |
Minimum Order Quantity: | 1 set |
Price: | 1000-2500USD |
Packaging Details: | wooden box |
Delivery Time: | 5-8 work days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal |
Supply Ability: | 50pcs per week |
Type: | Analogue | Camera: | 700TVL Zoom Camera |
---|---|---|---|
Optical: | 36X | Enclosure: | Explosion Proof |
Material: | Stainless Steel 304, 316L | Certificate: | ExdⅡC T6 GB/DIP A20 TA, T6 |
Certificate No.: | CNEx14.0068 | IP: | IP68 |
Wiper: | Yes | Power: | AC85-265V, AC24V |

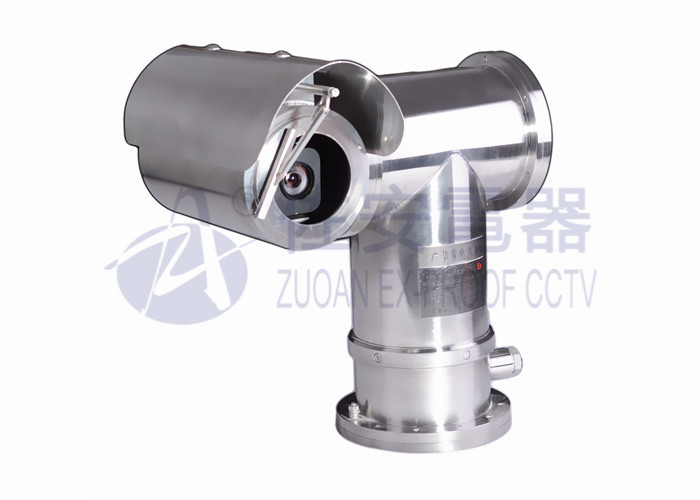

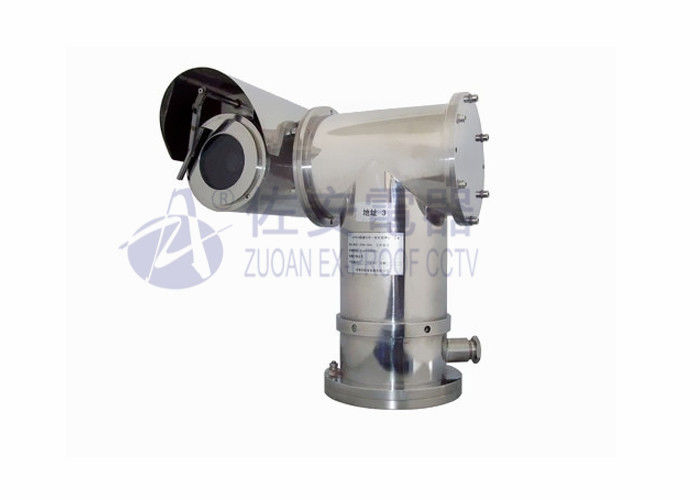

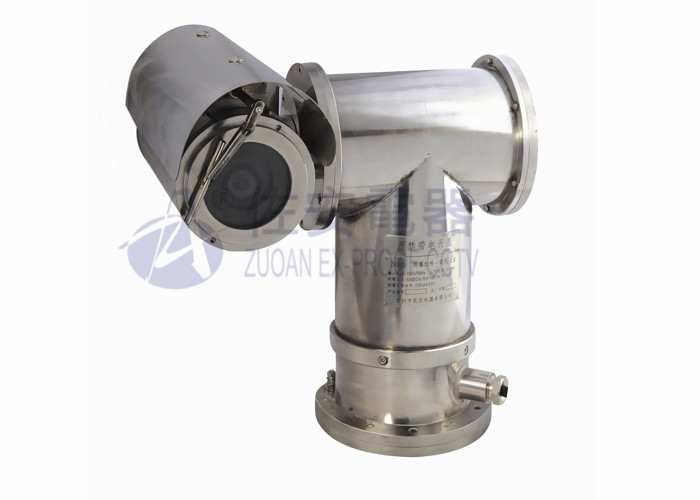

Analogue Zoom Explosion Proof PTZ Camera in 700TVL, 36X Optical
Analogue zoom explosion proof ptz camera summary:
ZAT610-3 is a stable qualified explosion proof PTZ camera. It is analogue camera, which horizontal resolution is 700TVL. Explosion proof ptz camera has been equipped with wiper system for dusty area. Its focal length reach as 3.3-119mm. This product featured as PTZ station, which can surveillance 360 degree continuously. Its horizontal rotation speed reach as 0.1-45°/s. Tilt can rotate -90 to 90°. Explosion proof ptz camera has get the CNEx certificate, which no. is CNEx14.0068. Its weather proof is IP68 rated, which fits for all kinds of weather conditions. ZUOAN also develop the lower temperature version for extremly cold area, like polar region around countries. The lowest working temperature is -50°C.
Explosion proof ptz camera features:
Explosion Proof PTZ Camera With Wiper -ZAT610-3 series data sheet.pdf
Explosion proof ptz camera application:
Explosion proof ptz camera is fit for hazardous area high place, hazardous location or explosive atmospheres, such as rig floor, gas station, oil refining, chemical factory, printing, papermaking, textile industry and coating industry. With stainless steel 316L crust, this explosion proof turret camera can also apply for marine area. Lower temperature version can apply for extremly cold area. More details, please contact us.
]
Analogue explosion proof ptz camera specifications:
Certificate
Certificate Mark | ExdⅡC T6 GB/DIP A20 TA, T6 |
Certificate No | CNEx14.0068 |
Standards | Q/320412 ZAF013-2013 |
Mechanical
Housing | Stainless steel 304 or 316L |
IP | IP68 |
Cable thread hole | 1pcs G3/4 or NPT3/4 |
Wiper | yes |
Electrical
Voltage | AC85V~AC265V or DC24Vor AC24V |
Power | 50W /70W (with thermostat) |
Ambient
Ambient temperature | -25 to +60℃ |
Air pressure | 80Kpa to 106Kpa |
Relative Humidity | ≦95% (no condensation) |
Communication
Communication | support analog video output |
485 Communication | Support Pelco-D, Pelco-P |
Communicate Rate | 2400 to 19200bps |
Pan & Tilt
Horizontal | 360° |
Horizontal speed | 0.1-45°/s |
Vertical | -90 to +90° |
Cruise Scan | Support |
Keep watch | Support |
Preset | 64/128/255/300 |
Resume function | Support |
Auto Cruise | Support |
Auto Scan | Support |
Camera
Image Sensor | 1/3" interline-transfer CCD |
Effective pixel | PAL 976*582 NTSC 976*494 |
Min. Illumination | Color 0.04Lux B/W: 0.004Lux |
Shutter Time | 1/50(1/60) sec~ 1/10,000 sec |
Day&Night | Auto ICR |
Horizontal resolution | 700TVL (color), 720TVL (B&W) |
S/N ratio | >50dB(AGC off) |
Lens
Focal Length | 3.3-119mm, 36X optical |
Aperture Range | F1.6-F4.4 |
Angle of View | 58-1.7 degree(Wide-Tele) |
Min. Working Distance | 10mm-1500mm(Wide-Tele) |
Zoom Speed | Approx. 3s(Optical, Wide-Tele) |
Control
Camera address | on/off (0-254) |
Focus Mode | Auto/Manual/One touch |
Gain | off/ lower/ higher |
Slow shutter | X256 MAX |
White Balance | Auto white balance 1/auto white balance 2/Manual/auto |
Private | Off/ Mode 1/ Mode 2 |
Video | 3D DNR, mirror, brightness, Contrast, Sharpness adjustable |
Digital zoom | X16 |
Zoom display | on/off |
ZCF control mode | mode 1, mode 2 |
RS485 | protocol, baud rate, address |
Preset | 254 |
General
Cable | integrated cable |
Size | 376*280*396mm |
Weight | 22kg |
Mounted | wall, pole |
Wall bracket | ZAZ610B |
Analogue explosion proof ptz camera accessories:
ZANXG Exe flexible tube ZAZ610B wall bracket
