Rugged Surroundings Auto Tracking Heavy Duty Explosion Proof PTZ Camera

Basic Information
Place of Origin: China
Brand Name: ZUOAN
Certification: CNEX
Model Number: ZAT610-3-S-IP
Minimum Order Quantity: 1 set
Price: 0-3000 USD
Packaging Details: firm carton or wooden box
Delivery Time: in stock
Payment Terms: 100% TT before shipment
Supply Ability: 1000 set per month
Type: Digital Camera Style: Box Camera
Sensor: CCD Technology: Pan / Tilt / Zoom
Special Features: Explosion Proof Ingress: IP68
Housing: Stainless Steel 304 Camera: 2.2MP, 20X Optical
Weight: 22KG Pan And Tilt: 360 Degree Auto Tracking
Preset Patrol: 128 Points

2.2MP 20X Auto Tracking Heavy Duty Explosion Proof PTZ Camera

Rugged Surroundings  Auto Tracking Heavy Duty Explosion Proof PTZ Camera 0

Main features:

·CNEx certificated
·stepping motor drive
·Adopts stainless steel 304/ 316L·Surface finish: electropolished or corrosion resistant paint finish
· cable gland
·Tempered glass with nanometer paint film for visiable light camera
Germanium front window for thermal imaging camera
·applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
·installation: mounted on ceiling, wall with pan &tilt, brackets.
·optional accessories: sun shield, lens decoder, window wiper, wiper decoder, auto-heating, auto-cooling modular.
·Communication : Pelco-D/ Pelco-P/TCP/IP
·Communication rate: 2400~19200bps
··Output: AV/H.264/RJ45
·Control: RS-232/RS485
·Camera: SONY, SAMSUNG, thermal camera
·Telephoto limited speed: yes
·Variable angle: horizontal 360°, vertical ±90°
·Preset patrol: 256/ 128 points



Download Data Sheet Here:


Explosion Proof PTZ Camera With Wiper -ZAT610-3 series data sheet.pdf


2.2MP 20X  Auto Tracking Heavy Duty Explosion Proof PTZ Camera Description:

If your security and surveillance needs include monitoring extreme, flammable, and explosive environments, marine corrosion environment, the ZUOAN ZAT610 is built for your environment. it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAT610corrosion proof CCTV housing regards as an integrated explosion proof video supervising system, which consists of explosion proof enclosure. infrared thermal imaging camera,germanium front window,wiper system, heater module, pan/tilt and decoder. The 316L, stainless steel housing is IP68 rated for all weather use and is corrosion/explosion resistant. its housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish,according to customer requirement.

Base and bracket installation options allow for 360 degree continuous pan rotation and +90 degree ~.90 degree tilt camera operations.The optional camera and the decoder are integrated within the housing, which permits multiple communication response protocols, depending on orders. It offers 256/128 preset options including pan/tilt and focus. The camera is equipped with sun shield and wiper, with an auto-heat option for outdoor monitoring, and equipped with infrared array light for night vision.


2.2MP 20X  Auto Tracking Heavy Duty Explosion Proof PTZ Camera Applications:

With stringent certifications, explosion-proof CCTV housing cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.


Data sheet:


Model ZAT610-3-SS
Crust stainless steel 316L
Camera type

2MP, 20X optical zoom

color min 1lux; B&W 0.1Lux

 focal length: 3.5-105mm

Explosion proof certified Exd II CT6 & DIP A20, TA, T6
certification No. CNEx14.0068
Weather proof IP68
Running speed 0.1-45°/S
Running angle horizontal 360 °, vertical ± 90°
preset point 128 points
function auto scanning, auto cruise, keep watch
equipped wiper system, sunshield,
power input AC24V, AC220V, AC85-265V
operate temperature


lower temperature type: -50~65°C

Control  RS485, Pelco-D / Pleco-P
Signal output RJ45
Netweight 22Kg


Details images:

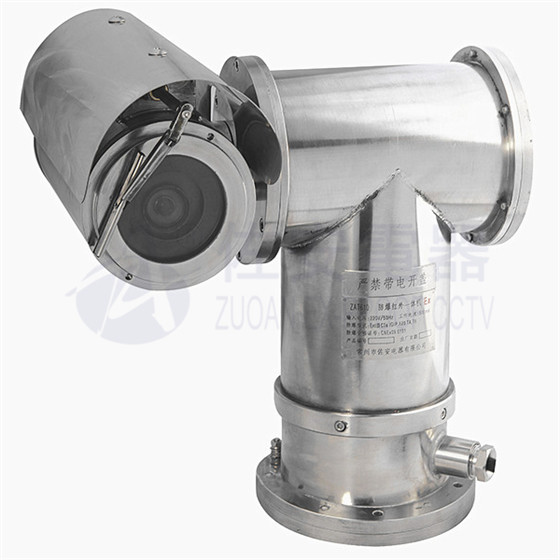

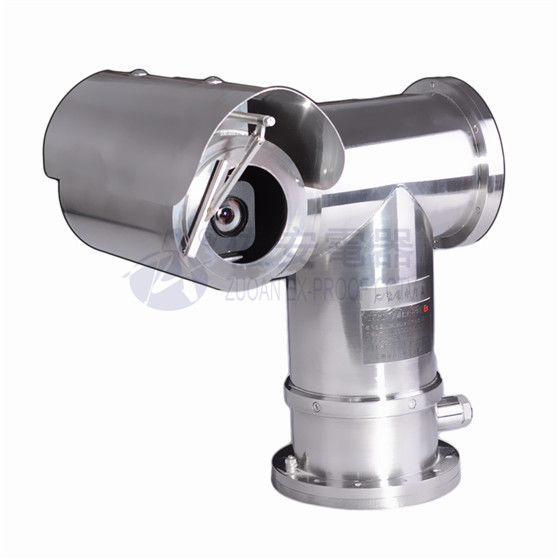

Rugged Surroundings  Auto Tracking Heavy Duty Explosion Proof PTZ Camera 1          Rugged Surroundings  Auto Tracking Heavy Duty Explosion Proof PTZ Camera 2
