|Type:||Digital Camera||Style:||Box Camera|
|Sensor:||CMOS||Technology:||Pan / Tilt / Zoom|
|Special Features:||Waterproof / Weatherproof||Ingress:||IP68|
|Housing:||Stainless Steel 304||Laser Light:||300m Night Vision Distance|
|Camera:||2.2MP,20X Optical Zoom Camera||Weight:||27KG|
|Pan And Tilt:||360 Degree Auto Tracking||Preset Patrol:||128 Points|

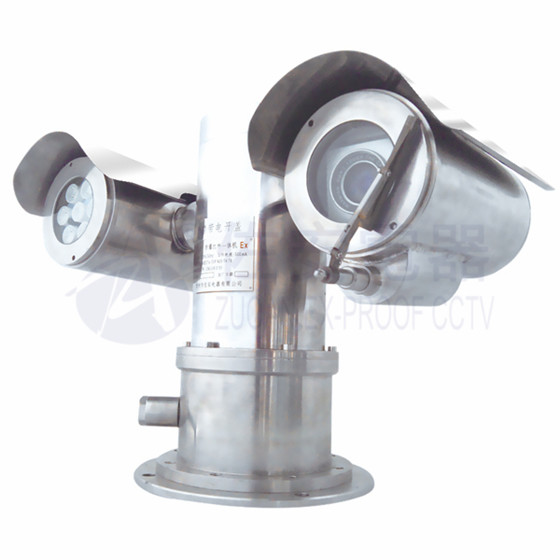

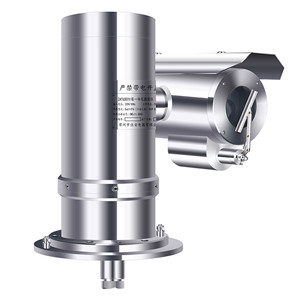

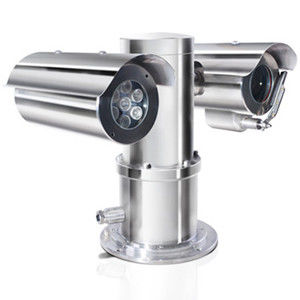

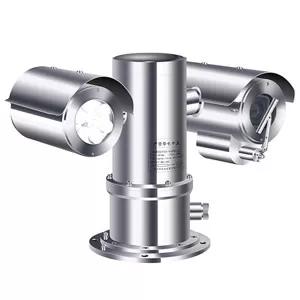

2MP 20X Long Distance Night Vision Explosion Proof PTZ Camera With Laser Lights
2MP 20X Long Distance Night Vision Explosion Proof PTZ Camera With Laser Lights Description:
ZAT610-5 is featured as 2MP20X long distance laser night vision explosion proof ptz camera, which is equipped with laser lights, self-cleaning wiper system. It is widely used for industry hazardous area.
If your security and surveillance needs include monitoring extreme, flammable, and explosive environments, marine corrosion environment, the ZUOAN CZ610-5 explosion proof ptz camera is built for your environment. it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 21, 22. ZAT610corrosion proof CCTV housing regards as an integrated explosion proof video supervising system, which consists of explosion proof enclosure. infrared thermal imaging camera,germanium front window,wiper system, heater module, pan/tilt and decoder. The 316L, stainless steel housing is IP68 rated for all weather use and is corrosion/explosion resistant. its housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish,according to customer requirement.
Base and bracket installation options allow for 360 degree continuous pan rotation and +90 degree ~.90 degree tilt camera operations.The optional camera and the decoder are integrated within the housing, which permits multiple communication response protocols, depending on orders. It offers 256/128 preset options including pan/tilt and focus. The camera is equipped with sun shield and wiper, with an auto-heat option for outdoor monitoring, and equipped with laser light for night vision.
2MP 20X Long Distance Night Vision Explosion Proof PTZ Camera With Laser Lights Applications:
With stringent certifications, explosion proof ptz camera enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.
|Crust||stainless steel 304/ 316L|
2.0MP, 20X optical zoom
color min 1.5lux; B&W 0.1Lux
focal length: 4.45-89mm
|Explosion proof certified||
CNEX: Exd II CT6 & DIP A20, TA, T6
|Running angle||horizontal 360 °, vertical ± 90°|
|preset point||128 points|
|function||auto scanning, auto cruise, keep watch|
|equipped||wiper system, sunshield,|
|power input||AC24V, AC220V, AC85-265V|
lower temperature type: -50~65°C
|Control||RS485, Pelco-D / Pleco-P|
