Explosion-proof CCTV Camera Cable Quick Connection Aviation Connector

Explosion-proof CCTV Camera Cable Quick Connection Aviation Connector

Brand Name: ZUOAN
Model Number: ZADL-07
MOQ: 1 set
Price: 0-100USD
Payment Terms: 100% TT before shipment
Supply Ability: 1000 set per month
Detail Information
Place of Origin:
China
Certification:
CNEX
Weather Proof:
IP65
Explosion Proof Marking:
Exd II CT6
Explosion Proof Certification:
CNEx12.3716
Material:
Stainless Steel 304, 316L
Packaging Details:
firm carton
Product Description

Explosion-proof CCTV Camera Cable Quick Connection Aviation Connector



Description:



ZADL-07 is Zuoan new developed explsion-proof aviation connetor for CCTV camera cable quick connection.

It has get the explosion proof certification, marked as Exd II CT6, which can apply for gas zone 1, zone 2.

The explosion-proof aviation connector has two sets of cable thread holes (G3/4, NPT 3/4)



Data sheet:

ZADL-07 explosion-proof aviation connector
Material stainless steel 304/ 316L
Explosion proof marking Exd II CT6
Explosion proof certification CNEx12.3716
Weather Proof IP65
Cable thread holes 2 sets of G3/4 (NPT3/4)
operation temperature -25 to +65 degree centigrade
pin 7-pin or 12 pin
input voltage 220VAC
working current less than 2A
net weight 2kg
overall dimension 247*86*100mm



data sheet for ZADL-07 exproof aviation connector.pdf

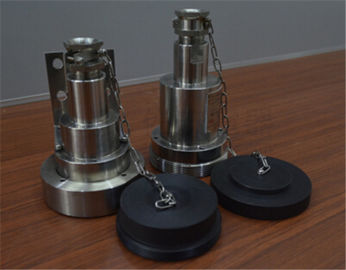

Details images:

Explosion-proof CCTV Camera Cable Quick Connection Aviation Connector 0

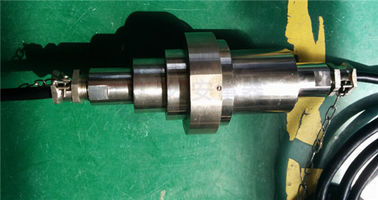

Mouted Holes:

Explosion-proof CCTV Camera Cable Quick Connection Aviation Connector 1
