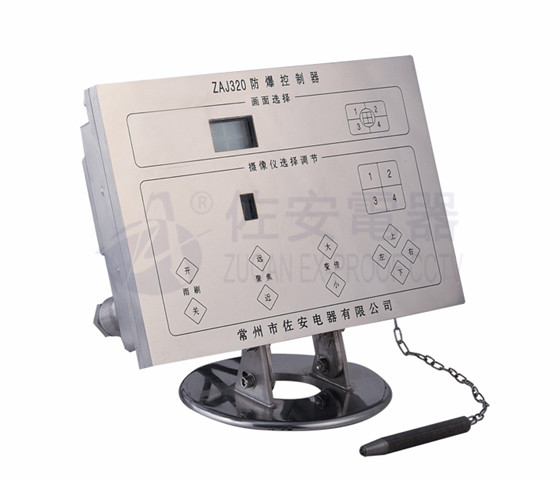

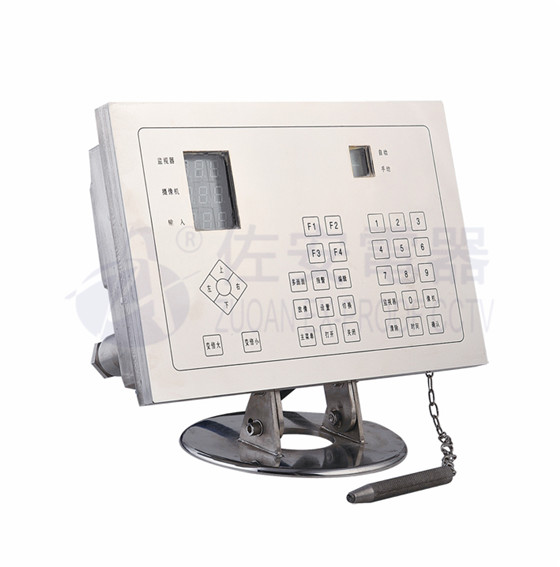

ZAJ320 Series Explosion proof Keyboard, Controller, Joystick for CCTV Cameras
Product summary:
ZAJ320 is explosion proof controller, also named as explosion proof keyboard, or explosion proof joystick. Its communication is by RS485. ZAJ320 explosion proof controller is made in 304 stainless steel. It support 4-channel video input, and 1-channel video output. ZAJ320 explosion proof controller can be used for wide voltage input, as AC85-265V. ZAJ320 can realise to control zoom, Pan& Tilt, wiper, focus, and split- screen.
Features:
·Explosion Proof type stainless steel 304 crust
·IP66 weather proof
·With 6pcs G3/4 threaded holes for cable connection
·applicable for pan control, lens control, split- screen,control switch, zoom, wiper and video switch.
Certificate
| Certificate Mark |
ExdⅡB T6 Gb / DIP A20, TA T6 |
| Certificate No |
CNEx16.3449X |
| Standards |
Q/320412ZAF081-2016 |
Mechanical
| Housing |
Stainless steel 304 or 316L |
| IP |
IP66 |
| Cable thread hole |
6pcs G3/4 or NPT3/4 |
Electrical
| Voltage |
AC85V～AC265V or DC24Vor AC24V |
| Power |
50W |
| Surge Protect |
Optional, TVS6000V surge protect |
Ambient
| Ambient temperature |
-25 to +60℃ / -45 to +80℃ |
| Air pressure |
80Kpa to 106Kpa |
| Relative Humidity |
≦95% (no condensation) |
Communication
| Communication |
RS485 |
| 485 Communication |
Support Pelco-D, Pelco-P |
| Communicate Rate |
2400 to 19200bps |
| Video Input |
4-Channel |
| Video Output |
1-Channel |
General
| Cable |
integrated cable |
| Size |
300*170*255mm |
| Weight |
15kg |
| Mounted |
desk |
Applications:
With stringent certifications, explosion proof controller is widely applying for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.
Technical Drawings:
Relative products:

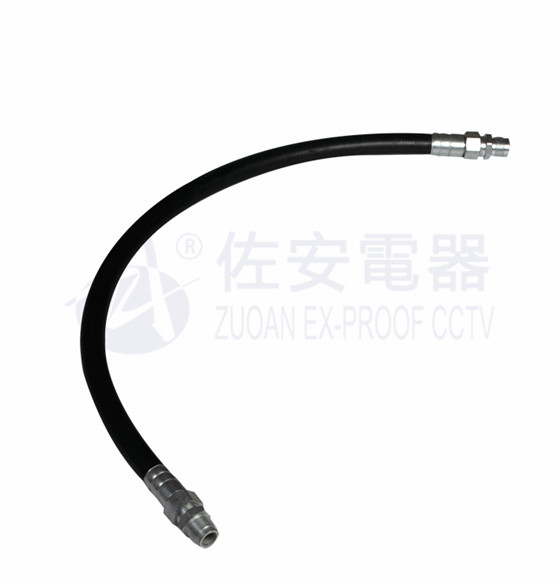

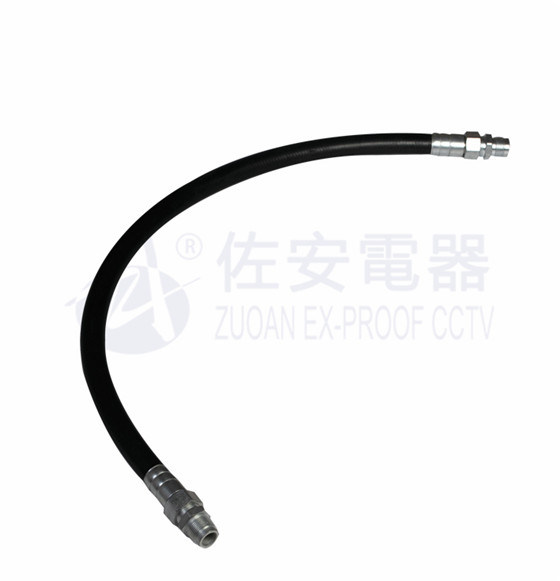

ZAJS400 Explosion Proof Monitor ZANXG Explosion Proof Cable thread tube
