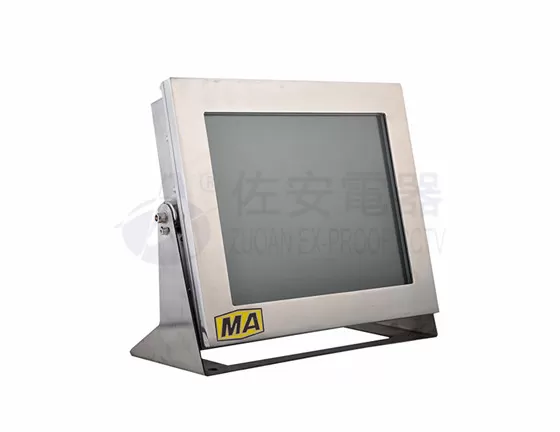

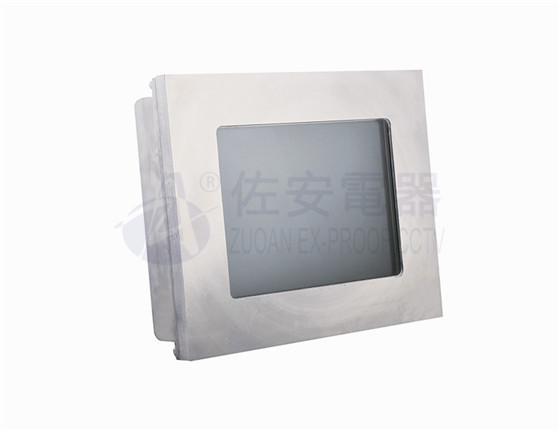

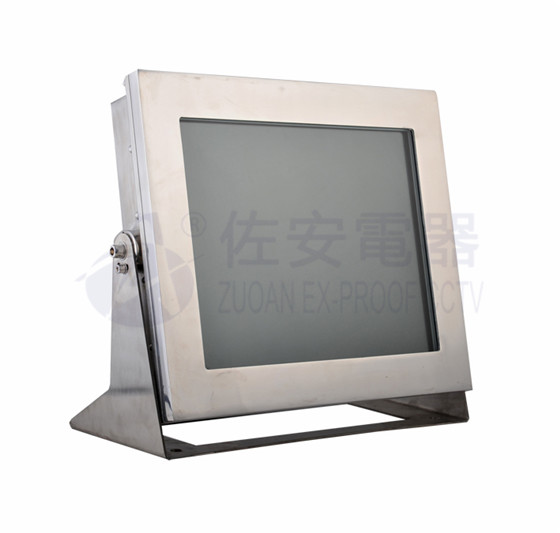

Fully Sealed 17inch LED Explosion Proof Monitor for Industry Hazardous Area

Fully Sealed 17inch LED Explosion Proof Monitor for Industry Hazardous Area

    • Fully Sealed  17inch LED  Explosion Proof Monitor for Industry Hazardous Area
    • Fully Sealed  17inch LED  Explosion Proof Monitor for Industry Hazardous Area
    • Fully Sealed  17inch LED  Explosion Proof Monitor for Industry Hazardous Area
    • Fully Sealed  17inch LED  Explosion Proof Monitor for Industry Hazardous Area
    • Fully Sealed  17inch LED  Explosion Proof Monitor for Industry Hazardous Area
  • Fully Sealed  17inch LED  Explosion Proof Monitor for Industry Hazardous Area

    Product Details:

    Place of Origin: China
    Brand Name: ZUOAN
    Certification: CNEX
    Model Number: ZAJS400

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: EXW
    Packaging Details: wooden box
    Delivery Time: in stock
    Payment Terms: 100% TT
    Supply Ability: 300 set per month
    Contact Now
    Detailed Product Description
    Features: Explosion Proof Type Screen: 17 Inch
    Material: Stainless Steel Enclosure Resolution: 1280*1024 Pixel
    Contrast: 1000:1 Cable Output: VGA Or Coaxial Cable
    Power Input: AC220V, AC24V

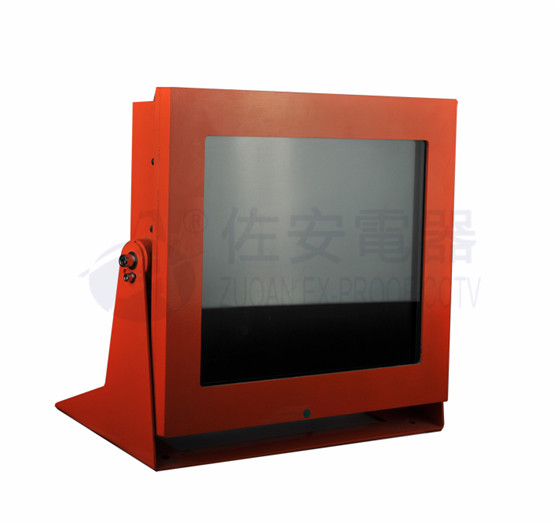

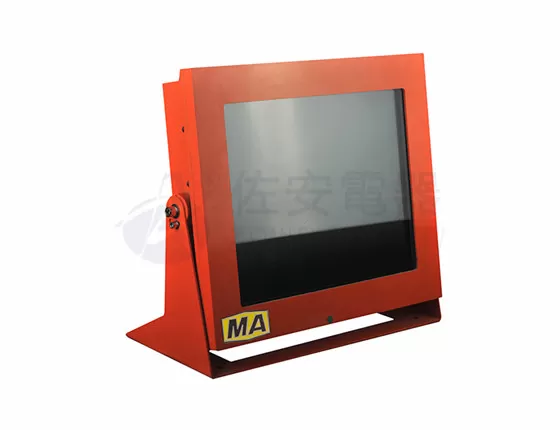

    Carbon Steel  LED 15 inch  Explosion Proof Monitor for Industry Hazardous Area



    Fully Sealed  17inch LED  Explosion Proof Monitor for Industry Hazardous Area

    Product summary:



    explosion proof monitor is the specialized equipment which is designed for the explosion proof industry TV supervision. It changed the situation that the monitor only can put the control room. It also can provide the clear and direct supervision visual, and greatly increase the flexibility of the system configuration. It has VAG interface and standard video interface, support PAL and NTSC standard.
    Display window takes the special steel flat glass, it is tough and durable, as well as make sure the visual quality. The installation of the explosion proof camera mainly is the direct display on the table and platform also can use the special bracket.



    Product Parameter:

    Explosion Proof Marking: ExdⅡBT6/DIP A21 TA, T6
    Material: stainless steel 304 crust
    Enclosure protection: IP66
    Weight: 13kg
    Outer dimension: 348*200*441mm
    Installation method: vertical display or lifting by a special bracket
    Input voltage: from DC24V
    Screen dimension: 15 inch
    Resolving rate: 1280X1024
    View angle: 170°



    Download Data Sheet Here:



    17inch Explosion Proof Monitor-ZAJS400 series data sheet.pdf



    Data sheet:



    Model ZAJS400-15
    crust carbon steel, stainless steel 304/316L
    explosion proof marking Exd II BT6 &DIP A20, TA, T6
    explosion proof certification CNEx13.4246
    application gas zone 2, dust zone 20, 21, 22
    Working temperature -40~65°C
    IP rated IP66
    Screen size 15inch LED
    Max resolution 1280*1024
    brightness 250cd/m2
    Ratio 4:3
    visible angle (H/V) 170°/160°
    display color 16.7M
    filter 3D filter
    life time 30000 hours
    compatible Samsung UI, VESATM DPM
    power input AC85-265V, (AC220V)
    working current ≤500ml
    power <50W
    video input AV or VGA
    cable 2 core power cable, 1 coaxial cable
    cable threaded hole  2 sets G3/4  (or NPT3/4)
    Net weight 13Kg
    Overall dimension 441(L) mm×200(W) mm×384mm (H)



    Applications:



    With stringent certifications, 15inch explosion proof cctv monitor is widely applying  for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.





    Technical Drawings:



    Fully Sealed  17inch LED  Explosion Proof Monitor for Industry Hazardous Area           Fully Sealed  17inch LED  Explosion Proof Monitor for Industry Hazardous Area
