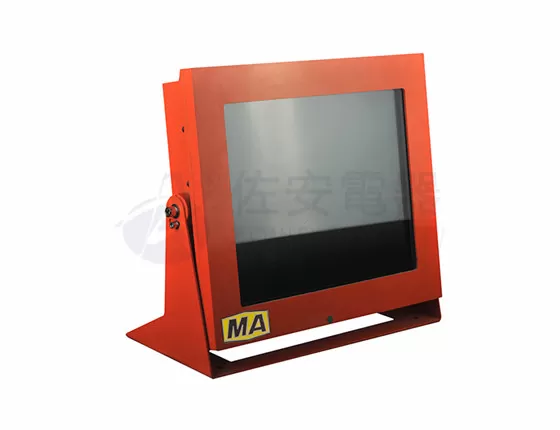

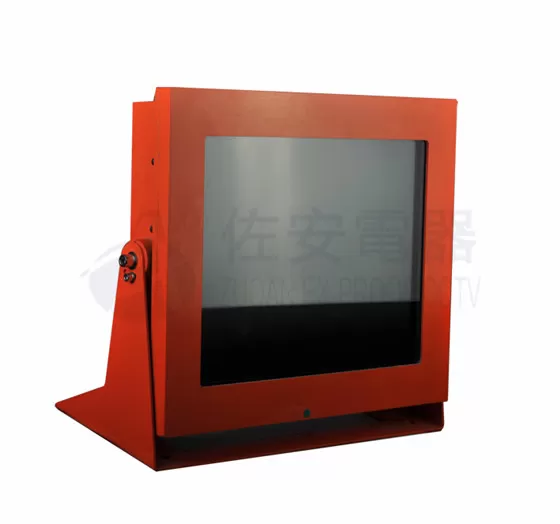

Fully Sealed 17inch Display Explosion Proof Monitor In Carbon Steel

Fully Sealed 17inch Display Explosion Proof Monitor In Carbon Steel

    • Fully Sealed  17inch Display Explosion Proof Monitor In Carbon Steel
    • Fully Sealed  17inch Display Explosion Proof Monitor In Carbon Steel
    • Fully Sealed  17inch Display Explosion Proof Monitor In Carbon Steel
    • Fully Sealed  17inch Display Explosion Proof Monitor In Carbon Steel
  • Fully Sealed  17inch Display Explosion Proof Monitor In Carbon Steel

    Product Details:

    Place of Origin: China
    Brand Name: ZUOAN
    Certification: CNEX
    Model Number: ZAJS400-Q

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: EXW
    Packaging Details: wooden box
    Delivery Time: in stock
    Payment Terms: 100% TT
    Supply Ability: 300 set per month
    Contact Now
    Detailed Product Description
    Screen: 17 Inch Material: Carbon Steel
    Certificate: CNEX Resolution: 1280*1024 Pixel
    Contrast: 1000:1 Cable Output: VGA Or Coaxial Cable
    Power Input: AC85V~AC265V, Or AC24V Power : 50W
    Brightness: 300cd/m2 Size: 473*200*396mm
    Weight: 30kg

    Carbon Steel  17inch  Explosion Proof Monitor for Industry Hazardous Area

    Fully Sealed  17inch Display Explosion Proof Monitor In Carbon Steel
    Product summary:

    Explosion proof CCTV monitor is the specialized equipment which is designed for the explosion proof industry TV supervision. Explosion proof monitor has carbon steel cavity.  It also can provide the clear and direct supervision visual, and greatly increase the flexibility of the system configuration. It has VAG interface and standard video interface, support PAL and NTSC standard.
    Display window takes the special steel flat glass, it is tough and durable, as well as make sure the visual quality. The installation of the explosion proof camera mainly is the direct display on the table and platform also can use the special bracket.


    Product Parameter:
    Explosion Proof Marking: ExdⅡBT6/DIP A21 TA, T6
    Material: Carbon Steel
    Enclosure protection: IP66
    Weight: 30kg
    Installation method: vertical display or lifting by a special bracket
    Input voltage: AC220V, AC24V
    Screen dimension: 17 inch
    Resolving rate: 1280X1024
    View angle: 170°



    Data sheet:
    ZAJS400 17inch explosion proof monitor.pdf

    Certificate

    Certificate MarkExdⅡB T6 Gb / DIP A20 TA, T6
    Certificate NoCNEx13.4246
    StandardsQ/320412ZAF014-2013


    Mechanical

    HousingStainless steel 304 or 316L
    IPIP66
    Cable thread hole1pcs G3/4 or NPT3/4


    Electrical

    VoltageAC85V~AC265V or DC24Vor AC24V
    Power50W
    Surge ProtectOptional, TVS6000V surge protect


    Ambient

    Ambient temperature-25 to +60℃ / -45 to +80℃
    Air pressure80Kpa to 106Kpa
    Relative Humidity≦95% (no condensation)


    Function

    Dot Pitch0.24825mm*0.24825mm
    Resolution1280*1040P
    Brightness300cd/m2
    Contrast1000:01:00
    Response Time14ms (G. To G)
    Color16.7M
    Line Frequency31.5-60KHz
    Field Frequency56-75Hz, Flick-free
    View DegreeHorizontal 176°
    Connector PortVGA,or BNC, S-VHS, RGB, CVBS


    General

    Cableintegrated cable
    Size473*200*396mm
    Weight30kg
    Mounteddesk



    Applications:

    With stringent certifications, 15inch explosion proof cctv monitor is widely applying  for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.


    Technical Drawings:

     Fully Sealed  17inch Display Explosion Proof Monitor In Carbon Steel

    Relative products:

    Fully Sealed  17inch Display Explosion Proof Monitor In Carbon Steel Fully Sealed  17inch Display Explosion Proof Monitor In Carbon Steel

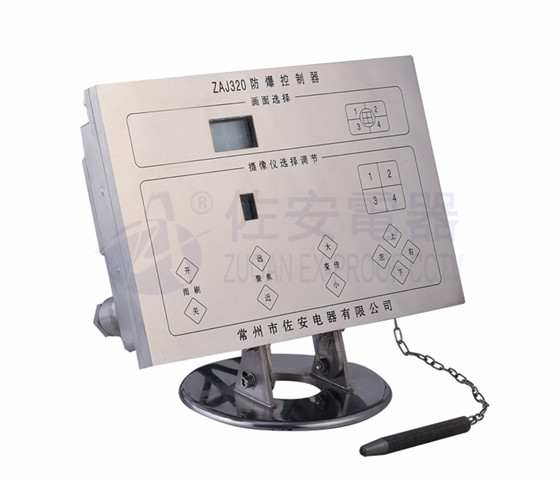

                         ZAJ320 Exd Controller                           ZAJS400-Q Carbon steel type Monitor
