Flame Proof Stainless Steel IP68 Electrical Explosion Proof Junction Box

Basic Information
Place of Origin: China
Brand Name: ZUOAN
Certification: CNEX
Model Number: ZAJXD4
Minimum Order Quantity: 1 set
Price: 0-80USD
Packaging Details: firm carton
Delivery Time: in stock
Payment Terms: 100% TT
Supply Ability: 1000 set per month
Ingress: IP68 Enclosure: Stainless Steel 304/316L
Cable Hole: 4 Sets Of G3/4

Stainless Steel IP68 Electrical Explosion Proof Junction Box



Main features:

Pressure: 80KPa~106KPa
Ambient temperature: –25°C~+60°C
Relative humidity: less than 95%(+25°C)
Ex-proof marking: ExdⅡCT6
Enclosure degree: IP68
Working voltage: AC220V(198-242V)
Wiring mouth: 4 access
Max connection cable: 7core cable
Max current: 21A
Overall dimension: 197mmX 197mmX 85mm
304 stainless steel(used in chemical industry,outdoor,acid and alkali circumstances)
NW: 3.5 Kg

Flame Proof Stainless Steel IP68 Electrical Explosion Proof Junction Box 0


Applications:

With stringent certifications, explosion proof junction box, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.



EXPROOF JUNCTION BOX ZAJXD4.pdf



Data Sheet:

Model ZAJXD-S
crust stainless steel 304
explosion proof marking Exd II CT6 Gb/ Ex tD A21 IP68 T80℃
explosion proof certification CNEx16.1481
application gas zone 1, zone 2
IP rated IP68
terminal block 6 pairs
water seal O-ring Yes
cable threaded hole  4 sets G3/4  (or NPT3/4)
Net weight 3.5Kg
Overall dimension 187*187*84mm




Details images:

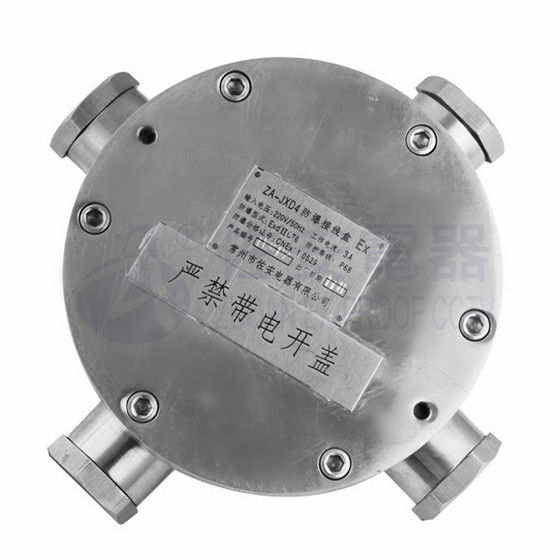

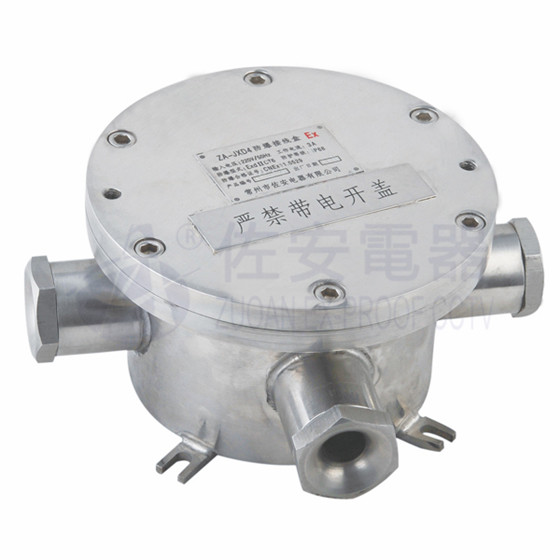

Flame Proof Stainless Steel IP68 Electrical Explosion Proof Junction Box 1Flame Proof Stainless Steel IP68 Electrical Explosion Proof Junction Box 2

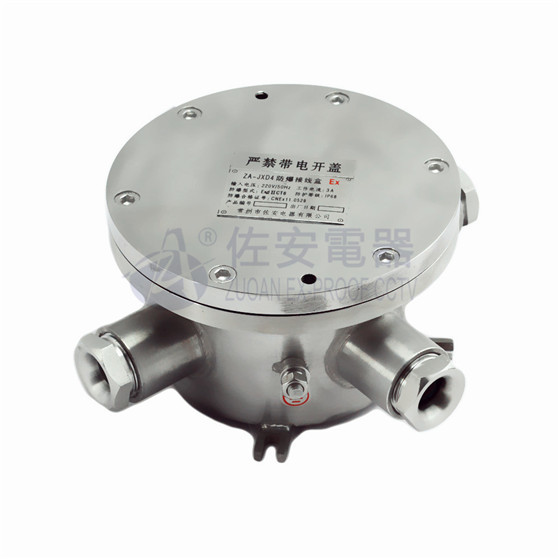

Flame Proof Stainless Steel IP68 Electrical Explosion Proof Junction Box 3   Flame Proof Stainless Steel IP68 Electrical Explosion Proof Junction Box 4
