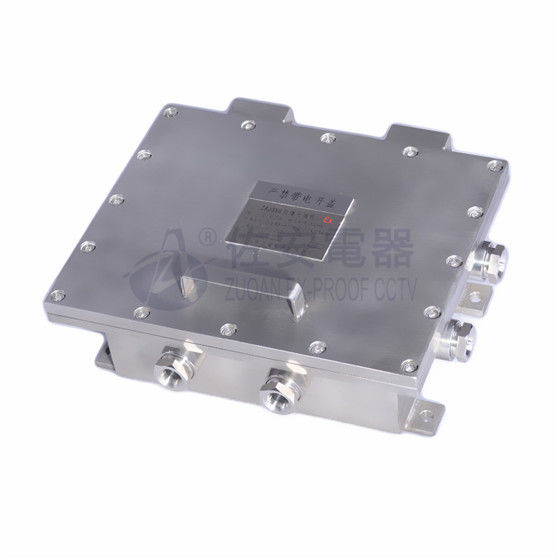

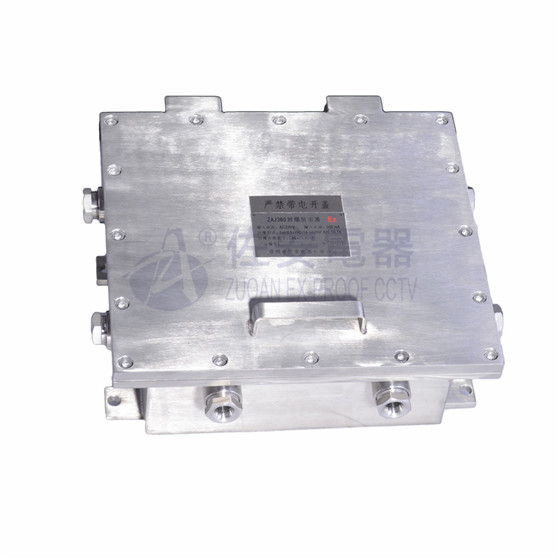

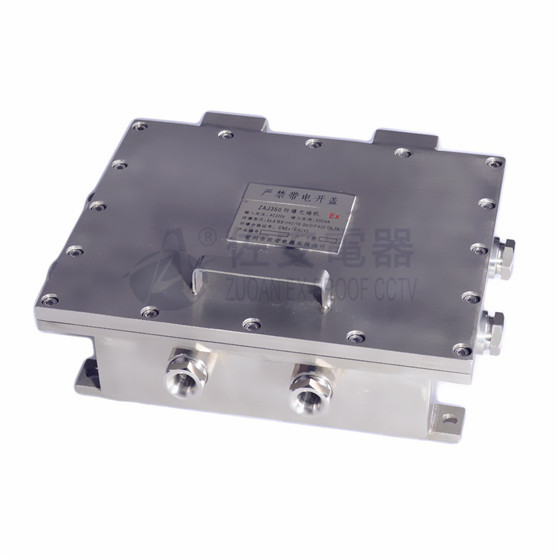

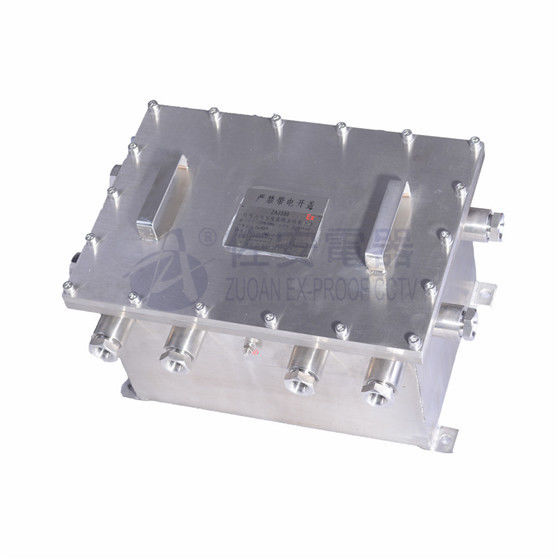

Flame Proof Explosion Proof Box For NVR, DVR, Power Converter

Flame Proof Explosion Proof Box For NVR, DVR, Power Converter

    • Flame Proof Explosion Proof Box For NVR, DVR, Power Converter
    • Flame Proof Explosion Proof Box For NVR, DVR, Power Converter
    • Flame Proof Explosion Proof Box For NVR, DVR, Power Converter
    • Flame Proof Explosion Proof Box For NVR, DVR, Power Converter
  • Flame Proof Explosion Proof Box For NVR, DVR, Power Converter

    Product Details:

    Place of Origin: China
    Brand Name: ZUOAN
    Certification: CNEX
    Model Number: ZAJ330

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 0-300USD
    Packaging Details: firm carton
    Delivery Time: in stock
    Payment Terms: 100% TT
    Supply Ability: 1000 set per month
    Contact Now
    Detailed Product Description
    Ingress: IP55 Enclosure: Stainless Steel 304/316L
    Cable Hole: 12 Sets Of G3/4 (NPT3/4) Explosion Proof Enclosure: To Load DVR, NVR, Power Converter

    Flame Proof Explosion Proof Box For NVR, DVR, Power Converter



    Main features:Flame Proof Explosion Proof Box For NVR, DVR, Power Converter

    Pressure: 80KPa~106KPa
    Ambient temperature: –40°C~+65°C
    Relative humidity: less than 95%(+25°C)
    Ex-proof marking: ExdⅡBT5
    Enclosure degree: IP55
    Working voltage: AC85~265V, AC220V
    Wiring mouth: 12 sets *G3/4  (or NPT3/4)



    Descirption:

    The ZAJ330 Explosion Proof  enclosure for DVR, NVR, Decoder can controll explosion proof camera and pan/tilt according to the demand of the main engine. The explosion proof function totally meets the standard of the mechanical and electronic demand of China explosion proof GB3836-2000. It can be applicable for the circumstances of volatile gas, such as Ethylene, Town gas.

    Flame Proof Explosion Proof Box For NVR, DVR, Power Converter Applications:

    With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.

    Data sheet:

    Model ZAJ330
    crust carbon steel, stainless steel 304/316L
    explosion proof marking Exd II BT5
    explosion proof certification CNEx13.2137
    application gas zone 2
    IP rated IP55
    can load 4/8/16 channel DVR, power adaptor
    water seal O-ring Yes
    cable threaded hole  12 sets G3/4  (or NPT3/4)
    Net weight 17Kg
    Overall dimension 388*298*225mm
    Inner installation dimension 300*200*105mm
