|Place of Origin:||Changzhou, China|
|Minimum Order Quantity:||1pcs|
|Packaging Details:||firm carton|
|Delivery Time:||5-8 work days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||30 pcs per week|
|Material:||Stainless Steel||Cooling Media:||Compressed Air|
|Dimension:||356*138*158mm||Cable Hole:||2* G3/4 Gland|

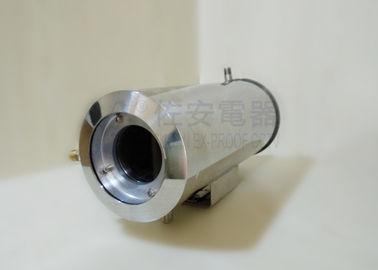

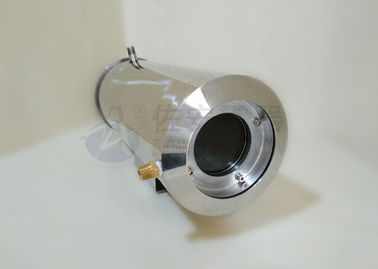

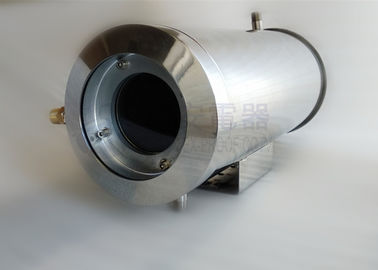

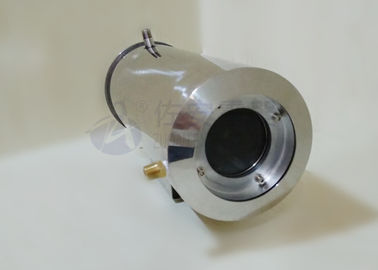

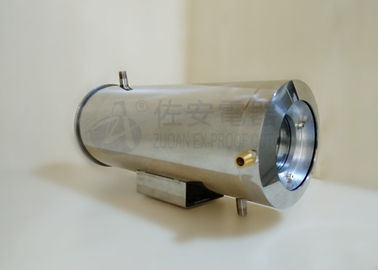

Water Cooling Stainless Steel Heat Resistant Camera Jacket for High Temperature Area
ZASC001 is a commercial type water cooling heat resist camera jacket, which housing is made of dual stainless steel material. The jacket need to connect wth circulate running water, and its front need to connect with compressed air to blow the front window. The water runnng inside of the housing, so as to keep the camera working in a safety operation temperature. The air will always blow so as to keep the front window clean.
The ZASC001 water cooling jacket has usable area of 270*80*80mm, which can load zoom camera, varifocus box camera with lens. ZASC001 can be mounted on wall bracket or pole. If the installation site doesn't has running water or compressed air pipeline, client can choose our ZAEC003 thermoelectric cooler jacket.
The ZASC001 water cooling jacket can apply for high temperature area, such as oven, furnace, steel mills, glass processing line, power industry, cement industry, rotary kiln, clinker cooler, burner, grate firing furnace, and waste combustion furnace.
Data sheet download:
|Apply area||furnace, steel mills factory, power factory, high temperature working area|
|power input||AC85-265V, AC24V, DC12V, POE|
|Material||doubel layer of Stainless steel 201|
|Cooling type||compressed air|
|air hole||1 set G1/2 or NPT1/2|
|cable hole||2 sets G3/4 (or NPT3/4)|
|Inner size for camera||270*80*80mm|
Other relative cooling type housing:
ZAEC003 thermoelectric cooler jacket ZAFC001 air cooling jacket
