Air Cooling Explosion Proof Heat Resistant Camera Housing For Furnace

Air Cooling Explosion Proof Heat Resistant Camera Housing For Furnace

Air Cooling Explosion Proof Heat Resistant Camera Housing For Furnace

Brand Name: ZUOAN
Model Number: ZAFC106-S-F
Price: 0-600 USD
Payment Terms: 100% TT before shipment
Supply Ability: 1000 set per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CNEX
Ingress:
IP68
Housing:
Dual Layer Of Stainless Steel 304/316L
Weight:
9.1 KG
Cooling Media:
Compressurized Air
Air Cooling:
Bear -25-150 °C
Packaging Details:
firm carton or wooden box
Highlight:

salty resistant camera

,

corrosion proof camera

,

marine camera

Product Description

Air Cooling Explosion Proof Heat Resistant Camera Housing For Furnace 0Air Cooling Explosion Proof  Heat Resistant Camera Housing For Furance

Main features:

*CNEx certificated
* Explosion proof certification No.: CNEx13.4248
*Adopts two layers of stainless steel 304 or 316L for high temperature resistant
*Surface finish: electropolished or corrosion resistant paint finish
*IP68
*2 cable glands
*Tempered glass with nanometer paint film
*Cooling way: compress air
* temperature resist: -15 to 150 degree centigrade
* inner size for camera:260*80*80mm
* net weight:9.1Kg
*applicable for the extreme circumstances with explosive gas or dust, like oven, furnace, steel mills, glass processing line.
*installation: mounted on ceiling, wall with pan &tilt, brackets.

Download Data Sheet Here:



Air Cooling Explosion Proof  Heat Resistant Camera Housing For Furance Description:

ZAFC106-S-F, it is featured as air cooling explosion proof heat resistant camera housing. It takes the double stainless stee layer. Its cooling media can be compressed cooing air. It suits for the circumstances with high temperature, and with explosive gas and dust, like oven, furnace, steel mills, and glass processing line. The inner size for camera is 260*80*80mm,  and can install any kinds of CCD camera or integration camera. It is used in a wide range, the enclosure protection is high. It is widely used in steel, glass factory, furnance monitoring system.

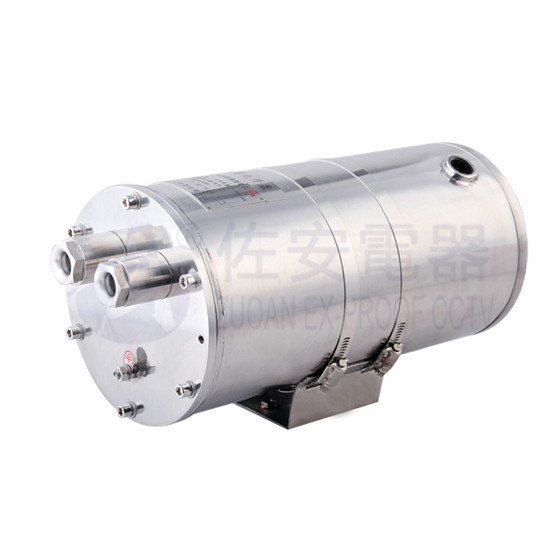

Air Cooling Explosion Proof Heat Resistant Camera Housing For Furnace 1



Details images:

Air Cooling Explosion Proof Heat Resistant Camera Housing For Furnace 2

Data sheet:

Model ZAFC106-S-F
Explosion proof marking Exd II CT5, DIP A20, TA, T6
Explosion proof certification CNEx13.4248
Apply area

Gas zone 1, 2; Dust Zone 20, 21,22

furnace, steel mills factory, power factory
IP rated IP68
power input AC85-265V, AC24V
Material doubel layer of Stainless steel 304
Cooling type compressed air
air hole 1 set G1/2 or NPT1/2
cable hole 2 sets G3/4 (or NPT3/4)
Heat resist -25~150°C
Netweight 9.1Kg
Inner size for camera 260*80*80mm
overall dimension 388*163*185mm



Other products:

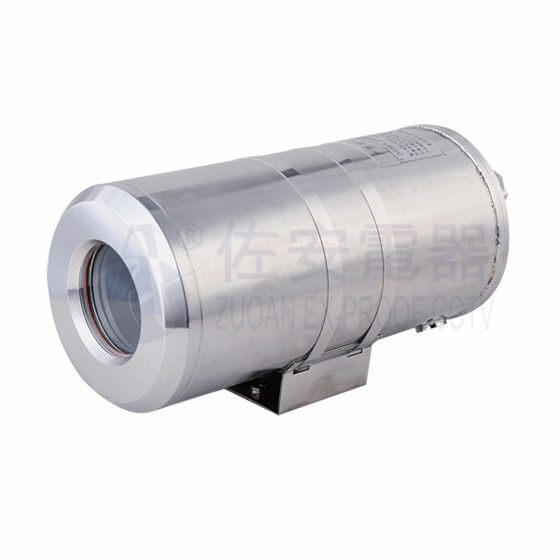

Air Cooling Explosion Proof Heat Resistant Camera Housing For Furnace 3

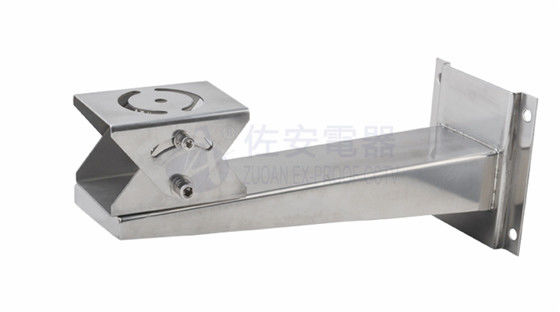

Air Cooling Explosion Proof Heat Resistant Camera Housing For Furnace 4
