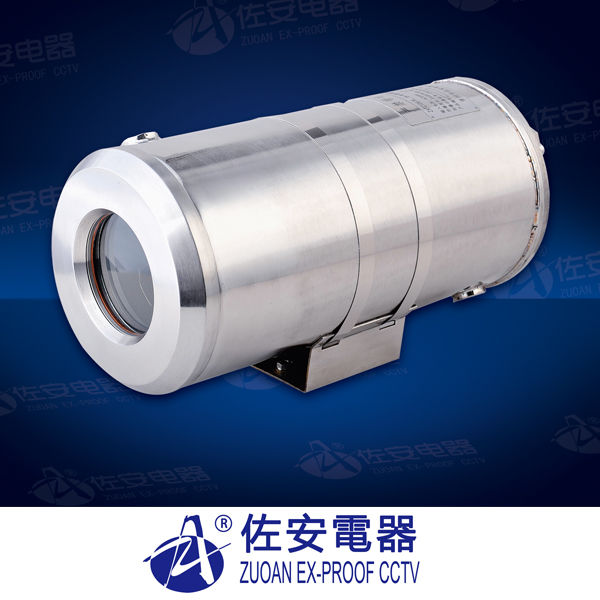

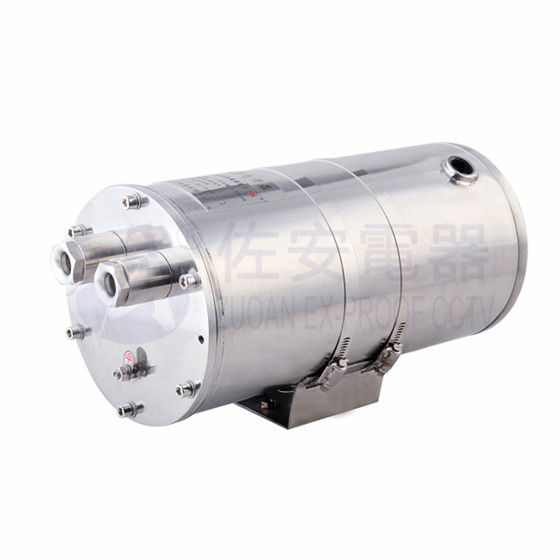

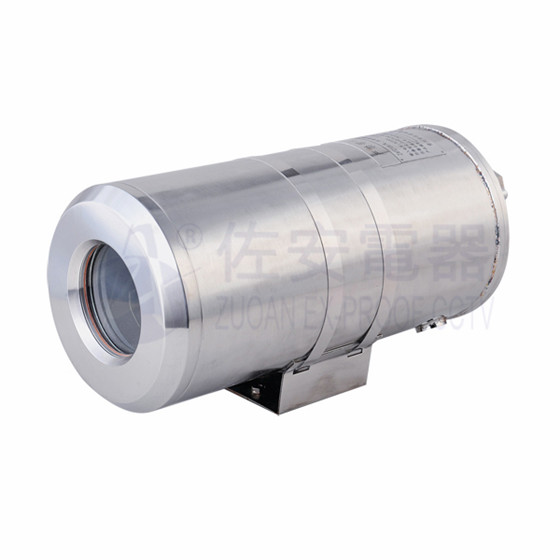

Stainless Steel High Temperature Furnace Applied 150 °C Heat Resistant Camera

Stainless Steel High Temperature Furnace Applied 150 °C Heat Resistant Camera

    • Stainless Steel High Temperature Furnace Applied 150 °C Heat Resistant Camera
    • Stainless Steel High Temperature Furnace Applied 150 °C Heat Resistant Camera
    • Stainless Steel High Temperature Furnace Applied 150 °C Heat Resistant Camera
    • Stainless Steel High Temperature Furnace Applied 150 °C Heat Resistant Camera
    • Stainless Steel High Temperature Furnace Applied 150 °C Heat Resistant Camera
  • Stainless Steel High Temperature Furnace Applied 150 °C Heat Resistant Camera

    Product Details:

    Place of Origin: China
    Brand Name: ZUOAN
    Certification: CNEX
    Model Number: ZAFC106

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 0-600 USD
    Packaging Details: firm carton or wooden box
    Delivery Time: in stock
    Payment Terms: 100% TT before shipment
    Supply Ability: 1000 set per month
    price term: EXW price
    Contact Now
    Detailed Product Description
    Type: Analog Camera Style: Box Camera
    Sensor: CCD Technology: Heat Resistant
    Special Features: Heat Resistant Ingress: IP68
    Housing: Dual Layer Of Stainless Steel 304/316L Camera: Analog Camera, Metwork Camera
    Weight: 9.1 KG Cooling Media: Water Or Air
    Air Cooling: Bear -25-150 °C

    Stainless Steel High Temperature Furnace Applied 150 °C Heat Resistant Camera



    Main features:

    Stainless Steel High Temperature Furnace Applied 150 °C Heat Resistant Camera

    ·CNEx certificated
    ·Adopts two layers of stainless steel 304 or 316L for high temperature resistant
    ·Surface finish: electropolished or corrosion resistant paint finish
    ·IP67
    ·2 cable glands
    ·Tempered glass with nanometer paint film
    ·Cooling way: compress air or auto running water
    ·applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.

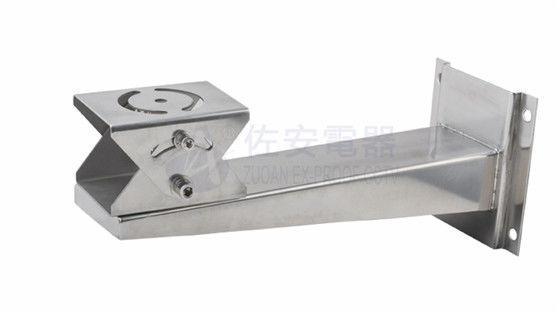

    ·installation: mounted on ceiling, wall with pan &tilt, brackets.
    ·optional accessories: lens decoder, auto-heating,
    ·Output: AV/optical fiber/twisted pair



    Description:

    ZAFC106 explosion proof heat resistant camera takes the double stainless steel, Dissection can be water, cold air and other cool media. It suits for the circumstances with high temperature, and with explosive gas and dust. The inner construction is broad, and can install any kinds of CCD camera or integration camera. It is used in a wide range, the enclosure protection is high. It is widely used in steel, glass factory, furnance monitoring system.

    Stainless Steel High Temperature Furnace Applied 150 °C Heat Resistant Camera



    Data sheet:

    Model ZAFC106-S-F
    Explosion proof marking Exd II CT5, DIP A20, TA, T6
    Explosion proof certification CNEx13.4248
    Apply area

    Gas zone 1, 2; Dust Zone 20, 21,22

    furnace, steel mills factory, power factory

    IP rated IP68
    power input AC85-265V, AC24V
    Material doubel layer of Stainless steel 304
    Cooling type compressed air
    air hole 1 set G1/2 or NPT1/2
    cable hole 2 sets G3/4 (or NPT3/4)
    Heat resist -25~150°C
    Netweight 9.1Kg
    Inner size for camera 260*80*80mm
    overall dimension 388*163*185mm

    Details images:

    Stainless Steel High Temperature Furnace Applied 150 °C Heat Resistant Camera
