2MP 30X Explosion Proof Dome Camera With Alarm, Audio Input and Output

2MP 30X Explosion Proof Dome Camera With Alarm, Audio Input and Output

    • 2MP 30X Explosion Proof Dome Camera With Alarm, Audio Input and Output
    • 2MP 30X Explosion Proof Dome Camera With Alarm, Audio Input and Output
    • 2MP 30X Explosion Proof Dome Camera With Alarm, Audio Input and Output
    • 2MP 30X Explosion Proof Dome Camera With Alarm, Audio Input and Output
  • 2MP 30X Explosion Proof Dome Camera With Alarm, Audio Input and Output

    Product Details:

    Place of Origin: Changzhou China
    Brand Name: ZUOAN
    Certification: CNEX
    Model Number: ZAT630

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 1000USD-2200USD
    Packaging Details: firm carton
    Delivery Time: 5-8 work days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal
    Supply Ability: 50pcs per week
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304, 316L Camera Resolution: 1920*1080
    Explosion-Proof: ExdⅡC T6 Gb/Ext DA21 IP68 T80°C Certificate No.: CNEx15.2504X
    Weather Proof: IP68 Zoom: 30X Optical
    PTZ Station: 360° Continuously Alarm Input: 2-channel/ 7-channel
    Alarm Output: 1-channel, Action With Alarm Audio Input: 1 Mic In/Line In Interface
    Audio Output: 1 Audio Output Interface Power: AC24V Or AC85-265V

    2MP 30X Explosion Proof Dome Camera With Alarm, Audio Input and Output

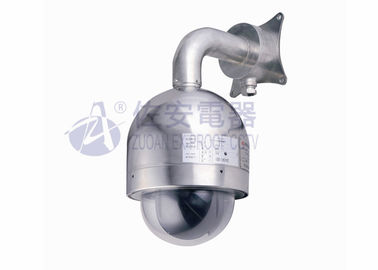

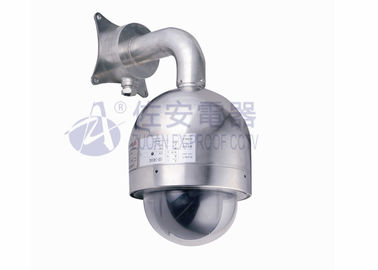

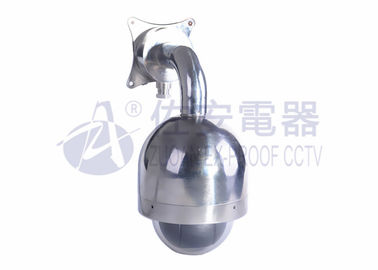

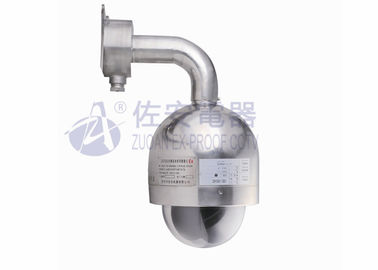

    2MP 30X explosion proof dome camera summary:

    ZAT630 is new developed high speed type explosion proof dome camera. Its resolution has reach to 2MP, which is 30X zoom camera. Its enclosure is made of stainless steel 304 or 316L material. This product has get the explosion proof certificate, and Its weather proof rate is IP68. With PTZ station, it can realise 360° continuous rotation. This type explosion proof dome camera supports alarm & audio input and output. Equipped with sunshiled, it can protect shock and sunlights. The explosion proof dome camera is widely apply for some coner area, so as to get intelligent image as controller required.


    2MP 30X explosion proof dome camera features:


    • get CNEx explosion proof certficate
    • weather proof is IP68
    • adopts stainless steel 304 or 316L enclosure
    • 2MP zoom camera
    • 36X optical
    • low illumination reach to color 0.05Lux , BW 0.005Lux
    • 4.3-129mm focal length
    • PTZ auto control
    • 255 preset
    • support alarm, audio input and output
    • wide voltage input: 85-265V, AC24V
    • optional sunshiled cover for hot summer


    2MP 30X explosion proof dome camera application:

    Explosion proof dome camera is fit for hazardous coner area, hazardous location or explosive atmospheres, such as rig floor, gas station, oil refining, chemical factory, printing, papermaking, textile industry and coating industry. With stainless steel 316L crust, this explosion proof turret camera can also apply for marine area. With alarm, audio function, it is compatible for client software. More details, please contact us.

    2MP 30X Explosion Proof Dome Camera With Alarm, Audio Input and Output2MP 30X Explosion Proof Dome Camera With Alarm, Audio Input and Output

    2MP 30X explosion proof dome camera specifications:

    Certificate

    Certificate MarkExdⅡC T6 Gb/Ext DA21 IP68 T80°C
    Certificate NoCNEx15.2504X
    StandardsQ/320412 ZAF026-2015

    Mechanical

    HousingStainless steel 304 or 316L
    IPIP68
    Cable thread hole1pcs G3/4 or NPT3/4
    WiperNo

    Electrical

    VoltageAC85V~AC265V or DC24Vor AC24V
    Power25W /35W (with thermostat)
    Surge ProtectOptional, TVS6000V surge protect

    Ambient

    Ambient temperature-25 to +60℃
    Air pressure80Kpa to 106Kpa
    Relative Humidity≦95% (no condensation)

    Communication

    Communicationsupport analog video output
    485 CommunicationSupport Pelco-D, Pelco-P
    Communicate Rate2400 to 19200bps

    Pan & Tilt

    Horizontal360°
    SpeedHorizontal 0.1-300°/s, Vertical 0.1-250°/s
    Vertical-90 to +0
    Cruise ScanSupport
    Keep watchSupport
    Preset64/128/255/300
    Resume functionSupport
    Auto CruiseSupport
    Auto PatternSupport
    Auto ScanSupport

    Alarm

    Alarm Input2-channel/ 7-channel
    Alarm Output1-channel, action with alarm
    Action with AlarmScreen scratch, Preset, Pattern, Cruise, SD record, email
    Intelligent AlarmAudio detective, move detective, video shield, network interrupt, IP address conflict, storage full, storage error, illegal access

    Audio

    Audio InputAudio input (LINE input, MIC input), audio peak:2-2.4Vp-p,output impedance: 1KΩ+10%
    Audio OutputLine-level impedance 600Ω

    Network

    Network Interface

    1pcs of RJ45, support 10M/100M/1000M

    Video Compression

    H.264 , H.265 / MJPEG

    Audio Compression

    G.711-a / G7.11mu /MP2L2/PCM

    Voice IntercomSupport
    StreamSupport three streams
    Internet Protocol

    IPv4/IPv6,HTTP,HTTPS,802.1x,
    Qos,FTP,SMTP,UPnP,SNMP
    ,DNS,DDNS,NTP,RTSP,RTP,TCP,
    UDP,IGMP,ICMP,DHCP,PPPoE

    Time DisplaySupport
    StandardONVIF, CGI, GB/T28181, PISA
    IE browserSupport IE7 or above, Google, Firefox, Apple
    SecurityPassword protection, Multiple access control

    Camera

    Image Sensor1/2.8" interline-transfer CCD
    Effective pixel2MP,
    Min. IlluminationColor 0.05Lux B/W: 0.005Lux
    Day&nightAuto/ Color/ BW
    S/N ratio>52dB(AGC off)
    Gainoff/ lower/ higher
    White BalanceAuto/ Manual/ Auto tracking white balance/ indoor/outdoor/ Sodium Lamp/ Fluorescent Lamp
    3D DNRSupport
    BLCON/OFF
    Image settingMirror, Saturation, Brightness, Contrast, Sharpness adjustable
    Optical zoom20X / 30X
    View AngleHorizontal 65.5° to 2.11

    General

    Cableintegrated cable
    Size213*213*570mm
    Weight15kg
    Mountedwall, pole
    Wall bracketZAZ630B


    ZAT630 2MP 30X explosion proof dome camera data sheet.pdf
