2MP 30X Explosion Proof Dome Camera With Alarm, Audio Input and Output

Basic Information
Place of Origin: Changzhou China
Brand Name: ZUOAN
Certification: CNEX
Model Number: ZAT630
Minimum Order Quantity: 1 set
Price: 1000USD-2200USD
Packaging Details: firm carton
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal
Supply Ability: 50pcs per week
Material: Stainless Steel 304, 316L Camera Resolution: 1920*1080
Explosion-Proof: ExdⅡC T6 Gb/Ext DA21 IP68 T80°C Certificate No.: CNEx15.2504X
Weather Proof: IP68 Zoom: 30X Optical
PTZ Station: 360° Continuously Alarm Input: 2-channel/ 7-channel
Alarm Output: 1-channel, Action With Alarm Audio Input: 1 Mic In/Line In Interface
Audio Output: 1 Audio Output Interface Power: AC24V Or AC85-265V

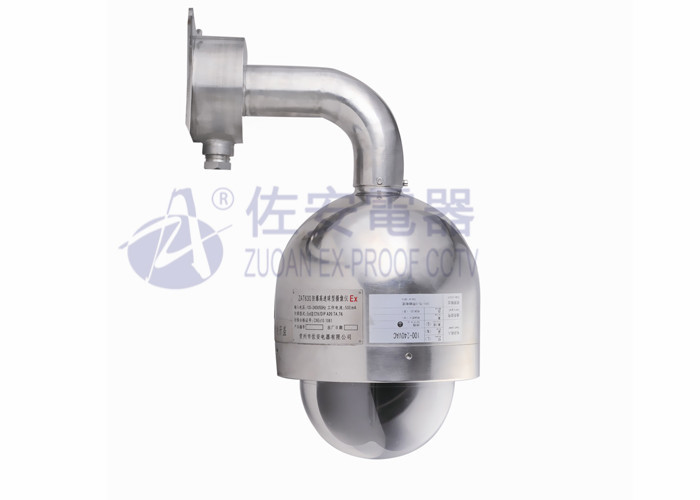

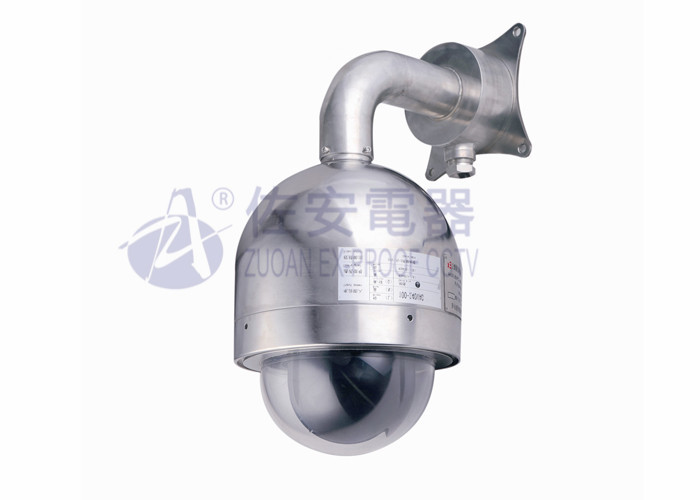

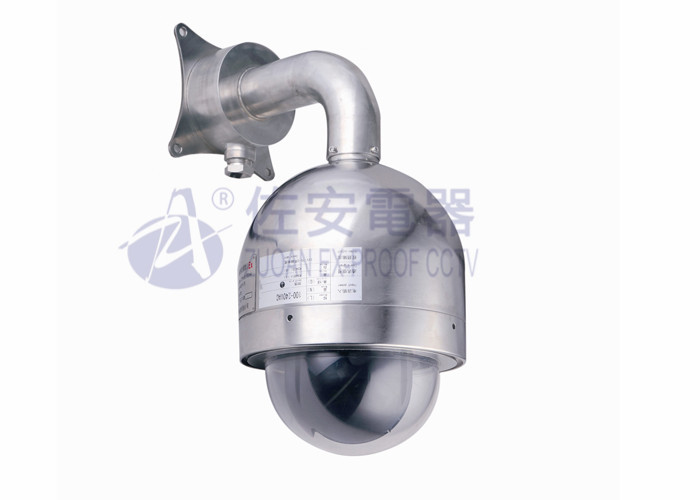

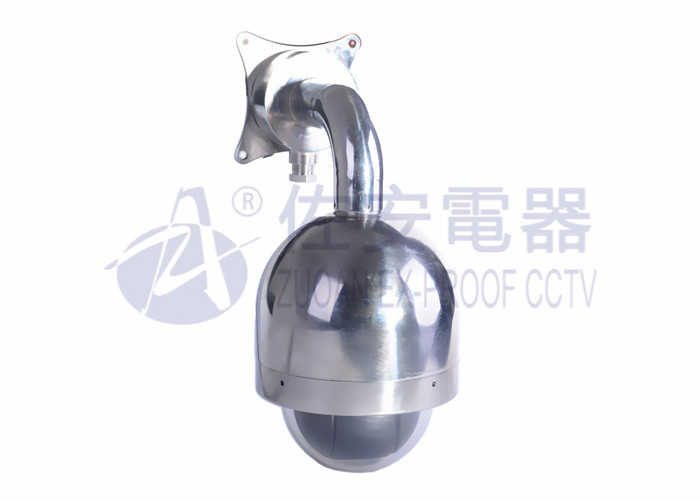

2MP 30X Explosion Proof Dome Camera With Alarm, Audio Input and Output

2MP 30X explosion proof dome camera summary:

ZAT630 is new developed high speed type explosion proof dome camera. Its resolution has reach to 2MP, which is 30X zoom camera. Its enclosure is made of stainless steel 304 or 316L material. This product has get the explosion proof certificate, and Its weather proof rate is IP68. With PTZ station, it can realise 360° continuous rotation. This type explosion proof dome camera supports alarm & audio input and output. Equipped with sunshiled, it can protect shock and sunlights. The explosion proof dome camera is widely apply for some coner area, so as to get intelligent image as controller required.


2MP 30X explosion proof dome camera features:



2MP 30X explosion proof dome camera application:

Explosion proof dome camera is fit for hazardous coner area, hazardous location or explosive atmospheres, such as rig floor, gas station, oil refining, chemical factory, printing, papermaking, textile industry and coating industry. With stainless steel 316L crust, this explosion proof turret camera can also apply for marine area. With alarm, audio function, it is compatible for client software. More details, please contact us.

2MP 30X Explosion Proof Dome Camera With Alarm, Audio Input and Output 02MP 30X Explosion Proof Dome Camera With Alarm, Audio Input and Output 1

2MP 30X explosion proof dome camera specifications:

Certificate

Certificate MarkExdⅡC T6 Gb/Ext DA21 IP68 T80°C
Certificate NoCNEx15.2504X
StandardsQ/320412 ZAF026-2015

Mechanical

HousingStainless steel 304 or 316L
IPIP68
Cable thread hole1pcs G3/4 or NPT3/4
WiperNo

Electrical

VoltageAC85V~AC265V or DC24Vor AC24V
Power25W /35W (with thermostat)
Surge ProtectOptional, TVS6000V surge protect

Ambient

Ambient temperature-25 to +60℃
Air pressure80Kpa to 106Kpa
Relative Humidity≦95% (no condensation)

Communication

Communicationsupport analog video output
485 CommunicationSupport Pelco-D, Pelco-P
Communicate Rate2400 to 19200bps

Pan & Tilt

Horizontal360°
SpeedHorizontal 0.1-300°/s, Vertical 0.1-250°/s
Vertical-90 to +0
Cruise ScanSupport
Keep watchSupport
Preset64/128/255/300
Resume functionSupport
Auto CruiseSupport
Auto PatternSupport
Auto ScanSupport

Alarm

Alarm Input2-channel/ 7-channel
Alarm Output1-channel, action with alarm
Action with AlarmScreen scratch, Preset, Pattern, Cruise, SD record, email
Intelligent AlarmAudio detective, move detective, video shield, network interrupt, IP address conflict, storage full, storage error, illegal access

Audio

Audio InputAudio input (LINE input, MIC input), audio peak:2-2.4Vp-p,output impedance: 1KΩ+10%
Audio OutputLine-level impedance 600Ω

Network

Network Interface

1pcs of RJ45, support 10M/100M/1000M

Video Compression

H.264 , H.265 / MJPEG

Audio Compression

G.711-a / G7.11mu /MP2L2/PCM

Voice IntercomSupport
StreamSupport three streams
Internet Protocol

IPv4/IPv6,HTTP,HTTPS,802.1x,
Qos,FTP,SMTP,UPnP,SNMP
,DNS,DDNS,NTP,RTSP,RTP,TCP,
UDP,IGMP,ICMP,DHCP,PPPoE

Time DisplaySupport
StandardONVIF, CGI, GB/T28181, PISA
IE browserSupport IE7 or above, Google, Firefox, Apple
SecurityPassword protection, Multiple access control

Camera

Image Sensor1/2.8" interline-transfer CCD
Effective pixel2MP,
Min. IlluminationColor 0.05Lux B/W: 0.005Lux
Day&nightAuto/ Color/ BW
S/N ratio>52dB(AGC off)
Gainoff/ lower/ higher
White BalanceAuto/ Manual/ Auto tracking white balance/ indoor/outdoor/ Sodium Lamp/ Fluorescent Lamp
3D DNRSupport
BLCON/OFF
Image settingMirror, Saturation, Brightness, Contrast, Sharpness adjustable
Optical zoom20X / 30X
View AngleHorizontal 65.5° to 2.11

General

Cableintegrated cable
Size213*213*570mm
Weight15kg
Mountedwall, pole
Wall bracketZAZ630B


ZAT630 2MP 30X explosion proof dome camera data sheet.pdf
