| Place of Origin: | China |
|---|---|
| Brand Name: | ZUOAN |
| Certification: | CNEX |
| Model Number: | ZAT680 |
| Minimum Order Quantity: | 1 set |
| Price: | 0-5000 USD |
| Packaging Details: | firm carton or wooden box |
| Delivery Time: | in stock |
| Payment Terms: | 100% TT before shipment |
| Supply Ability: | 1000 set per month |
| Type: | Digital Camera | Style: | Dome Camera |
|---|---|---|---|
| Sensor: | CMOS | Technology: | Infrared |
| Special Features: | Vandal-proof | Ingress: | IP68 |
| Housing: | Stainless Steel 304/316L | Preset Patrol: | 128 Points |
| Camera: | 2.0MP 20X Optical Zoom Camera | Weight: | 16KG |
| Pan And Tilt: | 360 Degree Auto Tracking | Infrared Light: | 60m Night Vision, Made In Germany OSRAM Brand |

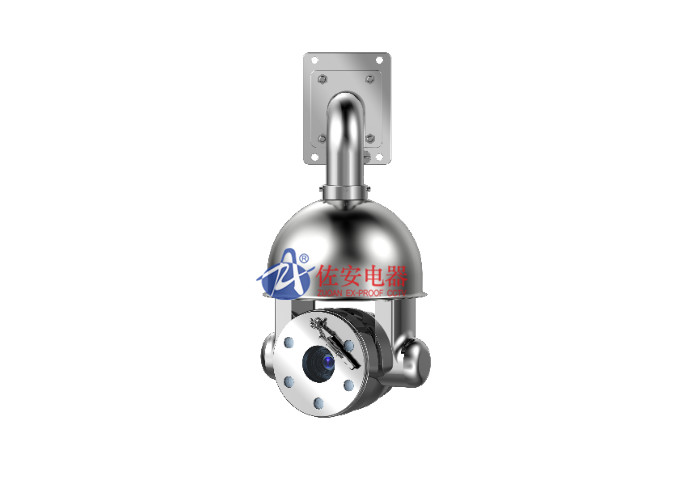

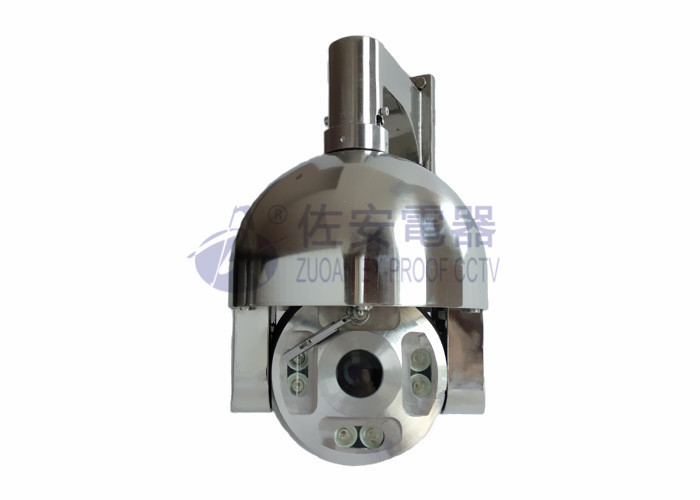

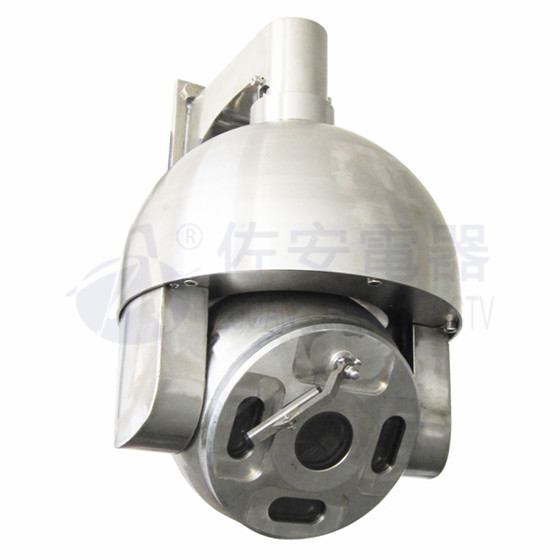

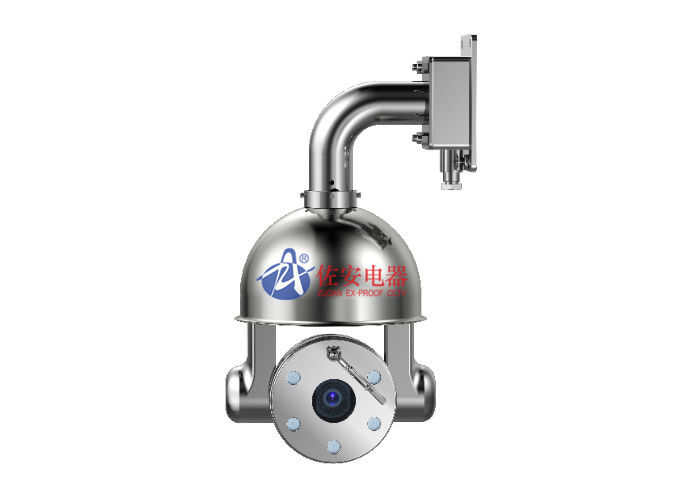

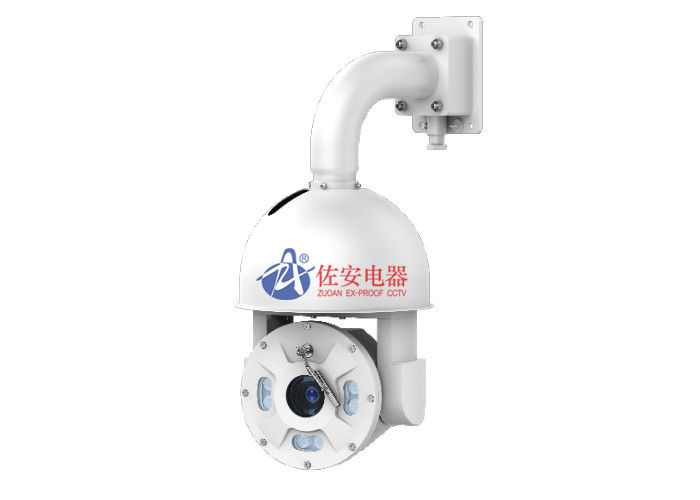

2.0MP 20X Anti-explosion Explosion Proof Dome Camera Station With Infrared Light
Main features:
2MP 20X Anti-explosion Explosion Proof Dome Camera stationWith Infrared Light Description:
ZAT680 2MP 20X Anti-explosion explosion proofdome camera with infrared light is ZUOAN 2014 year new developed products, which is also the China first explosion proof type ptz dome camera with IR lights. ZAT680 is an integrated products, with pan and tilt, zoom camera, infrared lights, wiper system. Dome Housing inner and outside is full of metal struction, which is greatly avioid the water condensation problem. ZAT680 explosion proof dome camera has the features of high speed location and preset accuracy. the explosion proof housing is a ready-to-use kit, for all brand cctv camera, like samsung CCTV camera, sony cctv camera, hikvision cctv camera, dahua cctv camera.
its infrared light adopts Made in Germany, OSRAM, which has longer life time, night vision distance 80-100m.
2MP 20X Anti-explosion Explosion Proof Dome Camera Staion With Infrared Light Applications:
With stringent certifications, explosion proof dome camera enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project, Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.
2MP 20X Anti-explosion Explosion Proof Dome Camera Station With Infrared Light Data sheet:
| Model | ZAT680 |
| Crust | stainless steel 304,316L |
| Camera type |
1/2.8" CMOS 2MP, 20X optical zoom, color min 1.5lux; B&W 0.1Lux focal length: 4.7-94mm |
| Explosion proof certified | Exd II CT6 & DIP A20, TA, T6 |
| certification No. | CNEx13.4243 |
| Weather proof | IP68 |
| Infrared lights | 80-100m night vision |
| Running speed | 0.1-45°/S |
| Running angle | horizontal 360 °, vertical - 90~0° |
| preset point | 128 points |
| function | auto scanning, auto cruise, keep watch |
| power input | AC24V, AC220V, AC85-265V |
| operate temperature |
-40~65°C |
| Control | RS485, Pelco-D / Pleco-P |
| Signal output | RJ45 |
| Netweight | 19.1Kg |
Overall Dimension:
