| Place of Origin: | Changzhou, China |
|---|---|
| Brand Name: | ZUOAN |
| Certification: | CNEx |
| Model Number: | ZAT680-2030 |
| Minimum Order Quantity: | 1 set |
| Price: | 2000-4000USD |
| Packaging Details: | firm carton |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5 set per week |
| Material: | Stainless Steel 304, 316L | Certificate Mark: | CNEx13.4243 |
|---|---|---|---|
| Wiper: | Yes | Infrared Lights: | 80-100m |
| Camera: | 1080P | Zoom: | 30x Optical |
| Voltage: | AC85V～AC265V Or DC24Vor AC24V | Ambient Temperature : | -25 To +60℃ |
| Rotation: | Pan 360° | Vertical: | -90 To +0° |
| Preset: | 61/128/255 |

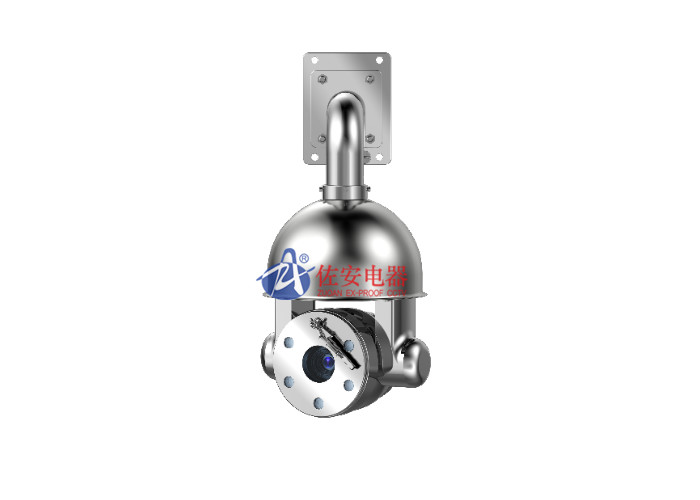

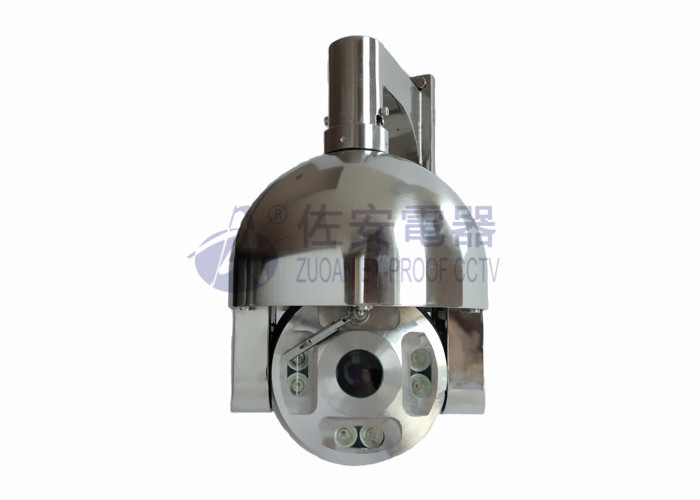

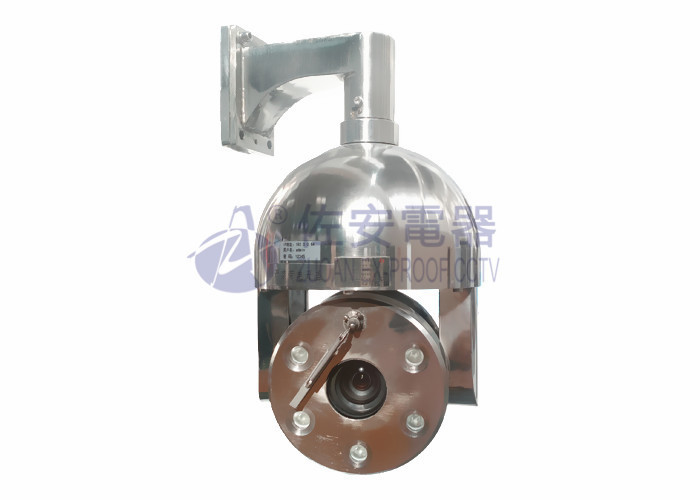

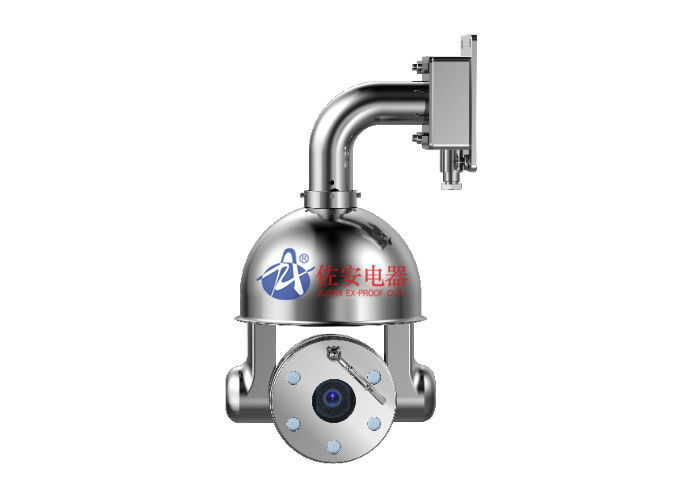

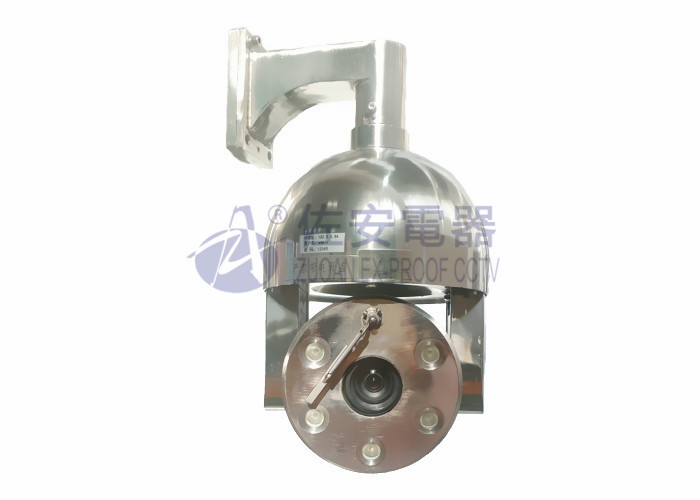

1080P 30X Night Vision Explosion Proof Dome Camera With Infrared Lights, Wiper
Overview
The ZAT680 is Zuoan firstly developed explosion proof dome camera, which is also integrated infrared lights for night vision, and wiper system for self-cleaning. This explosion proof dome camera attracts so many clients to cooperate with us. With inner and outer full metal structure, it is the authentic called explsoion proof dome camera. The tranditional explosion proof dome camera will has a transparent cover, which is not strong enought to resist shock or high temperature fire.
The ZAT680-2030 is a network explosion proof dome camera, which resolution has reach to 1080P. It has a 30x motor-driven optical zoom.This PTZ camera is a high performance low-lights camera that automaticaly
switches to black and white and removes an IR cut filter to increase sensitivity in low light conditions.
With long-life infrared lights for night vision, and self-cleaning wiper, the ZAT680 is all-in-one explosion proof dome camera. Within auto controlled thermostat systems, the ZAT680 has wide range of operational temperature. Client are also welcomed a lot to offer their brand camera, and we can offer assembly into explosion proof dome camera housing, so as to reap the benefits of the most advanced technologies while taking advantage of your existing technology.
1080P 30X explosion proof dome camera features:
1080P 30X explosion proof dome camera application:
Explosion proof dome camera is fit for hazardous coner area, hazardous location or explosive atmospheres, such as rig floor, gas station, oil refining, chemical factory, printing, papermaking, textile industry and coating industry. With stainless steel 316L crust, this explosion proof turret camera can also apply for marine area. optional with alarm, audio function, it is compatible for client software. More details, please contact us.
1080P 30X explosion proof dome camera specifications:
Certificate
| Certificate Mark | ExdⅡC T6 GB/DIP A20 TA, T6 |
| Certificate No | CNEx13.4243 |
| Standards | Q/320412 ZAF063-2013 |
Mechanical
| Housing | Stainless steel 304 or 316L |
| IP | IP68 |
| Cable thread hole | 1pcs G3/4 or NPT3/4 |
| Wiper | yes |
Electrical
| Voltage | AC85V～AC265V or DC24Vor AC24V |
| Power | 50W /70W (with thermostat) |
Ambient
| Ambient temperature | -25 to +60℃ |
| Air pressure | 80Kpa to 106Kpa |
| Relative Humidity | ≦95% (no condensation) |
Lights
| Light distance | 100m |
| Light control | Support |
Communication
| Communication | support analog video output |
| 485 Communication | Support Pelco-D, Pelco-P |
| Communicate Rate | 2400 to 19200bps |
Pan & Tilt
| Horizontal | 360° |
| Horizontal speed | 0.1-45°/s |
| Vertical | -90 to +90° |
| Cruise Scan | Support |
| Keep watch | Support |
| Preset | 64/128/255/300 |
| Resume function | Support |
| Auto Cruise | Support |
| Auto Scan | Support |
Optional Alarm
| Alarm Input | 2-channel/ 7-channel |
| Alarm Output | 1-channel, action with alarm |
| Intelligent Alarm | Audio detective, move detective, video shield, network interrupt, IP address conflict, storage full, storage error, illegal access |
Optional Audio
| Audio Input | Audio input (LINE input, MIC input), audio peak:2-2.4Vp-p,output impedance: 1KΩ+10% |
| Audio Output | Line-level impedance 600Ω |
Network
| Network Interface | 1pcs of RJ45, support 10M/100M/1000M |
| Video Compression | H.264 main profile / MJPEG |
| Audio Compression | G.722.1/ G.711-a law/ G7.11-u law/MP2L2/G.726 |
| Voice Intercom | Support |
| Stream | Support three streams |
| Internet Protocol |
IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP, SMTP,UPnP,SNMP ,DNS,DDNS,NTP,RTSP,RTP,TCP, UDP,IGMP,ICMP,DHCP,PPPoE |
| Time Display | Support |
| Standard | ONVIF, CGI, GB/T28181, PISA |
| IE browser | Support IE7 or above, Google, Firefox, Apple |
| Security | Password protection, Multiple access control |
Camera
| Image Sensor | 1/2.8" interline-transfer CCD |
| Effective pixel | 1.3MP, 2MP |
| Min. Illumination | Color 0.05Lux B/W: 0.01Lux |
| Day&night | Auto/ Color/ BW |
| S/N ratio | ＞52dB(AGC off) |
| Gain | off/ lower/ higher |
| White Balance | Auto/ Manual/ Auto tracking white balance/ indoor/outdoor/ Sodium Lamp/ Fluorescent Lamp |
| 3D DNR | Support |
| BLC | ON/OFF |
| Image setting | Mirror, Saturation, Brightness, Contrast, Sharpness adjustable |
| Optical zoom | 20X / 30X |
General
| Cable | integrated cable |
| Size | 319*240*420mm |
| Weight | 19.1kg |
| Mounted | wall |
| Wall bracket | ZAZ680B |
Drawings:
Special order/ requirements
Contact us for special requirements, Email: info@exproofcctv.com
