2MP 30X High speed Explosion Proof Dome Camera in Stainless Steel 316
Overview:

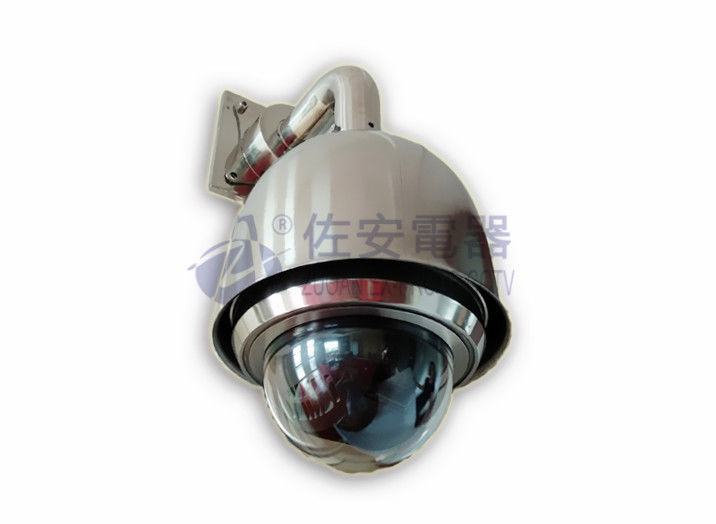

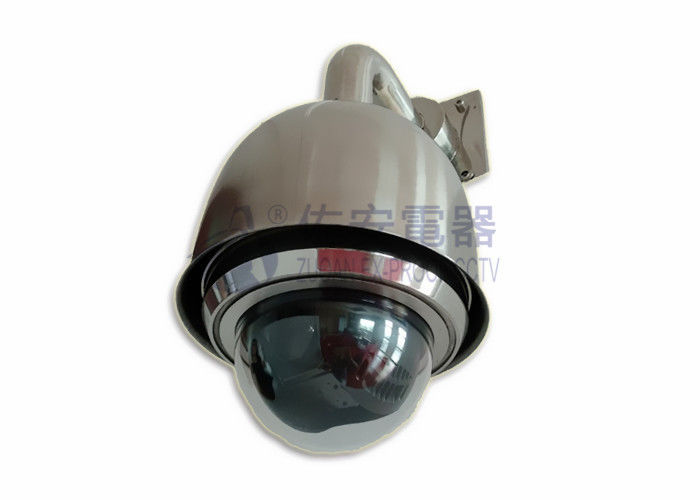

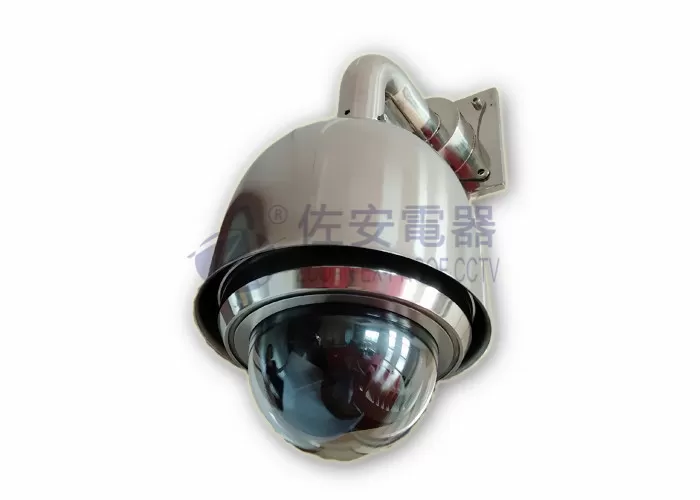

The ZAT630-2030 explosion proof dome camera is a high-speed surveillance camera in marine-grade stainless steel 316 enclosure. It has a 30x motor-driven optical zoom. The explosion proof dome camera also has been integrated the high resolution of 1080P camera. The stainless steel enclosure is also designed for environments classified as hazardous. The ZAT630-2030 comes with an auto temperature adjustment kit, giving the camera a wide operational temperature range as -25 to +60℃.
Client can ask for more functions for this explosion proof dome camera, such as lower temperature resist, audio&alarm input and output, with armoured trail cable. Zuoan is also glad to have client brand camera integrated into our explosion proof housing, so as to expand client brand camera into the market.

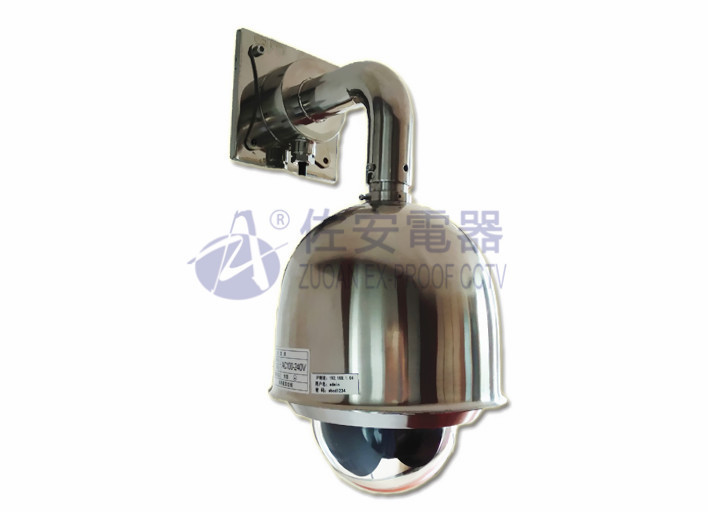

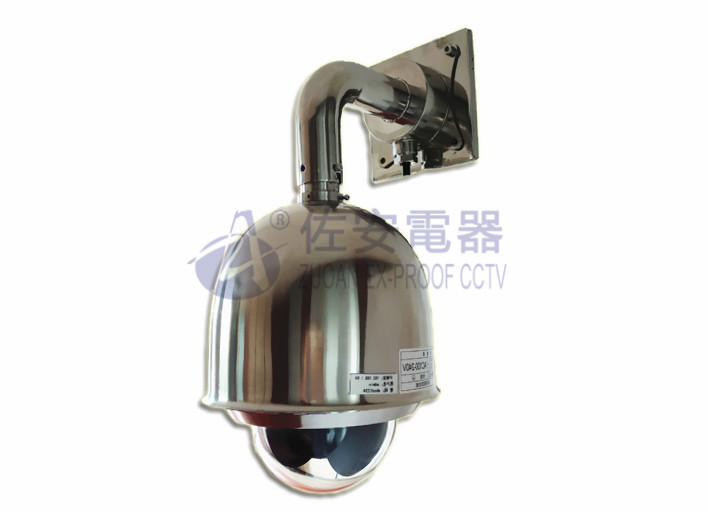

The ZAT630-2030 has optional sun shroud to block the sunlight. Zuoan also designed the wall mounted bracket and ceilings mounted bracket for this explosion proof dome camera for different place.
Features:
- get CNEx explosion proof certficate
- weather proof is IP68
- rugged stainless steel 304 or 316L enclosure
- 2MP zoom camera
- 30X optical
- low illumination reach to color 0.05Lux , BW 0.005Lux
- 4.3-129mm focal length
- PTZ auto control
- 255 preset
- optional support alarm, audio input and output
- wide voltage input: 85-265V, AC24V
- optional sun shroud to block sunlight
explosion proof dome camera application:
Explosion proof dome camera is designed for environments classified as hazardous, such as rig floor, gas station, oil refining, chemical factory, printing, papermaking, textile industry and coating industry. With stainless steel 316L crust, this explosion proof turret camera can also apply for marine area. With alarm, audio function, it is compatible for client software. More details, please contact us.
ZAT630 2MP 30X explosion proof dome camera data sheet.pdf
explosion proof dome camera specifications:
Certificate
| Certificate Mark |
ExdⅡC T6 Gb/Ext DA21 IP68 T80°C |
| Certificate No |
CNEx15.2504X |
| Standards |
Q/320412 ZAF026-2015 |
Mechanical
| Housing |
Stainless steel 304 or 316L |
| IP |
IP68 |
| Cable thread hole |
1pcs G3/4 or NPT3/4 |
| Wiper |
No |
Electrical
| Voltage |
AC85V～AC265V or DC24Vor AC24V |
| Power |
25W /35W (with thermostat) |
| Surge Protect |
Optional, TVS6000V surge protect |
Ambient
| Ambient temperature |
-25 to +60℃ |
| Air pressure |
80Kpa to 106Kpa |
| Relative Humidity |
≦95% (no condensation) |
Communication
| Communication |
support analog video output |
| 485 Communication |
Support Pelco-D, Pelco-P |
| Communicate Rate |
2400 to 19200bps |
Pan & Tilt
| Horizontal |
360° |
| Speed |
Horizontal 0.1-300°/s, Vertical 0.1-250°/s |
| Vertical |
-90 to +0 |
| Cruise Scan |
Support |
| Keep watch |
Support |
| Preset |
64/128/255/300 |
| Resume function |
Support |
| Auto Cruise |
Support |
| Auto Pattern |
Support |
| Auto Scan |
Support |
Alarm
| Alarm Input |
2-channel/ 7-channel |
| Alarm Output |
1-channel, action with alarm |
| Action with Alarm |
Screen scratch, Preset, Pattern, Cruise, SD record, email |
| Intelligent Alarm |
Audio detective, move detective, video shield, network interrupt, IP address conflict, storage full, storage error, illegal access |
Audio
| Audio Input |
Audio input (LINE input, MIC input), audio peak:2-2.4Vp-p,output impedance: 1KΩ+10% |
| Audio Output |
Line-level impedance 600Ω |
Network
| Network Interface |
1pcs of RJ45, support 10M/100M/1000M |
| Video Compression |
H.264 , H.265 / MJPEG |
| Audio Compression |
G.711-a / G7.11mu /MP2L2/PCM |
| Voice Intercom |
Support |
| Stream |
Support three streams |
| Internet Protocol |
IPv4/IPv6,HTTP,HTTPS,802.1x,
Qos,FTP,SMTP,UPnP,SNMP
,DNS,DDNS,NTP,RTSP,RTP,TCP,
UDP,IGMP,ICMP,DHCP,PPPoE |
| Time Display |
Support |
| Standard |
ONVIF, CGI, GB/T28181, PISA |
| IE browser |
Support IE7 or above, Google, Firefox, Apple |
| Security |
Password protection, Multiple access control |
Camera
| Image Sensor |
1/2.8" interline-transfer CCD |
| Effective pixel |
2MP, |
| Min. Illumination |
Color 0.05Lux B/W: 0.005Lux |
| Day&night |
Auto/ Color/ BW |
| S/N ratio |
＞52dB(AGC off) |
| Gain |
off/ lower/ higher |
| White Balance |
Auto/ Manual/ Auto tracking white balance/ indoor/outdoor/ Sodium Lamp/ Fluorescent Lamp |
| 3D DNR |
Support |
| BLC |
ON/OFF |
| Image setting |
Mirror, Saturation, Brightness, Contrast, Sharpness adjustable |
| Optical zoom |
20X / 30X |
| View Angle |
Horizontal 65.5° to 2.11 |
General
| Cable |
integrated cable |
| Size |
213*213*570mm |
| Weight |
15kg |
| Mounted |
wall, pole |
| Wall bracket |
ZAZ630B |
Drawings:
Special order/ requirements
Contact us for special requirements, Email: info@exproofcctv.com
