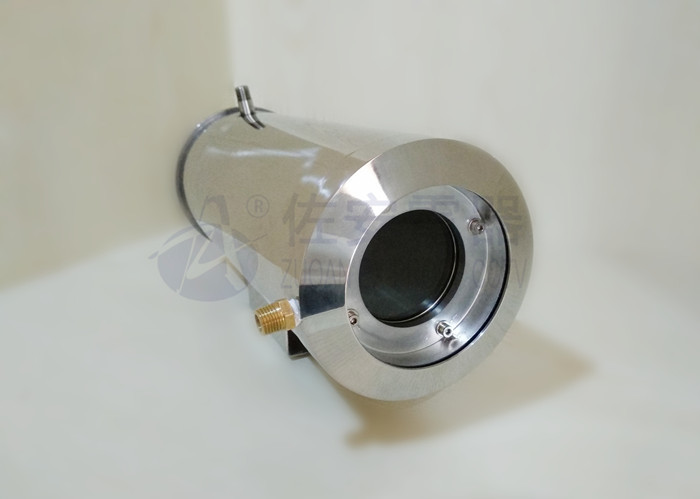

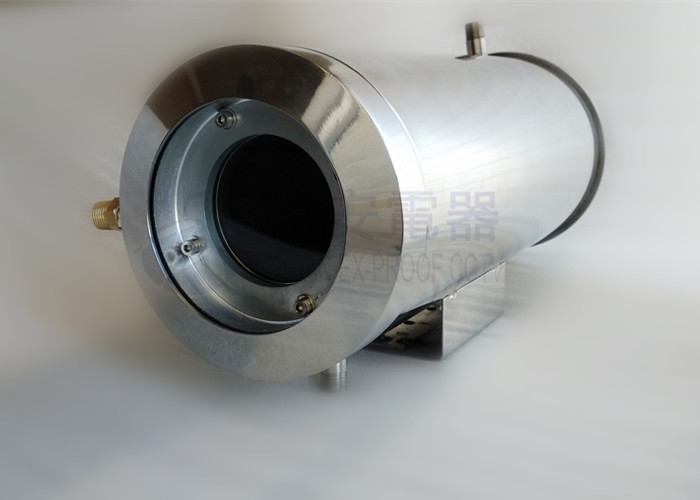

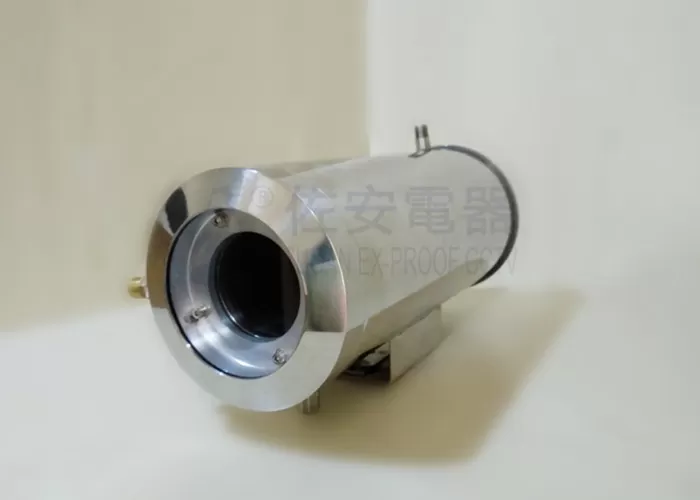

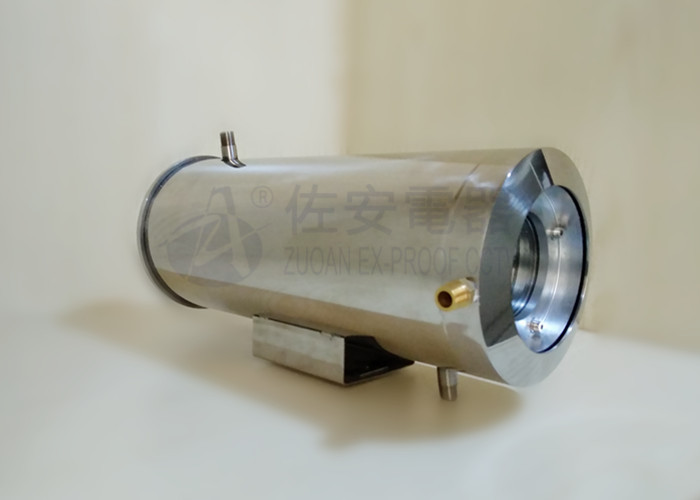

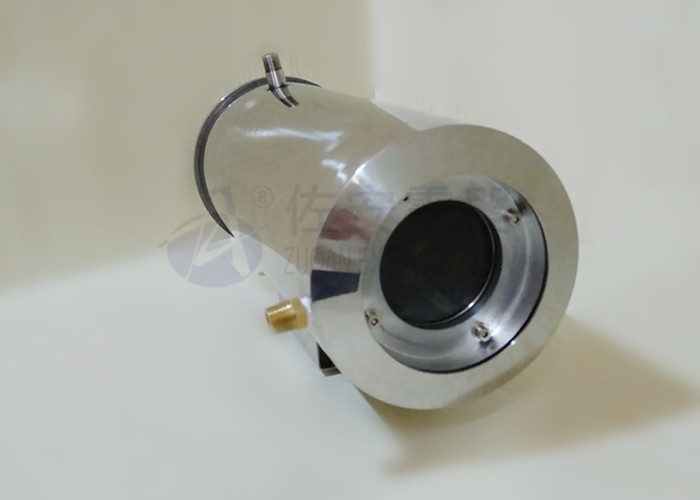

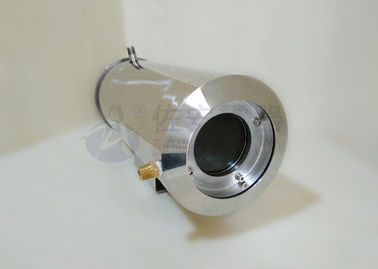

Water Cooling Stainless Steel Heat Resistant Camera Jacket for High Temperature Area

Water Cooling Stainless Steel Heat Resistant Camera Jacket for High Temperature Area

    • Water Cooling Stainless Steel Heat Resistant Camera Jacket for High Temperature Area
    • Water Cooling Stainless Steel Heat Resistant Camera Jacket for High Temperature Area
    • Water Cooling Stainless Steel Heat Resistant Camera Jacket for High Temperature Area
    • Water Cooling Stainless Steel Heat Resistant Camera Jacket for High Temperature Area
    • Water Cooling Stainless Steel Heat Resistant Camera Jacket for High Temperature Area
  • Water Cooling Stainless Steel Heat Resistant Camera Jacket for High Temperature Area

    Product Details:

    Place of Origin: Changzhou, China
    Brand Name: ZUOAN
    Certification: ISO9001
    Model Number: ZASC001

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: 100-350USD
    Packaging Details: firm carton
    Delivery Time: 5-8 work days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 30 pcs per week
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Cooling Media: Compressed Air
    Water: 3.78L/Hour Usable Size: 270*80*80mm
    Dimension: 356*138*158mm Cable Hole: 2* G3/4 Gland
    Weight: 3.5kg Mounted: Wall, Pole
    Heat Resistant: 0~250°C

    Water Cooling Stainless Steel Heat Resistant Camera Jacket for High Temperature Area



    Summary:



    ZASC001 is a commercial type water cooling heat resist camera jacket, which housing is made of dual stainless steel material. The jacket need to connect wth circulate running water, and its front need to connect with compressed air to blow the front window. The water runnng inside of the housing, so as to keep the camera working in a safety operation temperature. The air will always blow so as to keep the front window clean.

    The ZASC001 water cooling jacket has usable area of 270*80*80mm, which can load zoom camera, varifocus box camera with lens. ZASC001 can be mounted on wall bracket or pole. If the installation site doesn't has running water or compressed air pipeline, client can choose our ZAEC003 thermoelectric cooler jacket.



    The ZASC001 water cooling jacket can apply for high temperature area, such as oven, furnace, steel mills, glass processing line, power industry, cement industry, rotary kiln, clinker cooler, burner, grate firing furnace, and waste combustion furnace.



    Data sheet download:



    ZAFC001,ZASC001 air water cooling camera housing d...



    Water Cooling Stainless Steel Heat Resistant Camera Jacket for High Temperature Area  Water Cooling Stainless Steel Heat Resistant Camera Jacket for High Temperature Area



    Specification:



    Model ZASC001
    Apply area furnace, steel mills factory, power factory, high temperature working area
    IP rated IP68
    power input AC85-265V, AC24V, DC12V, POE
    Material doubel layer of Stainless steel 201
    Cooling type compressed air
    air hole 1 set G1/2 or NPT1/2
    cable hole 2 sets G3/4 (or NPT3/4)
    Heat resist  0~250°C
    Netweight 3.5Kg
    Inner size for camera 270*80*80mm
    overall dimension 356*138*158mm



    Drawings:

    Water Cooling Stainless Steel Heat Resistant Camera Jacket for High Temperature Area



    Other relative cooling type housing:

      Water Cooling Stainless Steel Heat Resistant Camera Jacket for High Temperature Area  Water Cooling Stainless Steel Heat Resistant Camera Jacket for High Temperature Area

       ZAEC003 thermoelectric cooler jacket                  ZAFC001 air cooling jacket
