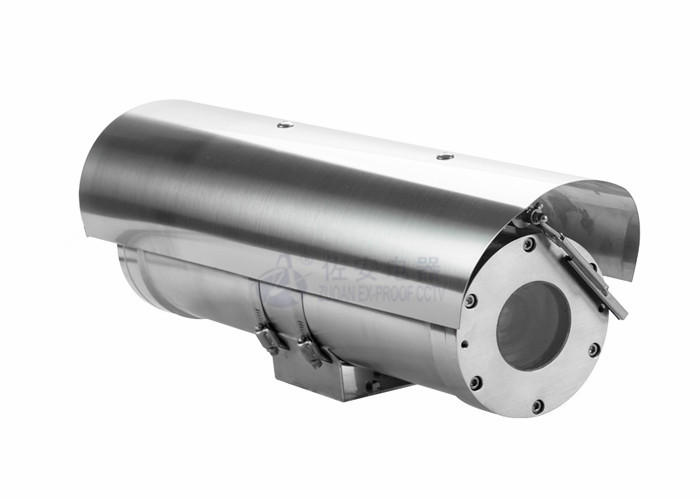

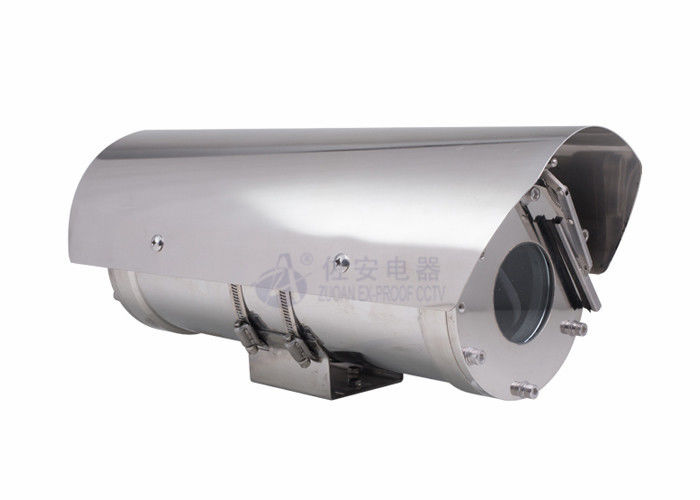

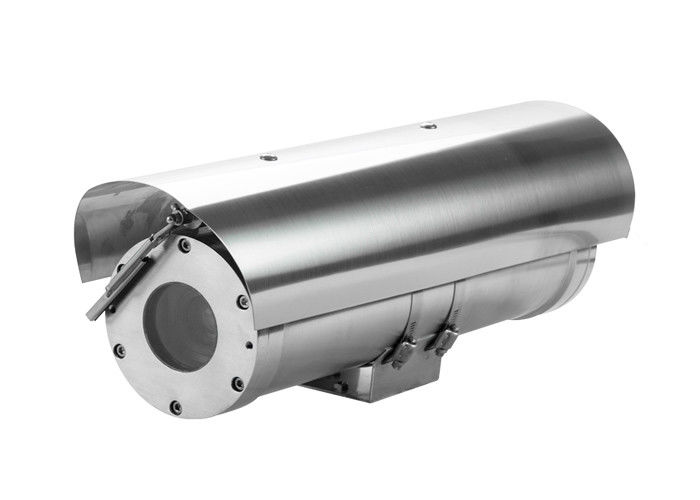

700TVL 20X Analog IECEx certified Explosion Proof ATEX CCTV Camera with Wiper

700TVL 20X Analog IECEx certified Explosion Proof ATEX CCTV Camera with Wiper

    • 700TVL 20X Analog IECEx certified Explosion Proof ATEX CCTV Camera with Wiper
    • 700TVL 20X Analog IECEx certified Explosion Proof ATEX CCTV Camera with Wiper
    • 700TVL 20X Analog IECEx certified Explosion Proof ATEX CCTV Camera with Wiper
    • 700TVL 20X Analog IECEx certified Explosion Proof ATEX CCTV Camera with Wiper
    • 700TVL 20X Analog IECEx certified Explosion Proof ATEX CCTV Camera with Wiper
  • 700TVL 20X Analog IECEx certified Explosion Proof ATEX CCTV Camera with Wiper

    Product Details:

    Place of Origin: China
    Brand Name: ZA
    Certification: ATEX, IECEX
    Model Number: CZ100-A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 500-1000USD per set
    Packaging Details: carbon boxes
    Delivery Time: 5-8 work days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 200 pcs per month
    Contact Now
    Detailed Product Description
    Certified: ATEX, IECEx Material: Stainless Steel 304, 316L
    IP: IP68 Input Voltage: 100~240V AC Or 24V AC
    Current: Max. 1.5A Wiper: Yes
    Temperature: -40 ºC~+60 ºC Window Glass: Toughened Glass
    Camera: 700TVL, 20X Analog Camera Weight: 15.5kg
    Cable Entry: 2*gland Holes

    700TVL, 20X Analog IECEx certified Explosion Proof ATEX CCTV Camera with Wiper



    Summary:



    Zuoan is China top manufacturer of explosion proof camera for more than 13 years. Our product has covered the whole CCTV surveillance solution, from the explosion proof camera housing, explosion proof pan tilt, integrated explosion proof PTZ camera station, to the display and control station, like explosion proof monitor, explosion proof control box, explosion proof speaker, and explosion proof phone.

    With ATEX, IECEx, CNEx explosion proof certifiate, Zuoan products are welcomed by the international market.

    Client can offer your brand camera to us do assembly inside of explosion proof camera housing, or Zuoan also offer the integrated explosion proof housing within camera.

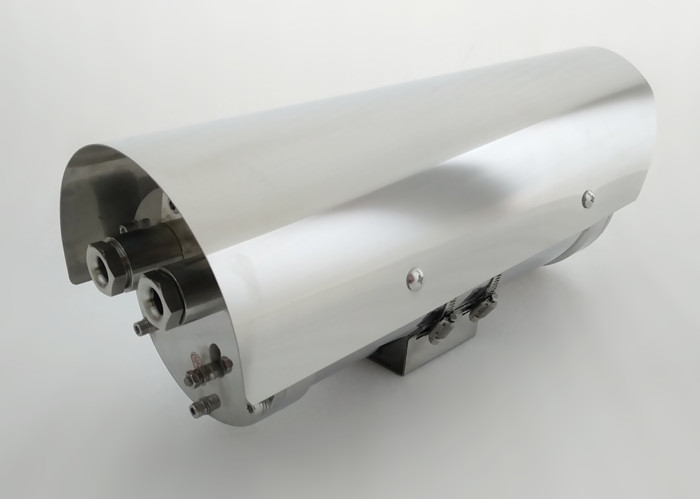

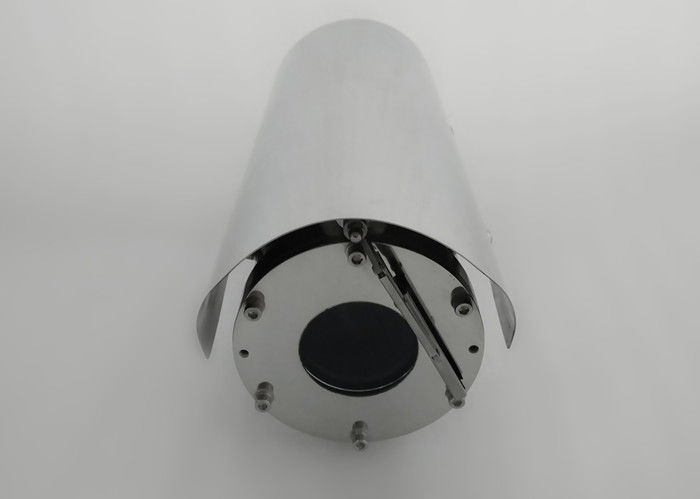

    All Zuoan explosion proof camera housing is made of stainless steel 304 or 316L material. The front window adopts strong tempered glass. The glass passed impact and terminal shock test. At the rear cover, there are 2 pcs glands for cable thread by.

    Zuoan explosion proof camera housing has passed the IP68 test. The test follows the IECEx standards, include water and dust ingress test.

    The explosion proof camera housing surface can be special treated, such as electropolished and painting finish for more aggressive area.

    The power supply for explosion proof camera housing can be AC24V or AC100-240V. In cold winter, hot summer or heavy moister area, it is optional to add heating and cooling kit inside of the explosion proof camera housing. so as to make a dry and comfortable working temperature for camera operation.

    ATEX explosion proof camera housing can apply for industry hazardous area, gas zone 1,2; dust zone 21, 22. Its surface temperature will no more than 80°C in normal operation. The explosion proof camera housing is also fit for T1 to T6 grade gases, vapors and air may exist.


    With stringent certifications, explosion proof camera housing enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project, marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.



    Service Condition:



    • Atmosphere pressure: 80~120kPa
    • Ambient temperature: -40 ºC~+60 ºC
    • Relative humidity: no more than 95% (+25ºC);

    Download Data Sheet for CZ100 ATEX CCTV Camera:



    CZ100-AB data sheet[[EN][0.2].pdf



    700TVL 20X Analog IECEx certified Explosion Proof ATEX CCTV Camera with Wiper700TVL 20X Analog IECEx certified Explosion Proof ATEX CCTV Camera with Wiper



    Specifications:



    CZ100-A
    Crust stainless steel 304/ 316L
    Explosion proof marking

    700TVL 20X Analog IECEx certified Explosion Proof ATEX CCTV Camera with Wiper Ⅱ2G Ex db ⅡC T6 Gb,

    700TVL 20X Analog IECEx certified Explosion Proof ATEX CCTV Camera with WiperⅡ2D Ex tb ⅢC T80 ºC Db

    Explosion proof certification ATEX, IECEx, CE
    Standards

    EN60079-0: 2012+A11: 2013,

    EN60079-1: 2014, EN60079-31: 2014

    IEC60079-0: 2011, IEC60079-1: 2014,

    IEC60079-31: 2013

    Hazardous Area

    zone 1, 2

    (IIA, IIB, IIC, T1~T6 gases, vapors and air may exist)

    zone 20, 21

    (explosive dust may exist)

    IP rated IP68 (1.2m/45min)
    Atmosphere pressure 80~110kPa
    Relative humidity no more than 95% (+25ºC)
    Power input AC100-240V, or AC24V
    cable output 2 cable entries
    Window glass Strong temperared glass
    working temperature -40°C~60°C
    Netweight 15.5Kg
    Overall dimension 524*179*215mm
    accessory wiper, sunshiled
    camera 700TVL, 20X zoom type analog camera






    CZ100-A ATEX CCTV Camera Drawings:



    700TVL 20X Analog IECEx certified Explosion Proof ATEX CCTV Camera with Wiper

    CZ100 ATEX CCTV Camera Accessories:

    700TVL 20X Analog IECEx certified Explosion Proof ATEX CCTV Camera with Wiper700TVL 20X Analog IECEx certified Explosion Proof ATEX CCTV Camera with Wiper700TVL 20X Analog IECEx certified Explosion Proof ATEX CCTV Camera with Wiper

                     wall bracket                             mount adapter                     Ex flexible tube
