700TVL 23X Auto Tracking Explosion-proof ATEX CCTV Camera For Oil Field

700TVL 23X Auto Tracking Explosion-proof ATEX CCTV Camera For Oil Field

    • 700TVL 23X Auto Tracking Explosion-proof ATEX CCTV Camera For Oil Field
    • 700TVL 23X Auto Tracking Explosion-proof ATEX CCTV Camera For Oil Field
    • 700TVL 23X Auto Tracking Explosion-proof ATEX CCTV Camera For Oil Field
    • 700TVL 23X Auto Tracking Explosion-proof ATEX CCTV Camera For Oil Field
    • 700TVL 23X Auto Tracking Explosion-proof ATEX CCTV Camera For Oil Field
  • 700TVL 23X Auto Tracking Explosion-proof ATEX CCTV Camera For Oil Field

    Product Details:

    Place of Origin: China
    Brand Name: ZUOAN
    Certification: ATEX, CNEX
    Model Number: CZ610-50SS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 0-3000 USD
    Packaging Details: firm carton or wooden box
    Delivery Time: in stock
    Payment Terms: 100% TT before shipment
    Supply Ability: 1000 set per month
    price term: EXW price
    Contact Now
    Detailed Product Description
    Type: Analog Camera Style: Box Camera
    Sensor: CCD Technology: Pan / Tilt / Zoom
    Special Features: ATEX Ingress: IP67
    Housing: Stainless Steel316L Camera: 700TVL,23X Optical
    Weight: 19KG Pan And Tilt: 360 Degree Auto Tracking
    Preset Patrol: 128 Points

    700TVL 23X ATEX Auto Tracking Stainless Steel 316L Explosion Proof PTZ Camera




    Main features:700TVL 23X Auto Tracking Explosion-proof ATEX CCTV Camera For Oil Field

    ·CNEx , ATEX certificated
    ·stepping motor drive
    ·Adopts stainless steel 304/ 316L

    ·Surface finish: electropolished or corrosion resistant paint finish
    ·IP67
    · cable gland
    ·Tempered glass with nanometer paint film for visiable light camera
    Germanium front window for thermal imaging camera
    ·applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
    ·installation: mounted on ceiling, wall with pan &tilt, brackets.
    ·optional accessories: sun shield, lens decoder, window wiper, wiper decoder, auto-heating, auto-cooling modular.
    ·Camera: SONY, SAMSUNG, Hikvision
    ·Telephoto limited speed: yes
    ·Variable angle: horizontal 360°, vertical ±90°
    ·Preset patrol: 256/ 128 points



      700TVL 23X Auto Tracking Explosion-proof ATEX CCTV Camera For Oil Field



    700TVL 23X ATEX Auto Tracking Stainless Steel 316L Explosion Proof PTZ Camera Description:



    If your security and surveillance needs include monitoring extreme, flammable, and explosive environments, marine corrosion environment, the ZUOAN CZ610-50 is built for your environment. it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAT610corrosion proof CCTV housing regards as an integrated explosion proof video supervising system, which consists of explosion proof enclosure. infrared thermal imaging camera,germanium front window,wiper system, heater module, pan/tilt and decoder. The 316L, stainless steel housing is IP68 rated for all weather use and is corrosion/explosion resistant. its housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish,according to customer requirement.

    Base and bracket installation options allow for 360 degree continuous pan rotation and +90 degree ~.90 degree tilt camera operations.The optional camera and the decoder are integrated within the housing, which permits multiple communication response protocols, depending on orders. It offers 256/128 preset options including pan/tilt and focus. The camera is equipped with sun shield and wiper, with an auto-heat option for outdoor monitoring, and equipped with infrared array light for night vision.



    700TVL 23X ATEX Auto Tracking Stainless Steel 316L Explosion Proof PTZ Camera Applications:

    With stringent certifications, explosion-proof CCTV housing cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.





    Data sheet:



    Model CZ-610-5018
    Crust stainless steel 316L
    Camera type

    700TVL, 23X optical zoom

    color min 0.7lux

     focal length: 4.1-73.8mm

    Explosion proof certified
    Ex Ⅱ2G Ex dⅡC T6 Gb, Ex t ⅢC T80℃ Db
    certification type ATEX
    Weather proof IP67
    Running speed Horizontal 0.1-30°/S, Vertical 0.1-15°/S
    Running angle horizontal 360 °, vertical ± 90°
    preset point 128 points
    function auto scanning, auto cruise, keep watch
    equipped wiper system, sunshield,
    power input AC24V, AC220V, AC85-265V
    operate temperature

    -25~65°C

    lower temperature type: -35~65°C

    Control  RS485, Pelco-D / Pleco-P
    Signal output AV
    Netweight 19Kg

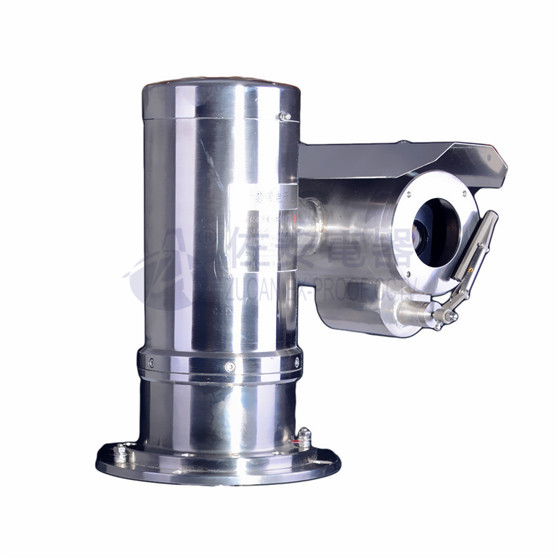

    Details images:

              700TVL 23X Auto Tracking Explosion-proof ATEX CCTV Camera For Oil Field



    Other products:

    700TVL 23X Auto Tracking Explosion-proof ATEX CCTV Camera For Oil Field

    700TVL 23X Auto Tracking Explosion-proof ATEX CCTV Camera For Oil Field
