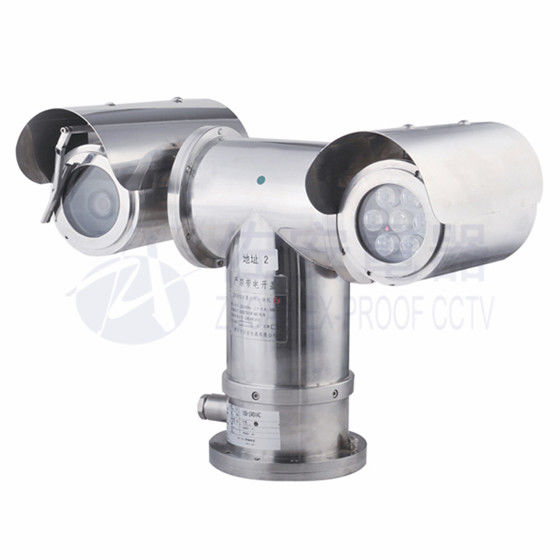

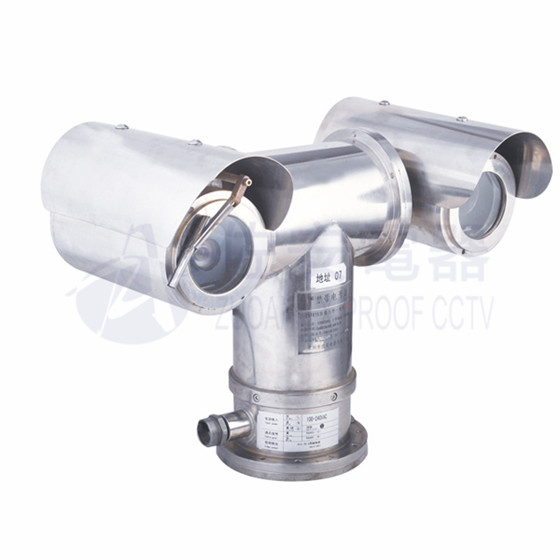

2MP 20X Stainless Steel Pan and Tilt Marine CCTV Camera With Laser Light

2MP 20X Stainless Steel Pan and Tilt Marine CCTV Camera With Laser Light

    • 2MP 20X Stainless Steel Pan and Tilt Marine CCTV Camera With Laser Light
    • 2MP 20X Stainless Steel Pan and Tilt Marine CCTV Camera With Laser Light
    • 2MP 20X Stainless Steel Pan and Tilt Marine CCTV Camera With Laser Light
    • 2MP 20X Stainless Steel Pan and Tilt Marine CCTV Camera With Laser Light
  • 2MP 20X Stainless Steel Pan and Tilt Marine CCTV Camera With Laser Light

    Product Details:

    Place of Origin: China
    Brand Name: ZUOAN
    Certification: CNEX
    Model Number: ZAT610-5-SS-IP

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 0-3000 USD
    Packaging Details: firm carton or wooden box
    Delivery Time: in stock
    Payment Terms: 100% TT before shipment
    Supply Ability: 1000 set per month
    price term: EXW price
    Contact Now
    Detailed Product Description
    Type: Digital Camera Style: Box Camera
    Sensor: CMOS Technology: Pan / Tilt / Zoom
    Special Features: Anti-salty Ingress: IP68
    Housing: Stainless Steel 304 Laser Light: 500m Night Vision Distance
    Camera: 2.0MP, 20X Optical Zoom Camera Weight: 27KG
    Pan And Tilt: 360 Degree Auto Tracking Preset Patrol: 128 Points

    2MP 20X stainless steel pan and tilt type Marine CCTV camera with laser light



    Main features:2MP 20X Stainless Steel Pan and Tilt Marine CCTV Camera With Laser Light

    ·CNEx certificated
    ·stepping motor drive·Adopts stainless steel 316L
    ·Surface finish: electropolished or corrosion resistant paint finish
    ·IP68
    · cable gland
    ·Tempered glass with nanometer paint film for visiable light camera
    ·applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
    ·installation: mounted on ceiling, wall with pan &tilt, brackets.
    ·optional accessories: sun shield, lens decoder, window wiper, wiper decoder, auto-heating, auto-cooling modular.
    ·Communication : Pelco-D/ Pelco-P/TCP/IP
    ·Communication rate: 2400~19200bps·

    ·Output: AV/H.264/RJ45·Control: RS-232/RS485
    ·Camera: 2.0MP 20X optical, zoom camera
    ·Telephoto limited speed: yes
    ·Variable angle: horizontal 360°, vertical ±90°
    ·Preset patrol: 256/ 128 points
    ·laser light: 300m night vision distance



    Download Data Sheet Here:



    Explosion Proof PTZ Camera With Lights-ZAT610 series data sheet.pdf



    Description:

    If your security and surveillance needs include monitoring extreme, flammable, and explosive environments, marine corrosion environment, the ZUOAN ZAT610-5 corrosion proof ptz type Marine CCTV camera is built for your environment. it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAT610-5 corrosion proof  Marine CCTV camera housing regards as an integrated explosion proof video supervising system, which consists of explosion proof enclosure. infrared thermal imaging camera,germanium front window,wiper system, heater module, pan/tilt and decoder. The 316L, stainless steel housing is IP68 rated for all weather use and is corrosion/explosion resistant. its housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish,according to customer requirement.

    Base and bracket installation options allow for 360 degree continuous pan rotation and +90 degree ~.90 degree tilt camera operations.The optional camera and the decoder are integrated within the housing, which permits multiple communication response protocols, depending on orders. It offers 256/128 preset options including pan/tilt and focus. The camera is equipped with sun shield and wiper, with an auto-heat option for outdoor monitoring, and equipped with laser light for night vision.



    Applications:

    With stringent certifications, PTZ type marine CCTV camera enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.



    Data sheet:

    Model ZAT610-5-SS-IP
    Crust stainless steel 316L
    Camera type

    2.0MP, 20X optical zoom

    color min 1.5lux; B&W 0.1Lux

     focal length: 4.45-89mm

    Laser light 500m
    Explosion proof certified Exd II CT6 & DIP A20, TA, T6
    certification No. CNEx13.3111
    Weather proof IP68
    Running speed 0.1-45°/S
    Running angle horizontal 360 °, vertical ± 90°
    preset point 128 points
    function auto scanning, auto cruise, keep watch
    equipped wiper system, sunshield,
    power input AC24V, AC220V, AC85-265V
    operate temperature

    -25~65°C

    lower temperature type: -50~65°C

    Control  RS485, Pelco-D / Pleco-P
    Signal output RJ45
    Netweight 27Kg
    Camera

    1/3 CMOS, 1080P, 20X optical,

    ICR Day & Night

    focal length: 4.45-89mm

    color min 1.5lux; B&W 0.1Lux



    Details images:

    2MP 20X Stainless Steel Pan and Tilt Marine CCTV Camera With Laser Light
