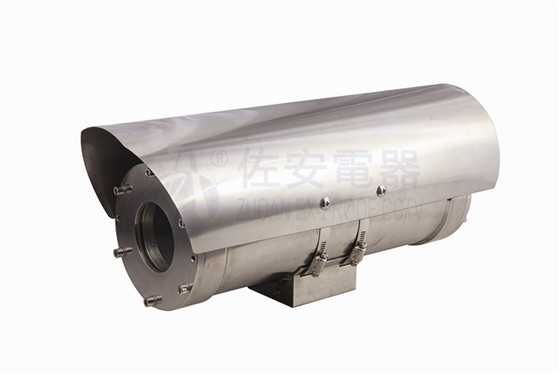

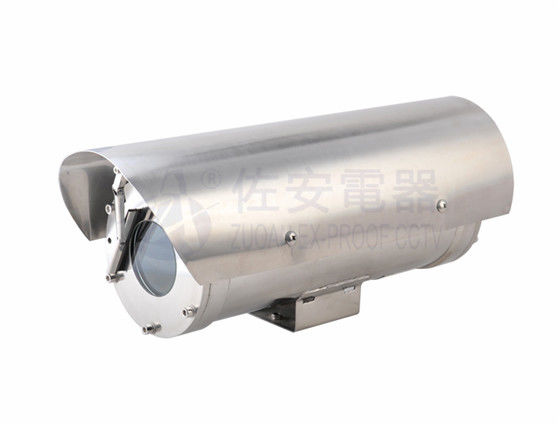

1080P 20X corrosion proof stainless steel 316L Marine CCTV camera

1080P 20X corrosion proof stainless steel 316L Marine CCTV camera

    • 1080P 20X corrosion proof stainless steel 316L Marine CCTV camera
    • 1080P 20X corrosion proof stainless steel 316L Marine CCTV camera
    • 1080P 20X corrosion proof stainless steel 316L Marine CCTV camera
    • 1080P 20X corrosion proof stainless steel 316L Marine CCTV camera
    • 1080P 20X corrosion proof stainless steel 316L Marine CCTV camera
  • 1080P 20X corrosion proof stainless steel 316L Marine CCTV camera

    Product Details:

    Place of Origin: China
    Brand Name: ZUOAN
    Certification: CNEX
    Model Number: ZAF100A-SS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 0-600 USD
    Packaging Details: firm carton or wooden box
    Delivery Time: in stock
    Payment Terms: 100% TT before shipment
    Supply Ability: 1000 set per month
    price term: EXW price
    Contact Now
    Detailed Product Description
    Type: Digital Camera Style: Box Camera
    Sensor: CMOS Technology: NetWork
    Special Features: Corrosion Proof Ingress: IP68
    Housing: Stainless Steel 316L Optional: Wiper, Sunshiled
    Camera: 1080P, 20X Network Camera Weight: 9.5KG
    Max Size For Camera: 300*80*80mm

    1080P 20X corrosion proof stainless steel 316L Marine CCTV camera1080P 20X corrosion proof stainless steel 316L Marine CCTV camera





    Main features:

    ·CNEx certificated
    ·Adopts stainless steel 316L
    ·Surface finish: electropolished or corrosion resistant paint finish
    ·IP68
    ·2 cable glands
    ·Tempered glass with nanometer paint film
    ·Applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.

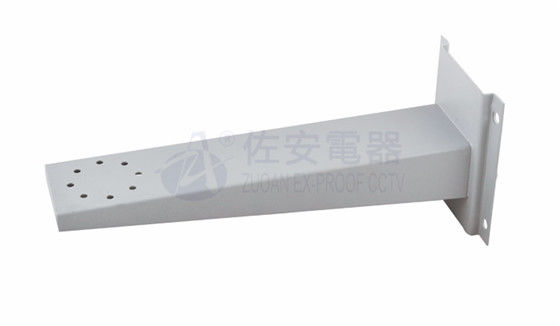

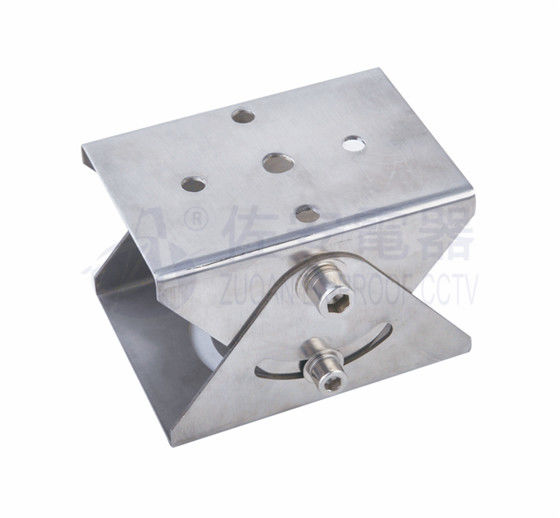

    ·Installation: mounted on ceiling, wall with pan &tilt, brackets.
    ·accessories: sun shield, lens decoder, window wiper, wiper decoder, auto-heating.
    ·Communication and : Pelco-D/ Pelco-P
    ·Output: AV/optical fiber/twisted pair/H.264
    ·camera optional: analog camera, network camera, thermal camera



    Download Data Sheet Here:



    Explosion Proof CCTV Camera Housing With Wiper System-ZAF100A series data sheet.pdf



    Description:

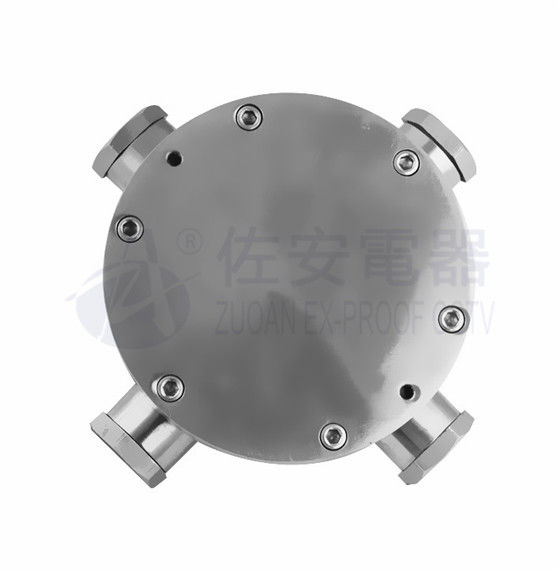

    ZAF100A-SS series is ZUOAN one of the most popular bullet proof vandal proof camera housings/ cavity/ enclosure. ZAF100A marine CCTV camera adopts Stainless steel316L material, which also named as corrosion proof camera housing, anti-salty camera housing. ZAF 100A housing/ enclosure surface also can be special treated, like electro-polished, corrosion painting finish,according to customer requirement.  its explosion proof marking is Exd II CT6/DIP A20 TA, T6. its dust protection rate reaches to IP68 . ZAF100A explosion proof camera serise adopts 12mm thickness tempered window glass, with sun shiled, window wiper,which is fit for outdoor and indoor mounting.  At the housing end flange, there're 2 threaded holes for video cable and power cable. its size is G3/4 (inner diameter is 20mm). ZAF100A camera housing size: 420*195*194mm .98% cameras on the market can be installed in our stainless steel housing. Customers can offer camera and let us to make free installation.on the other hand, ZUOAN also offer integrated housing with installed camera.



    Applications:



    ZAF100A-SS, as corrosion proof Marine CCTV camera, can apply for industry aggressive area.

    ZAF100A-SS, with marine grade stainless steel 316L, apply for marine, vessel, offshore platform

    marked as explosion proof camera, apply for hazardous area, gas station, petrochemical, oil tank, refinery ect.



    Data sheet:



    ZAF100A-SS
    Crust stainless steel 304/ 316L
    Explosion proof marking

    Exd II CT6 & DIP A20, TA, T6

    Explosion proof certification CNEx12.0006
    IP rated IP68
    Power input AC85-265V, AC24V
    cable output  2 sets G3/4 or NPT3/4
    Window glass Strong temperared glass
    working temperature

    -25~65°C

    optional:-50~65°C

    Netweight 11Kg
    max size  for camera 350*80*80mm
    Overall dimension 535*195*194mm
    accessory wiper, sunshiled
    Camera

    1/3 CMOS, 1080P, 20X optical,

    ICR Day & Night

    focal length: 4.45-89mm

    color min 1.5lux; B&W 0.1Lux



    Details images:



    1080P 20X corrosion proof stainless steel 316L Marine CCTV camera    1080P 20X corrosion proof stainless steel 316L Marine CCTV camera
