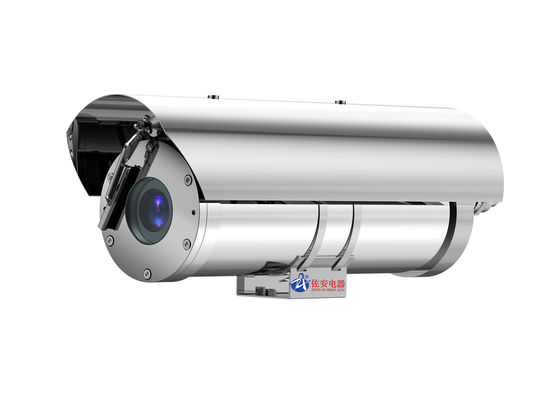

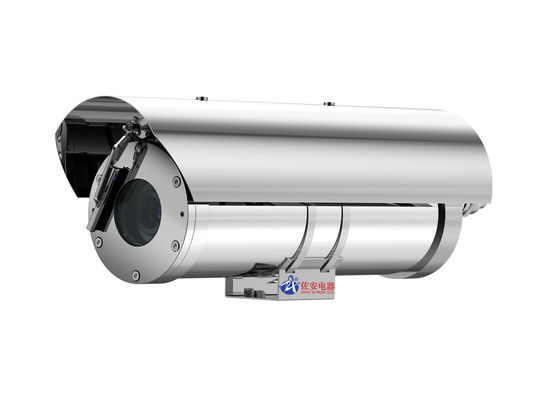

ATEX Outdoor Large Size IP68 Stainless Steel 316L Explosion Proof CCTV Camera

ATEX Outdoor Large Size IP68 Stainless Steel 316L Explosion Proof CCTV Camera

    • ATEX Outdoor Large Size IP68 Stainless Steel 316L Explosion Proof CCTV Camera
    • ATEX Outdoor Large Size IP68 Stainless Steel 316L Explosion Proof CCTV Camera
    • ATEX Outdoor Large Size IP68 Stainless Steel 316L Explosion Proof CCTV Camera
    • ATEX Outdoor Large Size IP68 Stainless Steel 316L Explosion Proof CCTV Camera
  • ATEX Outdoor Large Size IP68 Stainless Steel 316L Explosion Proof CCTV Camera

    Product Details:

    Place of Origin: China
    Brand Name: ZUOAN
    Certification: ATEX, CNEX,CE
    Model Number: CZ100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 0-800 USD
    Packaging Details: firm carton or wooden box
    Delivery Time: in stock
    Payment Terms: 100% TT before shipment
    Supply Ability: 1000 set per month
    price term: EXW price
    Contact Now
    Detailed Product Description
    Type: Digital Camera Style: Box Camera
    Sensor: CMOS Technology: NetWork
    Special Features: Vandal-proof Ingress: IP68
    Housing: Stainless Steel 316L Accessories: Wiper, Sunshiled
    Camera: Analog Camera Core, Or Network Camera Weight: 9.5KG
    Inner Size For Camera: 350*80*80mm

    ATEX Outdoor Large Size IP66 stainless steel316L Explosion Proof CCTV Camera with wipersystem



    ATEX Explosion Proof CCTV Camera Main features:

    ATEX Outdoor Large Size IP68 Stainless Steel 316L Explosion Proof CCTV Camera


    * ATEX,CNEx certificated
    * Explosion Proof Certification: CNEx12.0006
    * Explosion Proof Marking: Exd II CT6 & DIP A20, TA, T6
    * Fit for gas zone 1, 2;  dust zone 20, 21,22.
    * Adopts stainless steel 304 or 316L
    * Surface finish: electropolished or corrosion resistant paint finish
    * IP68
    * Equipped with auto wiper system and sunshiled for heavy polluted area
    * 2 cable glands G3/4(NPT3/4)
    * Strong Tempered glass with nanometer paint film
    * Applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
    * Installation: mounted on ceiling, wall with pan &tilt, brackets.
    * Inner size for camera:350*80*80mm (LxWxH)
    * Operation temperature: -25 to 65 degree centigrade
                                               -50 to +65 degree centigrade
    * can load Sony camera, SAMSUNG camera, Hikvision Camera, Dahua Camera, thermal camera


       ATEX Outdoor Large Size IP68 Stainless Steel 316L Explosion Proof CCTV Camera

    ATEX Explosion Proof CCTV Camera  Description:

    CZ100 series is ZUOAN one of the most popular ATEX Outdoor Large Size IP68 Stainless Steel 316L Explosion Proof CCTV Camera housings/ cavity/ enclosure. it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. CZ100 series's explosion proof marking is Exd II CT6/DIP A20 TA, T6. its dust protection rate reaches to IP68. ZUOAN explosion proof camera housing adopts Stainless steel 304 or 316L material, which also named as corrosion proof CCTV camera,dust proof CCTV camera, weather proof CCTV camera, flame proof CCTV camera. CZ100 housing/ enclosure surface also can be special treated, like electro-polished, corrosion painting finish,according to customer requirement. ZAF100A explosion proof camera serise adopts 12mm thickness tempered window glass, with sun shiled, window wiper,which is fit for outdoor and indoor mounting. CZ100 series can be mounted on fixed brackets(model: ZAZ100-B) for one point surveillance;it also can be mounted on rotating pan&tilt (model ZAY200B) for 128 points preset and auto patrol. At the housing end flange, there're 2 threaded holes for video cable and power cable. its size is G3/4 (inner diameter is 20mm). CZ100 inner size for camera is 350*80*80mm .98% cameras on the market can be installed in our stainless steel housing. Customers can offer camera and let us to make free installation.on the other hand, ZUOAN also offer integrated housing with installed camera.

    ATEX Outdoor Large Size IP68 Stainless Steel 316L Explosion Proof CCTV Camera



    Explosion Proof CCTV Camera Applications:

    With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.



    Explosion Proof CCTV Camera Data sheet:



    CZ100
    Crust stainless steel 304/ 316L
    Explosion proof marking

    ATEX Outdoor Large Size IP68 Stainless Steel 316L Explosion Proof CCTV Camera Ⅱ2G Ex dⅡC T6 Gb, Ex t b ⅢC T80℃ Db

    CNEx: Exd II CT6 & DIP A20, TA, T6

    Explosion proof certification CNEx12.0006
    IP rated IP68
    Power input AC85-265V, AC24V
    cable output  2 sets G3/4 or NPT3/4
    Window glass Strong temperared glass
    working temperature

    -25~65°C

    optional:-50~65°C

    Netweight 9.5Kg
    max size  for camera 350*80*80mm
    Overall dimension 535*195*194mm
    accessory wiper, sunshiled



    Explosion Proof CCTV Camera Details images:

    ATEX Outdoor Large Size IP68 Stainless Steel 316L Explosion Proof CCTV Camera
