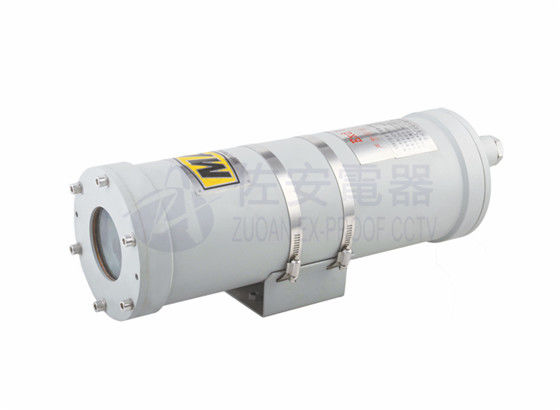

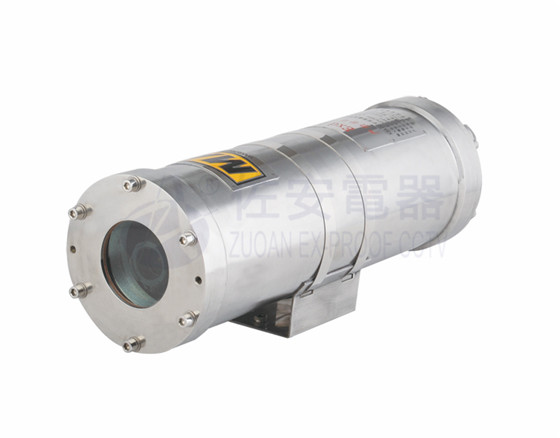

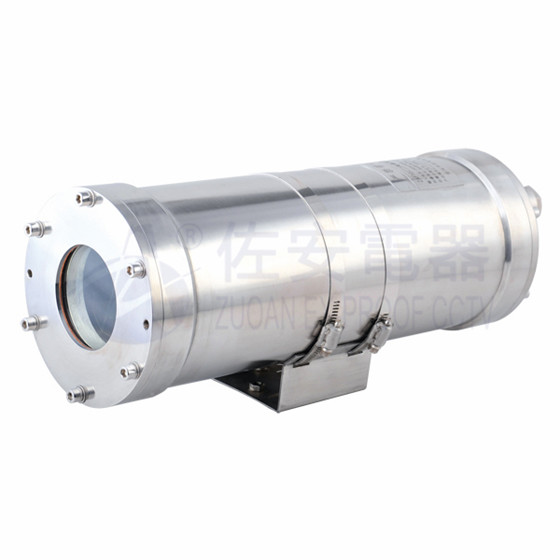

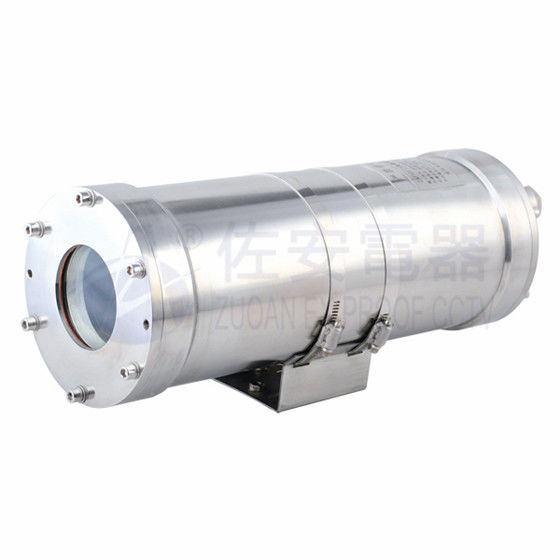

Industrial CNEX Stainless Steel IP68 Ex-proof Explosion Proof Camera Housing

Industrial CNEX Stainless Steel IP68 Ex-proof Explosion Proof Camera Housing

    • Industrial CNEX Stainless Steel IP68 Ex-proof Explosion Proof Camera Housing
    • Industrial CNEX Stainless Steel IP68 Ex-proof Explosion Proof Camera Housing
    • Industrial CNEX Stainless Steel IP68 Ex-proof Explosion Proof Camera Housing
    • Industrial CNEX Stainless Steel IP68 Ex-proof Explosion Proof Camera Housing
    • Industrial CNEX Stainless Steel IP68 Ex-proof Explosion Proof Camera Housing
  • Industrial CNEX Stainless Steel IP68 Ex-proof Explosion Proof Camera Housing

    Product Details:

    Place of Origin: China
    Brand Name: ZUOAN
    Certification: CNEX
    Model Number: ZAF102-SC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 0-600 USD
    Packaging Details: firm carton or wooden box
    Delivery Time: in stock
    Payment Terms: 100% TT before shipment
    Supply Ability: 1000 set per month
    price term: EXW price
    Contact Now
    Detailed Product Description
    Type: Digital Camera Style: Bullet Camera
    Sensor: CMOS Technology: Explosion Proof Camera
    Special Features: IP68 Ingress: IP68
    Housing: Stainless Steel 304 Optional: Cooling Module
    Camera: Analog Camera Core, Or Network Camera Weight: 7.8KG



    Industrial CNEX Stainless Steel IP68 Ex-proof Explosion Proof Camera Housing



    Main features:Industrial CNEX Stainless Steel IP68 Ex-proof Explosion Proof Camera Housing

    ·CNEx certificated
    ·Adopts stainless steel 304
    ·Surface finish: electropolished or corrosion resistant paint finish
    ·IP68
    ·2 cable glands
    ·Tempered glass with nanometer paint film
    ·applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
    ·installation: mounted on ceiling, wall with pan &tilt, brackets.
    ·optional accessories: lens decoder, auto-heating, auto-cooling modular.
    ·Communication and : Pelco-D/ Pelco-P
    ·Output: AV/optical fiber/twisted pair/H.264





    Download Its Data Sheet Here:



    Explosion Proof CCTV Camera Housing -ZAF102 series data sheet.pdf



    Description:

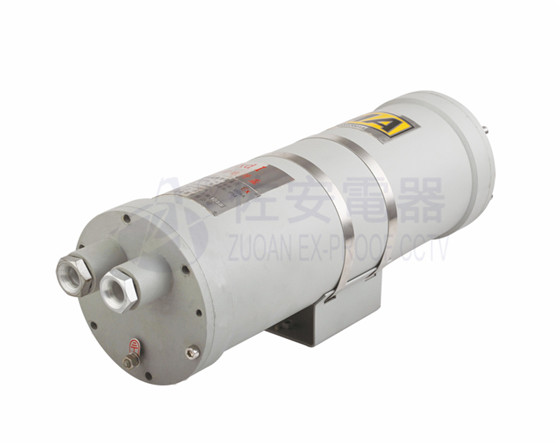

    ZAF102 series is a middle size of stainless steel cctv camera housings/ cavity/ enclosure. it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAF102 series's explosion proof marking is Exd II CT6/DIP A20 TA, T6. its dust protection rate reaches to IP68 . ZUOAN camera housing adopts Stainless steel 304 or 316L material, which also named as corrosion proof CCTV camera, dust proof CCTV camera, weather proof CCTV camera, flame proof CCTV camera. ZAF102 housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish, according to customer requirement. for one point surveillance; it also can be mounted on rotating pan&tilt (model ZAY200B) for 128 points preset and auto patrol. At the housing end flange, there're 2 threaded holes for video cable and power cable. its size is G3/4 (inner diameter is 20mm). ZAF102 camera housing inner Size: 260*70*70mm, net weight: 7.8KG. 98% box cameras on the market can be installed in our stainless steel housing. Customers can offer camera and let us to make free installation. on the other hand, ZUOAN also offer integrated housing with installed camera.

      Industrial CNEX Stainless Steel IP68 Ex-proof Explosion Proof Camera Housing

    Applications:

    With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.

    Data sheet:

    ZAF102
    Crust stainless steel 304/ 316L
    Explosion proof marking Exd II CT6 & DIP A20, TA, T6
    Explosion proof certification CNEx12.0004
    IP rated IP68
    Power input AC85-265V, AC24V
    cable output  2 sets G3/4 or NPT3/4
    Window glass Strong temperared glass
    working temperature

    -25~65°C

    optional:-50~65°C

    Netweight 7.8Kg
    max size  for camera 300L*70W*75H mm
    Overall dimension 421*132*155
    accessory

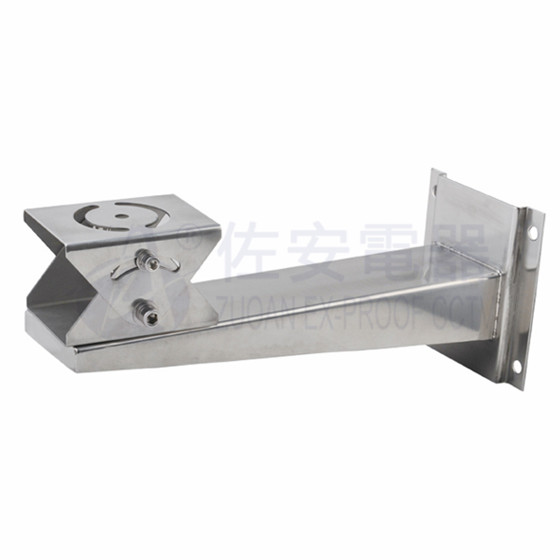

    wall bracket ZAZ100B

    explosion proof Flexible tube D16*1000mm
