Flameproof Stainless Steel IP68 Explosion Proof Camera Housing

Basic Information
Place of Origin: China
Brand Name: ZUOAN
Certification: CNEX
Model Number: ZAF100B
Minimum Order Quantity: 1 set
Price: 0-600 USD
Packaging Details: firm carton or wooden box
Delivery Time: in stock
Payment Terms: 100% TT before shipment
Supply Ability: 1000 set per month
Ingress: IP68 Housing: Stainless Steel 304/316L
Optional: Heater, Cooling Module Camera: Analog Camera Core, Or Network Camera
Weight: 7.5KG

Flameproof Stainless Steel IP68 Explosion Proof Camera Housing



Main features:

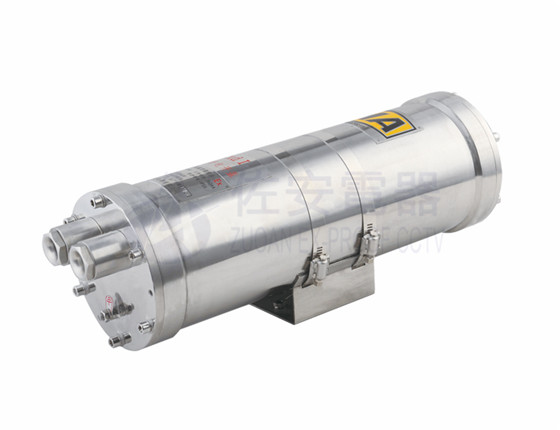

Flameproof Stainless Steel IP68 Explosion Proof Camera Housing 0

·CNEx certificated
·Explosion Proof Certification: CNEx12.0006
·Explosion Proof Marking: Exd II CT6 & DIP A20, TA, T6
·Fit for gas zone 1, 2;  dust zone 20, 21,22.
·Adopts stainless steel 304 or 316L
·Surface finish: electropolished or corrosion resistant paint finish
·IP68
·2 cable glands G3/4(NPT3/4)
·Strong Tempered glass with nanometer paint film
·applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
·installation: mounted on ceiling, wall with pan &tilt, brackets.


Download Data Sheet Here:

Explosion Proof CCTV Camera Housing -ZAF100B series data sheet.pdf





Flameproof Stainless Steel IP68 Explosion Proof Camera Housing Description:

ZAF100B is featured as flameproof stainless steel IP68 explosion proof camera housing. It is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAF102 series's explosion proof marking is Exd II CT6/DIP A20 TA, T6. its dust protection rate reaches to IP68 . ZUOAN camera housing adopts Stainless steel 304 or 316L material, which also named as corrosion proof CCTV camera, dust proof CCTV camera, weather proof CCTV camera, flame proof CCTV camera. ZAF102 housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish, according to customer requirement. for one point surveillance; it also can be mounted on rotating pan&tilt (model ZAY200B) for 128 points preset and auto patrol. At the housing end flange, there're 2 threaded holes for video cable and power cable. its size is G3/4 (inner diameter is 20mm).  98% box cameras on the market can be installed in our stainless steel housing. Customers can offer camera and let us to make free installation. on the other hand, ZUOAN also offer integrated housing with installed camera.

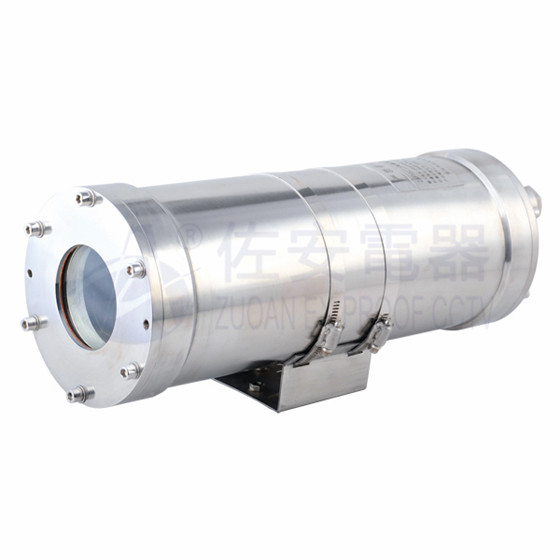

   Flameproof Stainless Steel IP68 Explosion Proof Camera Housing 1

Flameproof Stainless Steel IP68 Explosion Proof Camera Housing Applications:

With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.



Flameproof Stainless Steel IP68 Explosion Proof Camera Housing Data sheet:

ZAF100B
Crust stainless steel 304/ 316L
Explosion proof marking Exd II CT6 & DIP A20, TA, T6
Explosion proof certification CNEx12.0006
IP rated IP68
Power input AC85-265V, AC24V
cable output  2 sets G3/4 or NPT3/4
Window glass Strong temperared glass
working temperature

-25~65°C

optional:-50~65°C

Netweight 7.8Kg
Overall dimension 421*132*155mm
accessory

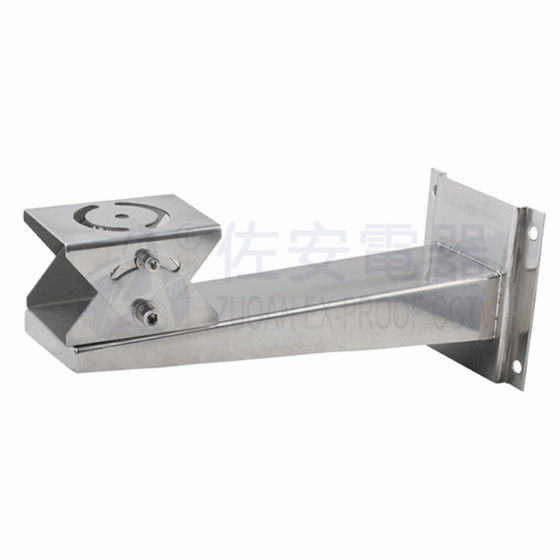

wall bracket ZAZ100B

explosion proof Flexible tube D16*1000mm







Other products:

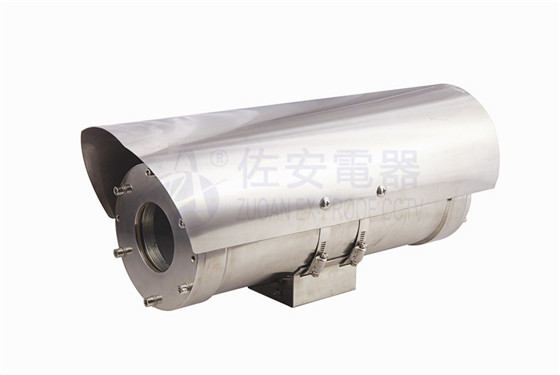

Flameproof Stainless Steel IP68 Explosion Proof Camera Housing 2

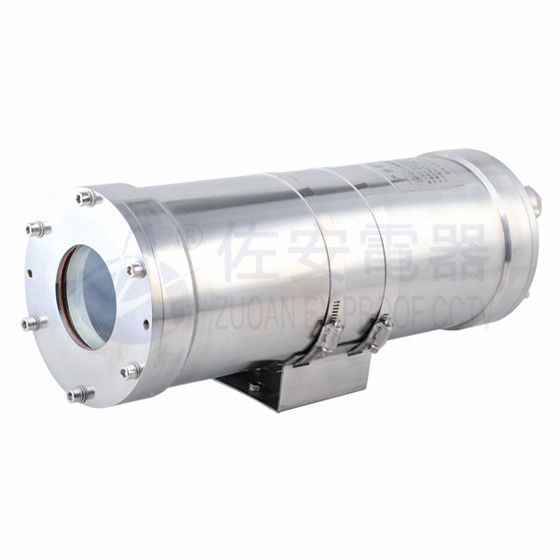

   Flameproof Stainless Steel IP68 Explosion Proof Camera Housing 3

ATEX large size explosion proof CCTV camera with wiper
Flameproof stainless steel explosion proof camera housing
Air cooling explosion proof heat resistant camera housing for furnace
Infrared light flame proof explosion proof camera housing
700TVL night vision flame proof mini explosion protected camera with infrared lights
360 degree auto tracking ATEX explosion proof ptz camera
2MP 20X long range night vision explosion proof ptz camera with laser lights
2MP 20X explosion proof dome camera with infrared light


Special order/ requirements

Contact us for special requirements, Email: info@exproofcctv.com
