Flameproof Stainless Steel IP68 Explosion Proof Junction Box For Hazardous Area

Brand Name:	ZUOAN
Model Number:	ZAJXD4-S
MOQ:	1pcs
Price:	0-150USD
Payment Terms:	100% TT
Supply Ability:	1000 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNEX

Ingress:

IP68

Enclosure:

Stainless Steel 304

Cable Hole:

4 Sets Of G3/4

Net Weight:

3.5KG

Packaging Details:

firm carton

Highlight:

explosion proof

junction box

IP68 junction box

Product Description

Flameproof Stainless Steel IP68 Explosion Proof Junction Box

Main features:

Pressure: 80KPa~106KPa
Ambient temperature: –25°C~+60°C
Relative humidity: less than 95%(+25°C)
Ex-proof marking: ExdⅡCT6
Enclosure degree: IP68
Working voltage: AC220V(198-242V)
Wiring mouth: 4 access
Max connection cable: 7core cable
Max current: 21A
Overall dimension: 187mmX 187mmX 84mm
304 stainless steel(used in chemical industry,outdoor,acid and alkali circumstances)
NW: 3.5 Kg
Install method: Wall mounting, recommendingZAZ100-B bracket,lifting or installed on pan/tilt

Flameproof Stainless Steel IP68 Explosion Proof Junction Box For Hazardous Area 0
Applications:

With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.

Data sheet:

Model	ZAJXD-S
crust	stainless steel 304
explosion proof marking	Exd II CT6
explosion proof certification	CNEx11.0529
application	gas zone 1, zone 2
IP rated	IP68
terminal block	6 pairs
water seal O-ring	Yes
cable threaded hole	4 sets G3/4 (or NPT3/4)
Net weight	3.5Kg
Overall dimension	18718784mm

Details images:

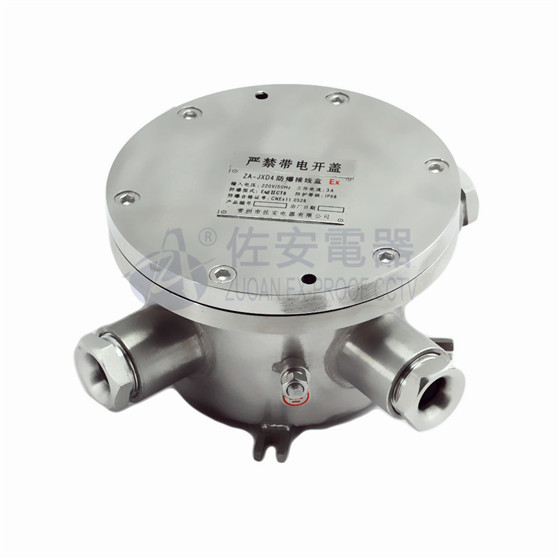

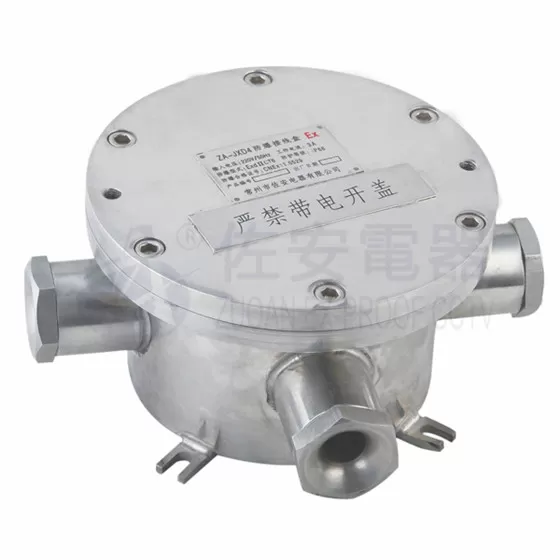

Flameproof Stainless Steel IP68 Explosion Proof Junction Box For Hazardous Area 1

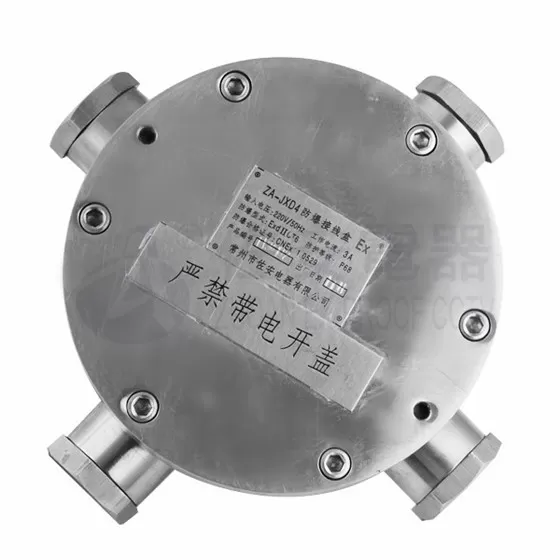

Flameproof Stainless Steel IP68 Explosion Proof Junction Box For Hazardous Area 3
