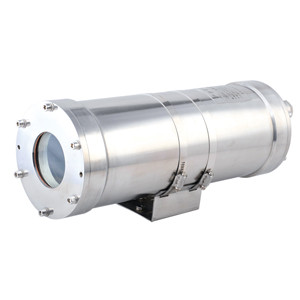

700TVL 36X Anti-explosion Explosion Proof CCTV Camera For Industry Hazardous Area

700TVL 36X Anti-explosion Explosion Proof CCTV Camera For Industry Hazardous Area

    • 700TVL 36X Anti-explosion Explosion Proof CCTV Camera For Industry Hazardous Area
    • 700TVL 36X Anti-explosion Explosion Proof CCTV Camera For Industry Hazardous Area
    • 700TVL 36X Anti-explosion Explosion Proof CCTV Camera For Industry Hazardous Area
    • 700TVL 36X Anti-explosion Explosion Proof CCTV Camera For Industry Hazardous Area
    • 700TVL 36X Anti-explosion Explosion Proof CCTV Camera For Industry Hazardous Area
  • 700TVL 36X Anti-explosion Explosion Proof CCTV Camera For Industry Hazardous Area

    Product Details:

    Place of Origin: China
    Brand Name: ZUOAN
    Certification: CNEX
    Model Number: ZAF102-S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 0-1000 USD
    Packaging Details: firm carton or wooden box
    Delivery Time: in stock
    Payment Terms: 100% TT before shipment
    Supply Ability: 1000 set per month
    price term: EXW price
    Contact Now
    Detailed Product Description
    Type: Analog Camera Style: Box Camera
    Sensor: CCD Special Features: Waterproof / Weatherproof
    Technology: Anti-explosion Ingress: IP68
    Housing: Stainless Steel 304/316L Optional: Heater, Cooling Module
    Camera: Analog Camera Core, Or Network Camera Weight: 7.8KG
    Weather Proof: IP68 Inner Size For Camera: 300*70*75mm

    700TVL 36X Anti-explosion Explosion Proof CCTV Camera  For Industry Hazardous Area



    Main features:

    700TVL 36X Anti-explosion Explosion Proof CCTV Camera For Industry Hazardous Area

    * CNEx certificated
    * Explosion Proof Certification: CNEx12.0004
    * Explosion Proof Marking: Exd II CT6 & DIP A20, TA, T6
    * Fit for gas zone 1, 2;  dust zone 20, 21,22.
    * Adopts stainless steel 304 or 316L

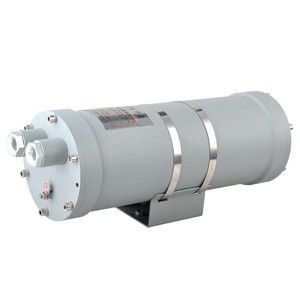

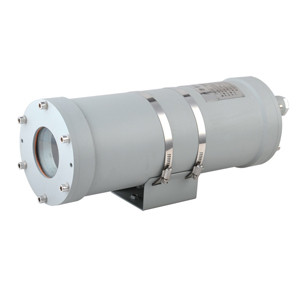

    * Surface finish: electropolished or corrosion resistant paint finish
    * IP68 for weather proof

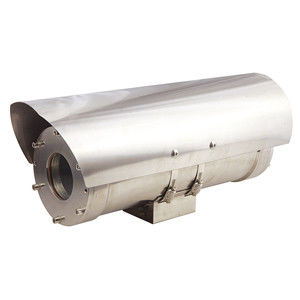

    * Equipped with auto wiper system and sunshiled for heavy polluted area
    * 2 cable glands G3/4(NPT3/4)
    * Strong Tempered glass with nanometer paint film
    * Applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
    * Installation: mounted on ceiling, wall with pan &tilt, brackets.
    * Inner size for camera:300*70*75mm (LxWxH)
    * Operation temperature: -25 to 65 degree centigrade
                                               -50 to +65 degree centigrade
    * can load Sony camera, SAMSUNG camera, Hikvision Camera, Dahua Camera, thermal camera
    * Camera:700TVL, 23X or 36X Sony zoom camera


    Download Data Sheet Here:

    Explosion Proof CCTV Camera Housing -ZAF102 series data sheet.pdf




    Description:



    ZAF102 series is a middle size of explosion proof cctv camera housing, which is loaded with Sony 550TVL 36X zoom camera. it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAF102 series's explosion proof marking is Exd II CT6/DIP A20 TA, T6. its dust protection rate reaches to IP68 . ZUOAN camera housing adopts Stainless steel 304 or 316L material, which also named as corrosion proof CCTV camera, dust proof CCTV camera, weather proof CCTV camera, flame proof CCTV camera. ZAF102 housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish, according to customer requirement. for one point surveillance; it also can be mounted on rotating pan&tilt (model ZAY200B) for 128 points preset and auto patrol. At the housing end flange, there're 2 threaded holes for video cable and power cable. its size is G3/4 (inner diameter is 20mm). ZAF102 camera housing inner Size: 300*70*75mm, net weight: 7.8KG. 98% box cameras on the market can be installed in our stainless steel housing. Customers can offer camera and let us to make free installation. on the other hand, ZUOAN also offer integrated housing with installed camera.

     700TVL 36X Anti-explosion Explosion Proof CCTV Camera For Industry Hazardous Area



     Applications:

    With stringent certifications, anti-explosion camera enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.



    Data sheet:



    Certificate

    Certificate Mark ExdⅡC T6 GB/DIP A20 TA, T6
    Certificate No CNEx12.0004
    Standards Q/320412ZAF002-2001

    Mechanical

    Housing Stainless steel 304 or 316L
    IP IP68
    Cable thread hole 2pcs G3/4 or NPT3/4
    Sun-shield No
    Wiper No

    Electrical

    Voltage AC85V~AC265V or DC24Vor AC24V
    Power 15W/25W (with thermostat)
    Surge Protect Optional, TVS6000V surge protect
    Optical Fiber output Optional, multimode or single mode

    Ambient

    Ambient temperature -25 to +60℃ / -45 to +80℃
    Air pressure 80Kpa to 106Kpa
    Relative Humidity ≦95% (no condensation)

    Communication

    Communication support analog video output
    485 Communication Support Pelco-D, Pelco-P
    Communicate Rate 2400 to 19200bps

    Camera

    Image Sensor 1/3" interline-transfer CCD
    Effective pixel PAL 976*582 NTSC 976*494
    Min. Illumination Color 0.04Lux B/W: 0.004Lux
    Shutter Time 1/50(1/60) sec~ 1/10,000 sec
    Day&Night Auto ICR
    Horizontal resolution 700TVL (color), 720TVL (B&W)
    S/N ratio >50dB(AGC off)

    Lens

    Focal Length 4-92mm, 23X/or 36X optical
    Aperture Range F1.5-F3.6
    Angle of View 49-2.2 degree(Wide-Tele)
    Min. Working Distance 10mm-1500mm(Wide-Tele)
    Zoom Speed Approx. 3s(Optical, Wide-Tele)

    Control

    Camera address on/off (0-254)
    Focus Mode Auto/Manual/One touch
    Gain off/ lower/ higher
    Slow shutter X256 MAX
    White Balance Auto white balance 1/auto white balance 2/Manual/auto
    Private Off/ Mode 1/ Mode 2
    Video 3D DNR, mirror, brightness, Contrast, Sharpness adjustable
    Digital zoom X16
    Zoom display on/off
    ZCF control mode mode 1, mode 2
    RS485 protocol, baud rate, address

    General

    Cable integrated cable
    Size 421*155*185mm
    Weight 7.8kg
    Mounted wall, pole
    Wall bracket ZAZ100B
