1.3MP 20X Explosion Proof Coal Mine CCTV Camera With Optical Fiber Output

Basic Information
Place of Origin: China
Brand Name: ZUOAN
Certification: MA, CNEX
Model Number: KBA167B
Minimum Order Quantity: 1 set
Price: 0-600 USD
Packaging Details: firm carton or wooden box
Delivery Time: in stock
Payment Terms: 100% TT before shipment
Supply Ability: 1000 set per month
Type: Digital Camera Style: Box Camera
Sensor: CMOS Technology: NetWork
Special Features: Explosion Proof Housing: Stainless Steel 304
Camera: 1.3MP 20X Zoom Camera Weight: 12KG
Overall Dimension: 430*165*266mm Cold Lights: 30m Distance

1.3MP 20X Explosion Proof Coal Mine CCTV Camera With Optical Fiber Output



Coal Mine CCTV Camera Main features:

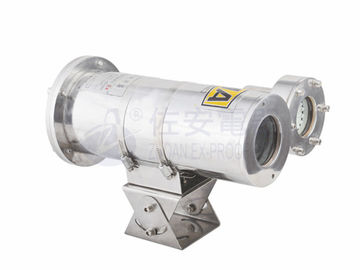

1.3MP 20X Explosion Proof Coal Mine CCTV Camera With Optical Fiber Output 0


* MA,CNEx certificated
* Explosion Proof Certification: 21020008
* Coal mine safety certification: MAK100015
* Explosion Proof Marking: Exd I
* Fit for under coal mine surveillance system
* Adopts stainless steel 304
*Cold Lights: 30m distance
* Camera: 1.3MP, 20X zoom Camera
* AC127V , 50Hz
* working wave length: 1310nm
* (DBM) Optical singal power:-12 to -4
* Transmit distance:  20km
* Optical output: FC port
* Video output: 1channel optical, 1 channel network
* Overall dimension:430*165*266mm
* Operation temperature: 0 to 40 degree centigrade



Coal Mine CCTV Camera  Description:

KBA167B series is ZUOAN developed explosion proof  coal mine cctv camera, which can apply for underground coal mining surveillance system. Equipped with cold lights, it has 30m distance at dark area.   It has get the coal mine safety certification, and explosion proof certification. It is marked as Exd I , which loads 1.3MP 20X  HD camera inside.

KBA167B is also equipped with single mode signal channel optical transmitter and receiver. Its output is by optical fiber, which can transmit 20km long.



Coal Mine CCTV Camera Applications:

With stringent certifications, KBA24 can apply for underground coal mine industry surveillance system.



Coal Mine CCTV Camera Data sheet:

KBA167B
Crust stainless steel 304
Explosion proof marking Exd I
Explosion proof certification 21020008
Mine safety  assurance certification MAK100015
Power supply AC127V, 50Hz
Video Power less than 30VA
Working temperature 0-40 °C
air pressure 80-106KPA
relative humidity ≤95%  (+25°C)
Netweight 12kg
overall dimension 430*165*266mm
Camera

1/3-type CMOS (PS)

1.3MP, 20X optical,

4.1-94mm Lens, 0.05Lux

58.3° (wide end) to 3.2° (tele end)

Optical Output FC port
Video output 1 channel optical port, 1 channel network port
Transmit distance 20km
working wave length 1310nm
Optical singal power -12 to -4 DBM



Coal Mine CCTV Camera Details images:

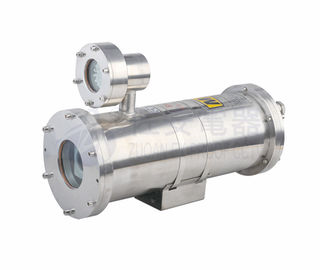

    1.3MP 20X Explosion Proof Coal Mine CCTV Camera With Optical Fiber Output 1

Mounted hole size:



1.3MP 20X Explosion Proof Coal Mine CCTV Camera With Optical Fiber Output 2
