-50 Celsius Ultra-low Temperature Resistant IP68 Explosion Proof Camera Housing

Basic Information
Place of Origin: China
Brand Name: ZUOAN
Certification: CNEX
Model Number: ZAF102-SSHC
Minimum Order Quantity: 1 set
Price: 0-600 USD
Packaging Details: firm carton or wooden box
Delivery Time: in stock
Payment Terms: 100% TT before shipment
Supply Ability: 1000 set per month
Ingress: IP68 Housing: Stainless Steel316L
Optional: Heater, Cooling Module Camera: Analog Camera Core, Or Network Camera
Weight: 7.8KG

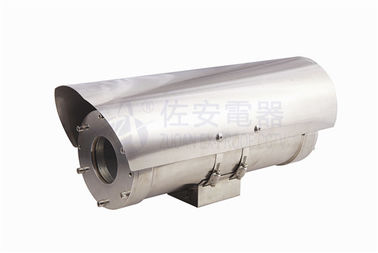

-50 Celsius Ultra-low Temperature Resistant IP68 Explosion Proof Camera Housing





Main features:-50 Celsius Ultra-low Temperature Resistant IP68 Explosion Proof Camera Housing 0

·CNEx certificated
·Adopts stainless steel316L
·Surface finish: electropolished or corrosion resistant paint finish
·IP68
·2 cable glands
·Tempered glass with nanometer paint film
·applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
·installation: mounted on ceiling, wall with pan &tilt, brackets.
·optional accessories: lens decoder, auto-heating, auto-cooling modular.
·Communication and : Pelco-D/ Pelco-P
·Output: AV/optical fiber/twisted pair/H.264





Download Data Sheet Here:



Explosion Proof CCTV Camera Housing -ZAF102 series data sheet.pdf





 Description:

ZAF102 series is a middle size of stainless steel cctv camera housings/ cavity/ enclosure. it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAF102 series's explosion proof marking is Exd II CT6/DIP A20 TA, T6. its dust protection rate reaches to IP68 . ZUOAN camera housing adopts Stainless steel 304 or 316L material, which also named as corrosion proof CCTV camera, dust proof CCTV camera, weather proof CCTV camera, flame proof CCTV camera. ZAF102 housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish, according to customer requirement. for one point surveillance; it also can be mounted on rotating pan&tilt (model ZAY200B) for 128 points preset and auto patrol. At the housing end flange, there're 2 threaded holes for video cable and power cable. its size is G3/4 (inner diameter is 20mm). ZAF102 camera housing inner Size: 260*70*70mm, net weight: 7.8KG. 98% box cameras on the market can be installed in our stainless steel housing. Customers can offer camera and let us to make free installation. on the other hand, ZUOAN also offer integrated housing with installed camera.

 -50 Celsius Ultra-low Temperature Resistant IP68 Explosion Proof Camera Housing 1



Applications:



With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.



Data sheet:



ZAF102
Crust stainless steel 304/ 316L
Explosion proof marking Exd II CT6 & DIP A20, TA, T6
Explosion proof certification CNEx12.0004
IP rated IP68
Power input AC85-265V, AC24V
cable output  2 sets G3/4 or NPT3/4
Window glass Strong temperared glass
working temperature

-25~65°C

optional:-50~65°C

Netweight 7.8Kg
max size  for camera 300L*70W*75H mm
Overall dimension 421*132*155
accessory

wall bracket ZAZ100B

explosion proof Flexible tube D16*1000mm
