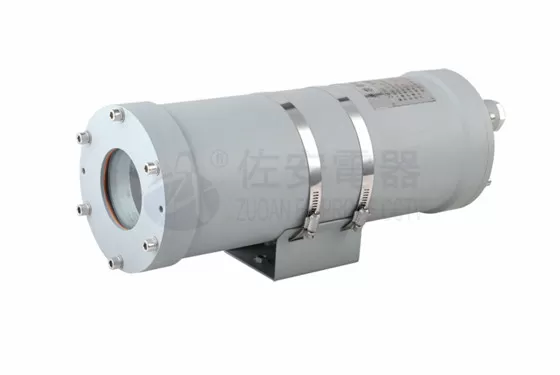

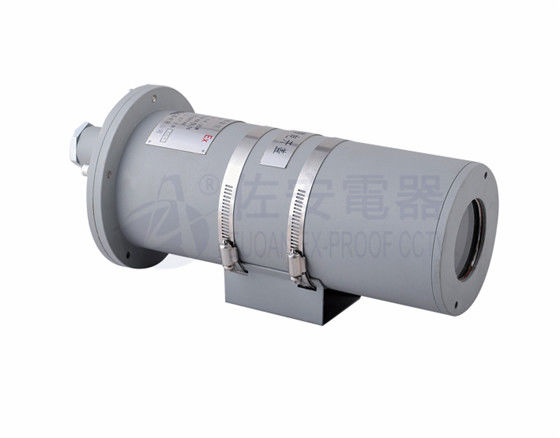

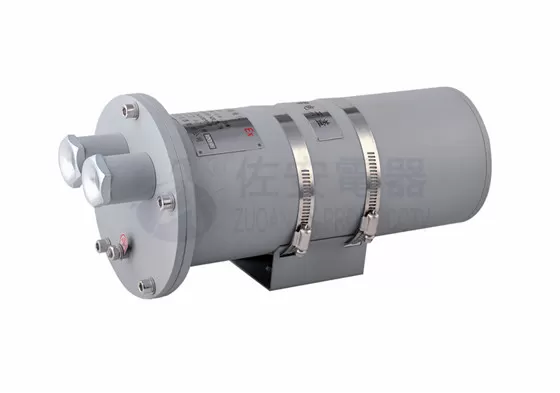

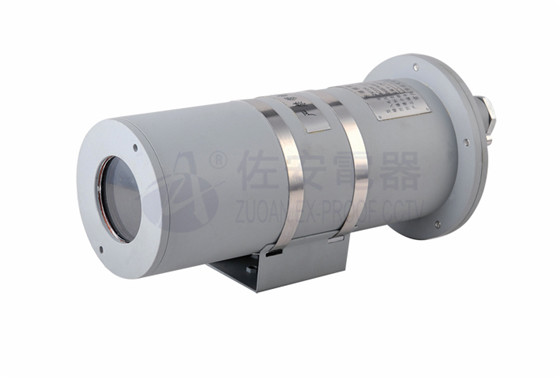

Middle Size Anti-corrosion Stainless Steel 316L Explosion Proof Camera Housing
Main features:
* CNEx certificated
* Explosion Proof Certification: CNEx13.2138
* Explosion Proof Marking: Exd II BT6 & DIP A20, TA, T6
* Fit for gas zone 1, 2; dust zone 20, 21,22.
* Adopts stainless steel 304 or 316L
* Surface finish: with anti-corrosion proof painting, which is more fit for industry aggressive area, like marine, chemical factory ect.
* IP68 weather proof
* 2 cable glands G3/4(NPT3/4)
* Strong Tempered glass with nanometer paint film
* Applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
* installation: mounted on ceiling, wall with pan &tilt, brackets.
* Inner size for camera:260*80*80mm (LxWxH)
* operation temperature: -25 to 65 degree centigrade
-50 to +65 degree centigrade
Download Data Sheet Here:
Middle Size Anti-corrosion Stainless Steel 316L Explosion Proof Camera Housing Description:
Model ZAF105 is featured as middle size anti-corrosion stainless steel 316L explosion proof camera housing. It is widely used in industry more aggressive area, like marine, offshore platform, chemical factory, ocean shipping ect. Its housing is added with an-corrosion painting. Inner crust is stainless steel 316L material.
It is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAF105 series's explosion proof marking is Exd II CT6/DIP A20 TA, T6. its dust protection rate reaches to IP68 . ZUOAN camera housing adopts Stainless steel 304 or 316L material, which also named as corrosion proof CCTV camera, dust proof CCTV camera, weather proof CCTV camera, flame proof CCTV camera. ZAF105 housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish, according to customer requirement. for one point surveillance; it also can be mounted on rotating pan&tilt (model ZAY200B) for 128 points preset and auto patrol. At the housing end flange, there're 2 threaded holes for video cable and power cable. its size is G3/4 (inner diameter is 20mm). ZAF105 camera housing inner Size: 260*80*80mm, net weight: 5.5KG. 98% box cameras on the market can be installed in our stainless steel housing. Customers can offer camera and let us to make free installation. on the other hand, ZUOAN also offer integrated housing with installed camera.
Middle Size Anti-corrosion Stainless Steel 316L Explosion Proof Camera Housing Applications:
With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.
Middle Size Anti-corrosion Stainless Steel 316L Explosion Proof Camera Housing Data sheet:
| ZAF105 |
|
| Crust |
stainless steel 304/ 316L |
| Explosion proof marking |
Exd II CT6 & DIP A20, TA, T6 |
| Explosion proof certification |
CNEx13.2138 |
| IP rated |
IP68 |
| Power input |
AC85-265V, AC24V |
| cable output |
2 sets G3/4 or NPT3/4 |
| Window glass |
Strong temperared glass |
| working temperature |
-25~65°C
optional:-50~65°C
|
| Netweight |
5.5Kg |
| max size for camera |
260*80*80 mm |
| Overall dimension |
329*169*173mm |
| accessory |
wall bracket ZAZ100B
explosion proof Flexible tube D16*1000mm
|
