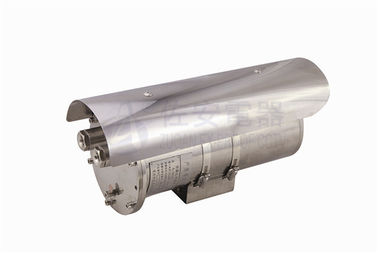

Stainless Steel IP68 Flame Proof Explosion Proof CCTV Camera Housing With Wiper

Stainless Steel IP68 Flame Proof Explosion Proof CCTV Camera Housing With Wiper

Brand Name: ZUOAN
Model Number: ZAF100A-S-M
MOQ: 1 set
Price: 0-600 USD
Payment Terms: 100% TT before shipment
Supply Ability: 1000 set per month
Detail Information
Place of Origin:
China
Certification:
CNEX
Ingress:
IP68
Housing:
Stainless Steel 304/316L
Optional:
Heater, Cooling Module
Camera:
Analog Camera Core, Or Network Camera
Weight:
7.5KG
Weather Proof:
IP68
Inner Size For Camera:
260*80*80mm
Packaging Details:
firm carton or wooden box
Product Description

Stainless Steel IP68 Flame Proof Explosion Proof CCTV Camera Housing



Main features:

Stainless Steel IP68 Flame Proof Explosion Proof CCTV Camera Housing With Wiper 0

* CNEx certificated
* Explosion proof certified No.:CNEx12.0006
* Explosion proof marking: Exd II CT6&DIP A20, TA, T6
* Apply for gas zone 1,2; dust zone 20, 21,22.
* Adopts stainless steel 304,316L
* Surface finish: electropolished or corrosion resistant paint finish
* IP68
* With self cleaning wiper system and sunshiled
* 2 cable glands (NPT3/4 or G3/4)
* Tempered glass with nanometer paint film
* applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
* installation: mounted on ceiling, wall with pan &tilt, brackets.
* Housing inner size for camera:260*80*80mm (L*W*H)
* Operation temperature: -50 to 65 degree centigrade or -25 to 65 degree centigrated
* Netweight: 7.5KG
* Fit for analog camera, HD camera, bullet camera, box camera

Download Data Sheet Here:




Stainless Steel IP68 Flame Proof Explosion Proof CCTV Camera Housing Description:



ZAF100A-S-M  series is a middle size of stainless steel IP68 explosion proof cctv camera housing, which is equipped with self-cleaning wiper system and sunshield. it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAF100A-S-M series's explosion proof marking is Exd II CT6/DIP A20 TA, T6. its dust protection rate reaches to IP68 . ZUOAN camera housing adopts Stainless steel 304 or 316L material, which also named as corrosion proof CCTV camera, dust proof CCTV camera, weather proof CCTV camera, flame proof CCTV camera. ZAF100A-S-M housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish, according to customer requirement. for one point surveillance; it also can be mounted on rotating pan&tilt (model ZAY200B) for 128 points preset and auto patrol. At the housing end flange, there're 2 threaded holes for video cable and power cable. its size is G3/4 (inner diameter is 20mm). ZAF100A-S-M camera housing inner Size: 260*80*80mm, net weight: 7.5KG. 98% box cameras on the market can be installed in our stainless steel housing. Customers can offer camera and let us to make free installation. on the other hand, ZUOAN also offer integrated housing with installed camera.

 Stainless Steel IP68 Flame Proof Explosion Proof CCTV Camera Housing With Wiper 1

Stainless Steel IP68 Flame Proof Explosion Proof CCTV Camera Housing  Applications:



With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.



Stainless Steel IP68 Flame Proof Explosion Proof CCTV Camera Housing  Data sheet:



ZAF100A-S-M
Crust stainless steel 304/ 316L
Explosion proof marking Exd II CT6 & DIP A20, TA, T6
Explosion proof certification CNEx12.0006
IP rated IP68
Power input AC85-265V, AC24V
cable output  2 sets G3/4 or NPT3/4
Window glass Strong tempered glass
working temperature

-25~65°C

optional:-50~65°C

Netweight 7.5Kg
max size  for camera 260L*80W*80H mm
Overall dimension 386*140*145mm
accessory

wall bracket ZAZ100B

explosion proof Flexible tube D16*1000mm

explosion proof cable junction box ZAJXD4
