Corrosion Proof Stainless Steel 2MP 37X optical Network Crane Dumping Camera

Name: Corrosion Proof Stainless Steel 2MP 37X optical Network Crane Dumping Camera
Brand: CHANGZHOU ZUOAN ELETRONICS CO., LTD.
SKU: ZAZN04
Price: 4000 USD
Availability: InStock

Brand Name:	ZUOAN
Model Number:	ZAZN04
MOQ:	1 set
Price:	4000 USD
Payment Terms:	T/T
Supply Ability:	100 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Type:

Network Camera

Material:

Stainless Steel 316L

Resolution:

2 Mega Pixel

Technology:

Crane Dumping

Special Features:

Corrosion Proof

Color:

Gray

Zoom:

37X Optical Zoom

Focal Length:

6.5-240mm

Stable Type:

Oil Pressured Type

Impact Speed:

5m/s

Packaging Details:

firm carton or wooden box

Product Description

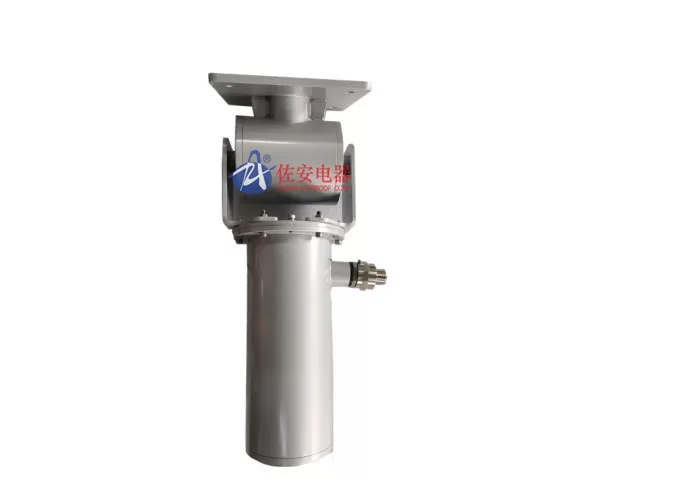

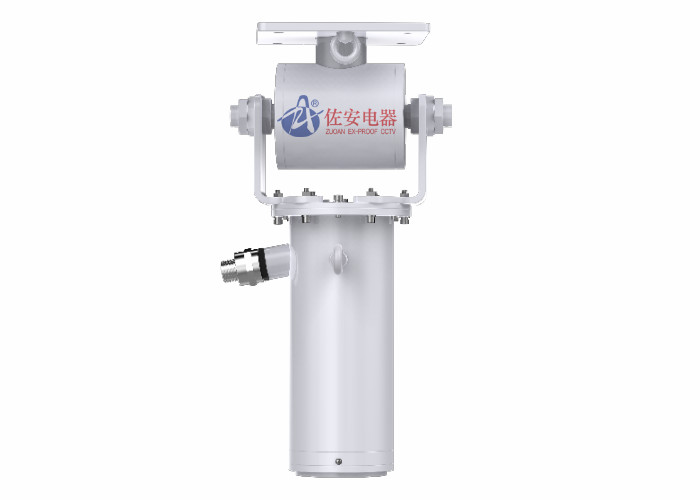

Corrosion Proof Stainless Steel 2MP 37X optical Network Crane Dumping Camera

Corrosion Proof Stainless Steel 2MP 37X optical Network Crane Dumping Camera 0

Crane Dumping CCTV camera introduction:

ZAZN04 is ZUOAN 2020 year new upgrade corrosion proof crane dumping CCTV camera, which can widely apply for crane, head mast, luntai bridge crane, stacker-reclaimer. with corrosion proof Stainless steel 304, 316L crust, can also used for more aggressive area, like marine, offshore ect. our crane dumping CCTV camera is equipped with 100m distance laser light, which can also working at dark night. within 2MP 37X optical zoom camera, to catch a stable and clear images.

our crane dump CCTV camera also integrated with wiper system, self-clean window, more fit for polluted working area.

one crane TV system include: crane camera, control box, monitor

Crane Dumping CCTV camera specification:

Mechanical

Housing	Stainless steel 304 or 316L
IP	IP68
Cable thread hole	2pcs G3/4 or NPT3/4
Stable type	oil pressured type
Impact speed	5m/s
Swing angle	≤2.5°
Return back time	≤1.5s

Electrical

Voltage	AC100-240V, AC24V or POE
Power	8W

Ambient

Ambient temperature	-25 to +60℃
Air pressure	80Kpa to 106Kpa
Relative Humidity	≦95% (no condensation)

Camera

Image sensor	1/1.8” Progressive Scan CMOS
Minimum Illumination	Color:0.0005 Lux @(F1.5,AGC ON); B/W:0.0001Lux @(F1.5,AGC ON)
Shutter	1/25s to 1/100,000s；Supports delayed shutter
Autoiris	DC
Day/Night Switch	IR cut filter
Digital zoom	16X
lens
Focal Length	6.5-240mm,37X Optical Zoom
Aperture Range	F1.5-F4.8
Horizontal field of view	70.0-2.51°(wide-tele)
Minimum Working distance	100mm-1500mm (wide-tele)
Zoom speed	Approximately 3.5s(optical lens, wide to tele)
Compression Standard
Video Compression	H.265 / H.264 / MJPEG
H.265 Type	Main Profile
H.264 Type	BaseLine Profile / Main Profile / High Profile
Video Bitrate	32 Kbps~16Mbps
Audio Compression	G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM
Audio Bitrate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726) /32-192Kbps(MP2L2)/16-64Kbps(AAC)
Image(Maximum Resolution:1920 × 1080)
Main Stream	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Third Stream	50Hz: 25fps (1920 ×1080); 60Hz: 30fps (1920 ×1080)
Image settings	Corridor mode, saturation, brightness, contrast, sharpness adjusted by IE/ Client
BLC	Support
Exposure mode	AE / Aperture Priority / Shutter Priority / Manual Exposure
Focus mode	Auto Focus / One Focus / Manual Focus / Semi-Auto Focus
Area exposure / focus	Support
Optical fog	Support
Image stabilization	Support
Day/Night Switch	Automatic, manual, timing, alarm trigger
3D noise reduction	Support
Picture overlay switch	Support BMP 24-bit image overlay, customizable area
Region of interest	ROI supports three streams and four fixed areas
Network
Storage function	Support USB extend Micro SD / SDHC / SDXC card (256G) disconnected local storage, NAS (NFS, SMB / CIFS support)
Protocols	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS, RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6
Interface Protocol	ONVIF(PROFILE S,PROFILE G)

General

Cable	integrated cable (Power+UTP+alarm+audio)
Size	526200249.6mm
Weight	25.9kg
Mount	On crane

Special order/ requirements

Corrosion Proof Stainless Steel Crane Dumping CCTV camera with Laser light
