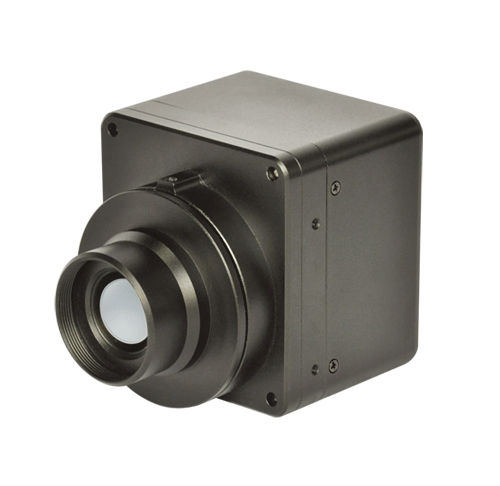

Made in China! thermal camera core

Basic Information
Place of Origin: China
Brand Name: ZUOAN
Certification: CE
Model Number: TC
Price: 1
Packaging Details: firm carton
Delivery Time: in stock
Payment Terms: 100% TT in advance
Supply Ability: 1000 set per month
Type: Analog Camera Style: Box Camera
Sensor: Uncooled VOx Technology: Infrared
Special Features: Thermal Camera
High Light:

thermal camera core


thermal imaging camera


thermal camera core

Made in China! thermal camera core


1. 160x120 pixels, 384x288,640x480 pixels , 25um pixel pitch
2. NETD<65mk
3. Compact and lightweight
4. Analog/Digital video output
5. RS232/RS485 interface

thermal imaging core is a compact, lightweight, all-in-one thermal imager with outstanding sensitivity and excellent image quality. With advanced thermal image processing, TC160 provide crisp thermal video images which can be displayed on virtually any monitor that accepts composite outstanding image quality and sensitivity.
thermal imaging camera cores can be easily integrated into products or systems of customized design. With multi-interface at backside, OEM customers can connect directly to TC core for power in, providing access to the digital video output (LVDS / Parallel data), composite video out (BNC), remote control on PC (RS232 / RS485) functions.
thermal imaging camera cores are convenient to be fixed directly in existed CCTV systems with M3 & 1/4 mounts. It is also easily integrated hundreds of thousands of applications including automotive night vision systems, firefighting equipments, medical instruments, handheld cameras, unmanned vehicles, security & surveillance products, and more.

Key Features
• Compact, lightweight package
• 25-micron pixel pitch, NETD<65mk
• 50Hz frame rate for real time, crisp thermal image video
• Auto/Manual brightness/Contrast adjustment
• Video output in black & white or color palettes
• Analog video output in PAL/NTSC selectable
• Digital video output in LVDS,CMOS and BT.656 options
• Multi-interface for easily embedded application
• 2x digital zoom enables users to see objects details
• RS232/RS485 interface offers access to remote control on PC
• Download newest software and remote updates with RS232/RS485
• Advanced image processing function brings incredible thermal image video
• Professional control software enables users to create their applications
• Available 5 athermalized lenses, 5 manual lenses, and customized lenses

Made in China! thermal camera core 0Made in China! thermal camera core 1Made in China! thermal camera core 2
