1.3MP Oil Vessel Mounted Mini Explosion Protected Camera With Infrared Lights

Basic Information
Place of Origin: China
Brand Name: ZUOAN
Certification: CNEX
Model Number: ZAF109-S-IP
Minimum Order Quantity: 1 set
Price: 0-600 USD
Packaging Details: firm carton or wooden box
Delivery Time: in stock
Payment Terms: 100% TT before shipment
Supply Ability: 1000 set per month
Type: Digital Camera Style: Mini Camera
Sensor: CMOS Technology: NetWork
Certificate: CNEX Ingress: IP68
Housing: Stainless Steel 304 Camera: 1.3MP Camera
Weight: 4KG Infrared Light: 30m Distance

1.3MP Oil Vessel Mounted Mini Explosion Protected Camera With Infrared Lights





Description:

1.3MP Oil Vessel Mounted  Mini Explosion Protected Camera With Infrared Lights 0

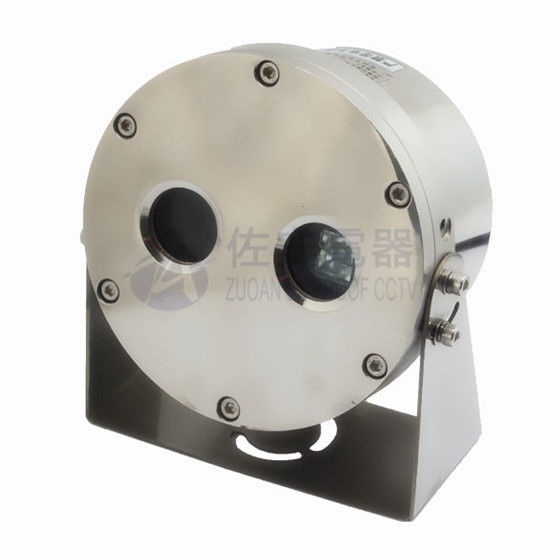

ZAF109-S-IP  is 1.3MP HD mini explosion proof camera monitoring equipment. It can be applied in the explosive gas automosphere, like zone1 and zone2 withⅡA,ⅡB orⅡC, and in flammable dust environment, like zone 20,zone21 and zone22. ZAF109 isinternally installed with the infrared lamp with 20m viewing distance, which is suitbale for a less scope night vision environment inside and outside. The ex-proof frade and temperature groups all accord with the highest requirements of National standards.



Applications:



oil tank truck, dangerous goods vehicle, oil tanker, or other hazardous area, with flammable substance, like oil, fertilizer, gas, chemical agent, dust, power, fireworks, ect.



1.3MP Oil Vessel Mounted  Mini Explosion Protected Camera With Infrared Lights 1



Main features:

ZAF109 mini explosion proof camera has no wiper, but it's window is made of nano glass which has a self- cleaning flunction.

ZAF109 is installed with a 1.3MP HD 1/3" CMOS ICR  camera with a high resolution and a function of automatical switching from color to black.

ZAF109 explosion proof marking is Exd and DIP, products can be widely used in Gas zones and Dust zones.

ZAF109 ingress protection is IP68, get the highest protection grade. ZAF109 weight is 4 KG.



 1.3MP Oil Vessel Mounted  Mini Explosion Protected Camera With Infrared Lights 2



Data sheet:



Model ZAF109-S
IP rated IP68
working temperature -25~65°C
resolution 950TVL / 720P/ 1080P
lens 3.6mm, 4mm, 6mm,12mm,
crust stainless steel 304
Explosion proof Marking Exd II CT6 Gb/ Ex tD A21 IP68 T80℃
Explosion proof certification CNEx16.2526
application Gas zone 1, 2; dust zone 20, 21,22
working current ≤1000ml
power consumption ≤15W
power 12VDC/POE
infrared light 30meter
netweight 4KG
Overall dimension 144*158*167mm
cable output network cable, 2 core power cable
Cable output hole 1 set G3/4 or NPT3/4






Mini Network Explosion Proof Camera with Lights-ZAF109 data sheet.pdf





Accesssories:

1.3MP Oil Vessel Mounted  Mini Explosion Protected Camera With Infrared Lights 3  1.3MP Oil Vessel Mounted  Mini Explosion Protected Camera With Infrared Lights 4

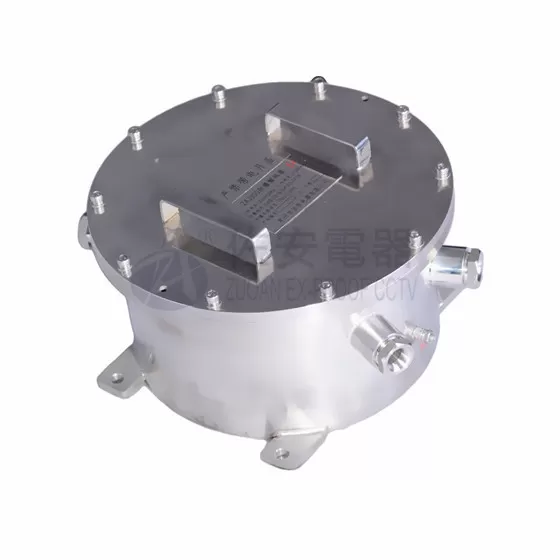

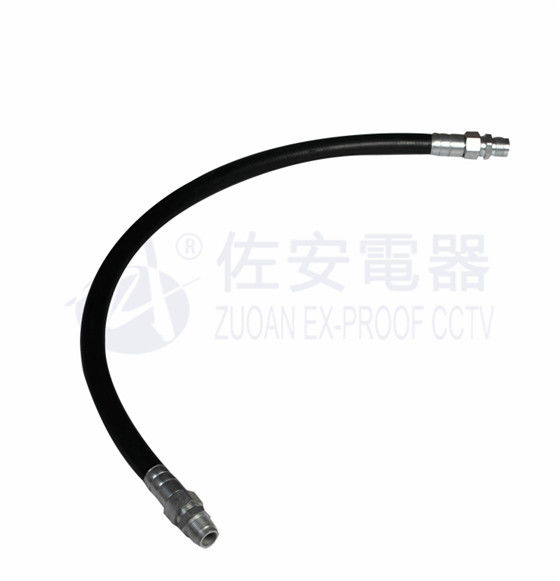

ZA-JXD4 Exd Juntion Box                                ZANXG Ex e Flexible tube



1.3MP Oil Vessel Mounted  Mini Explosion Protected Camera With Infrared Lights 5



ATEX large size explosion proof CCTV camera with wiper
Flameproof stainless steel explosion proof camera housing
Air cooling explosion proof heat resistant camera housing for furnace
Infrared light flame proof explosion proof camera housing
700TVL night vision flame proof mini explosion protected camera with infrared lights
360 degree auto tracking ATEX explosion proof ptz camera
2MP 20X long range night vision explosion proof ptz camera with laser lights
2MP 20X explosion proof dome camera with infrared light


Special order/ requirements

Contact us for special requirements, Email: info@exproofcctv.com
