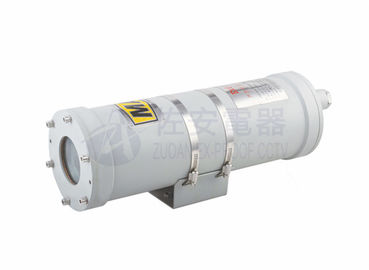

550TVL 36X Anti-explosion Explosion Proof CCTV Camera For Industry Hazardous Area

550TVL 36X Anti-explosion Explosion Proof CCTV Camera For Industry Hazardous Area

Brand Name: ZUOAN
Model Number: ZAF102-S
MOQ: 1 set
Price: 0-1000 USD
Payment Terms: 100% TT before shipment
Supply Ability: 1000 set per month
Detail Information
Place of Origin:
China
Certification:
CNEX
Type:
Analog Camera
Style:
Box Camera
Sensor:
CCD
Special Features:
Waterproof / Weatherproof
Technology:
Anti-explosion
Ingress:
IP68
Housing:
Stainless Steel 304/316L
Optional:
Heater, Cooling Module
Camera:
Analog Camera Core, Or Network Camera
Weight:
7.8KG
Weather Proof:
IP68
Inner Size For Camera:
300*70*75mm
Packaging Details:
firm carton or wooden box
Product Description

550TVL 36X Anti-explosion Explosion Proof CCTV Camera  For Industry Hazardous Area



Main features:

550TVL 36X Anti-explosion Explosion Proof CCTV Camera For Industry Hazardous Area 0

* CNEx certificated
* Explosion Proof Certification: CNEx12.0004
* Explosion Proof Marking: Exd II CT6 & DIP A20, TA, T6
* Fit for gas zone 1, 2;  dust zone 20, 21,22.
* Adopts stainless steel 304 or 316L
* Surface finish: electropolished or corrosion resistant paint finish
* IP68 for weather proof
* Equipped with auto wiper system and sunshiled for heavy polluted area
* 2 cable glands G3/4(NPT3/4)
* Strong Tempered glass with nanometer paint film
* Applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
* Installation: mounted on ceiling, wall with pan &tilt, brackets.
* Inner size for camera:300*70*75mm (LxWxH)
* Operation temperature: -25 to 65 degree centigrade
                                           -50 to +65 degree centigrade
* can load Sony camera, SAMSUNG camera, Hikvision Camera, Dahua Camera, thermal camera
* Camera: 550TVL, 18X or 36X Sony zoom camera


Download Data Sheet Here:





Description:



ZAF102 series is a middle size of explosion proof cctv camera housing, which is loaded with Sony 550TVL 36X zoom camera. it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAF102 series's explosion proof marking is Exd II CT6/DIP A20 TA, T6. its dust protection rate reaches to IP68 . ZUOAN camera housing adopts Stainless steel 304 or 316L material, which also named as corrosion proof CCTV camera, dust proof CCTV camera, weather proof CCTV camera, flame proof CCTV camera. ZAF102 housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish, according to customer requirement. for one point surveillance; it also can be mounted on rotating pan&tilt (model ZAY200B) for 128 points preset and auto patrol. At the housing end flange, there're 2 threaded holes for video cable and power cable. its size is G3/4 (inner diameter is 20mm). ZAF102 camera housing inner Size: 300*70*75mm, net weight: 7.8KG. 98% box cameras on the market can be installed in our stainless steel housing. Customers can offer camera and let us to make free installation. on the other hand, ZUOAN also offer integrated housing with installed camera.

 550TVL 36X Anti-explosion Explosion Proof CCTV Camera For Industry Hazardous Area 1



 Applications:

With stringent certifications, anti-explosion camera enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.



Data sheet:

ZAF102
Crust stainless steel 304/ 316L
Explosion proof marking Exd II CT6 & DIP A20, TA, T6
Explosion proof certification CNEx12.0004
IP rated IP68
Power input AC85-265V, AC24V
cable output  2 sets G3/4 or NPT3/4
Window glass Strong temperared glass
working temperature

-25~65°C

optional:-50~65°C

Netweight 7.8Kg
max size  for camera 300L*70W*75H mm
Overall dimension 421*132*155
accessory

wall bracket ZAZ100B

explosion proof Flexible tube D16*1000mm

Camera
* 1/4" Exview HAD CCD (progressive scan)
* 560TVL
* 36X optical zoom lens
* 3.4*-122.4mm
* AV output
