| Place of Origin: | China |
|---|---|
| Brand Name: | ZUOAN |
| Certification: | CNEX |
| Model Number: | ZAF102-S |
| Minimum Order Quantity: | 1 set |
| Price: | 0-1000 USD |
| Packaging Details: | firm carton or wooden box |
| Delivery Time: | in stock |
| Payment Terms: | 100% TT before shipment |
| Supply Ability: | 1000 set per month |
| Type: | Analog Camera | Style: | Box Camera |
|---|---|---|---|
| Sensor: | CCD | Special Features: | Waterproof / Weatherproof |
| Technology: | Anti-explosion | Ingress: | IP68 |
| Housing: | Stainless Steel 304/316L | Optional: | Heater, Cooling Module |
| Camera: | Analog Camera Core, Or Network Camera | Weight: | 7.8KG |
| Weather Proof: | IP68 | Inner Size For Camera: | 300*70*75mm |
550TVL 36X Anti-explosion Explosion Proof CCTV Camera For Industry Hazardous Area
Main features:
Description:

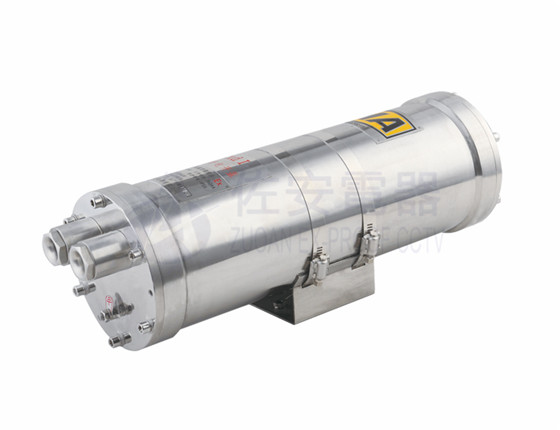

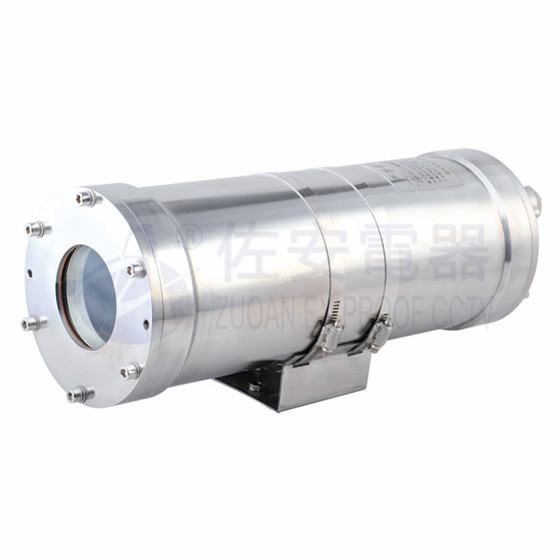

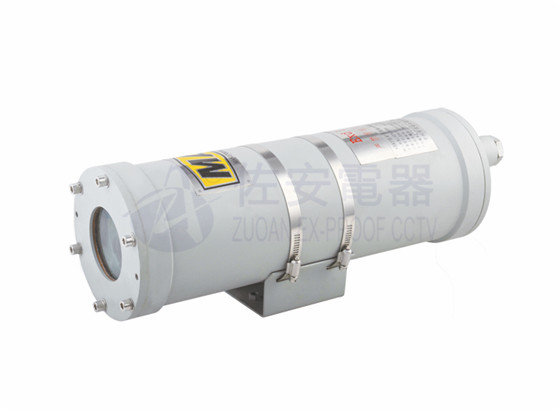

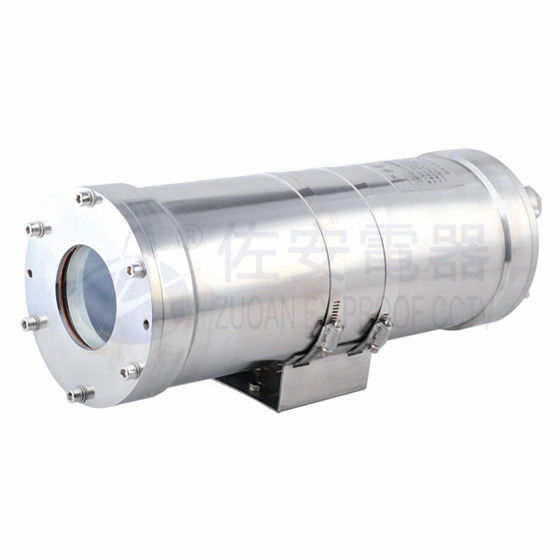

ZAF102 series is a middle size of explosion proof cctv camera housing, which is loaded with Sony 550TVL 36X zoom camera. it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAF102 series's explosion proof marking is Exd II CT6/DIP A20 TA, T6. its dust protection rate reaches to IP68 . ZUOAN camera housing adopts Stainless steel 304 or 316L material, which also named as corrosion proof CCTV camera, dust proof CCTV camera, weather proof CCTV camera, flame proof CCTV camera. ZAF102 housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish, according to customer requirement. for one point surveillance; it also can be mounted on rotating pan&tilt (model ZAY200B) for 128 points preset and auto patrol. At the housing end flange, there're 2 threaded holes for video cable and power cable. its size is G3/4 (inner diameter is 20mm). ZAF102 camera housing inner Size: 300*70*75mm, net weight: 7.8KG. 98% box cameras on the market can be installed in our stainless steel housing. Customers can offer camera and let us to make free installation. on the other hand, ZUOAN also offer integrated housing with installed camera.
Applications:
With stringent certifications, anti-explosion camera enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.
Data sheet:
| ZAF102 | |
| Crust | stainless steel 304/ 316L |
| Explosion proof marking | Exd II CT6 & DIP A20, TA, T6 |
| Explosion proof certification | CNEx12.0004 |
| IP rated | IP68 |
| Power input | AC85-265V, AC24V |
| cable output | 2 sets G3/4 or NPT3/4 |
| Window glass | Strong temperared glass |
| working temperature |
-25~65°C optional:-50~65°C |
| Netweight | 7.8Kg |
| max size for camera | 300L*70W*75H mm |
| Overall dimension | 421*132*155 |
| accessory |

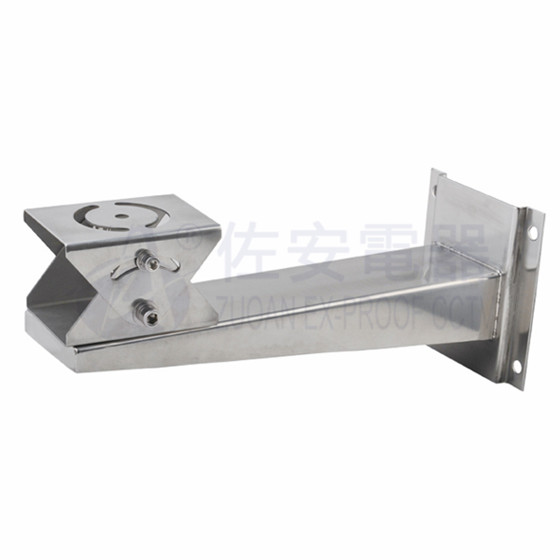

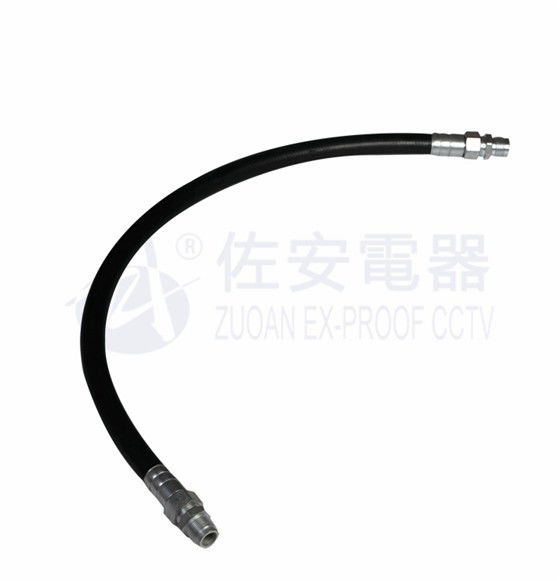

wall bracket ZAZ100B explosion proof Flexible tube D16*1000mm |
| Camera |
* 1/4" Exview HAD CCD (progressive scan)
* 560TVL
* 36X optical zoom lens
* 3.4*-122.4mm
* AV output
|
