|Type:||Digital Camera||Style:||Bullet Camera|
|Housing:||Stainless Steel 316L||Optional:||Wiper, Sunshiled, Heater, Cooling Module|
|Camera:||4K 12MP UHD Network Camera||Weight:||8KG|
|Max Size For Camera:||300*80*80mm|

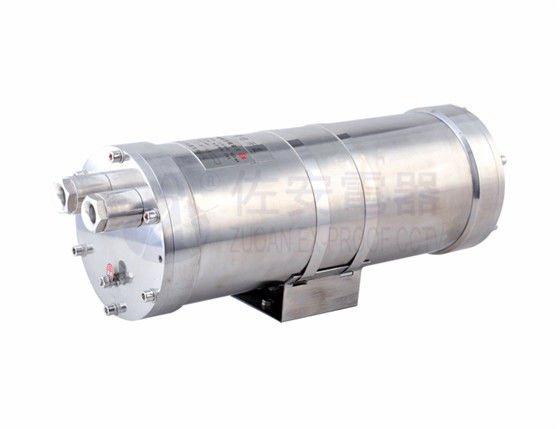

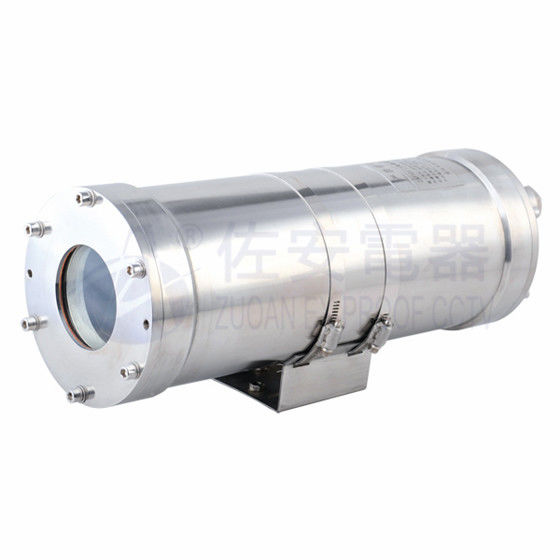

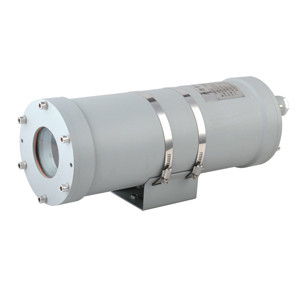

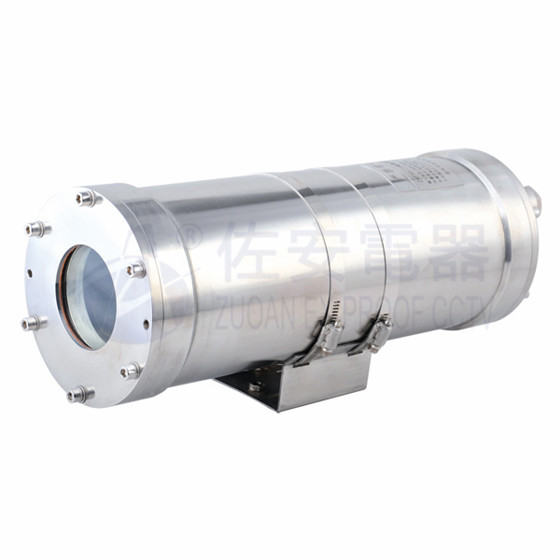

4K UHD 12 Megapixel Network Flame Proof Explosion Proof CCTV Camera
·Adopts stainless steel 316L
·Surface finish: electropolished or corrosion resistant paint finish
·2 cable glands
·Tempered glass with nanometer paint film
·Applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
·Installation: mounted on ceiling, wall with pan &tilt, brackets.
·accessories: sun shield, lens decoder, window wiper, wiper decoder, auto-heating, auto-cooling modular.
·Communication and : Pelco-D/ Pelco-P
·Output: AV/optical fiber/twisted pair/H.264
·camera optional: analog camera, network camera, thermal camera
Download Data Sheet Here:
4K UHD 12 Megapixel Network Flame Proof Explosion Proof CCTV Camera Description:
ZAF100B series is Zuoan 2016 year new developed 4K UHD 12 megapixel explosion proof cctv camera. it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAF100A series's explosion proof marking is Exd II CT6/DIP A20 TA, T6. its dust protection rate reaches to IP68. ZUOAN camera housing adopts Stainless steel 304 or 316L material, which also named as corrosion proof CCTV camera,dust proof CCTV camera, weather proof CCTV camera, flame proof CCTV camera. ZAF 100B housing/ enclosure surface also can be special treated, like electro-polished, corrosion painting finish,according to customer requirement. ZAF100B serise adopts 12mm thickness tempered window glass, with sun shiled, window wiper,which is fit for outdoor and indoor mounting. At the housing end flange, there're 2 threaded holes for video cable and power cable. its size is G3/4 (inner diameter is 20mm). Customers can offer camera and let us to make free installation.on the other hand, ZUOAN also offer integrated housing with installed camera.
4K UHD 12 Megapixel Network Flame Proof Explosion Proof CCTV Camera Applications:
With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.
4K UHD 12 Megapixel Network Flame Proof Explosion Proof CCTV Camera Data sheet:
|Crust||stainless steel 316L|
|Explosion proof marking||Exd II CT6 & DIP A20, TA, T6|
|Explosion proof certification||CNEx12.0006|
|Power input||AC85-265V, AC24V|
|cable output||2 sets G3/4 or NPT3/4|
|Window glass||Strong temperared glass|
|max size for camera||300*80*80mm|

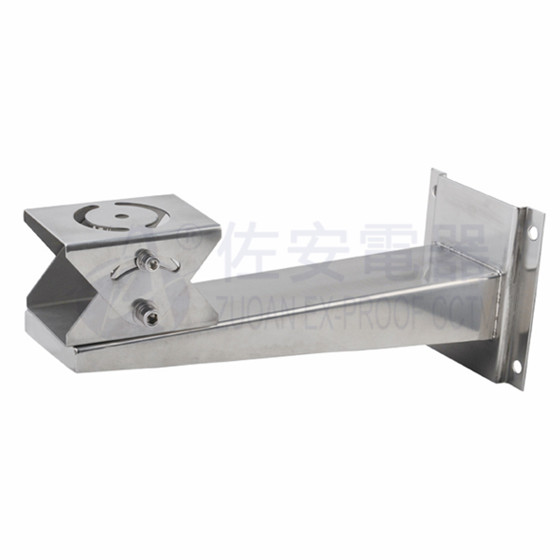

wall bracket ZAZ100B

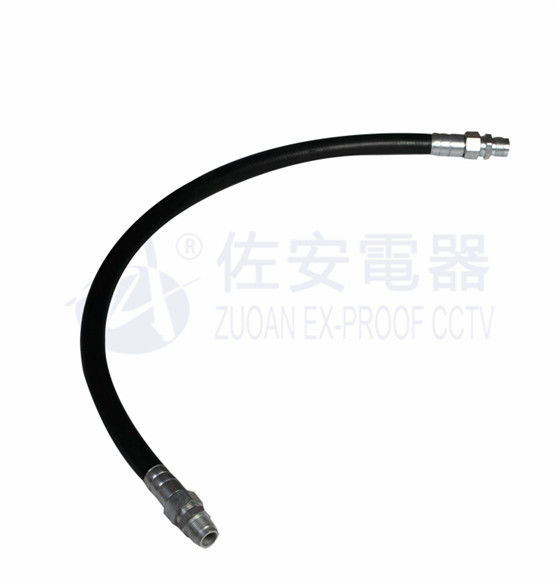

explosion proof Flexible tube D16*1000mm
* 1/2.3" 12M CMOS
* 12 megapixel,
*color 0.2Lux , B/W 0.03Lux
* Lens: manual/ DC auto iris
