| Place of Origin: | China |
|---|---|
| Brand Name: | ZUOAN |
| Certification: | CNEx, IECEx |
| Model Number: | ZAF1031 |
| Minimum Order Quantity: | 1pcs |
| Price: | 1-1000USD |
| Packaging Details: | netural box |
| Delivery Time: | 7 days |
| Supply Ability: | 500 pcs per month |
| Certificate: | IECEx, CNEx | Material: | 304 Stainless Steel |
|---|---|---|---|
| Apply: | Gas Zone 1,2; Dust Zone 21, 22 | Sun-shield: | Optional |
| Cavity: | Flame Proof Cavity | IP: | IP68 |
| Cable: | Integrated Cable Or Optical Fiber | Cable Hole: | 2 G3/4 Hole |
| Voltage: | AC24V, AC85-265V | Power: | 15W/ 25W With Thermostat |
| Surge Protect: | Optional | Temperature: | -25 To +60℃ |
| Camera: | 700TVL Color | Lens: | 4-92mm |
| Zoom: | 23X Optical | Aperture Range: | F1.5-F3.6 |
| Angle Of View: | 49-2.2 Degree(Wide-Tele) | Lights Distance: | 0-20m, Or 20-60m |

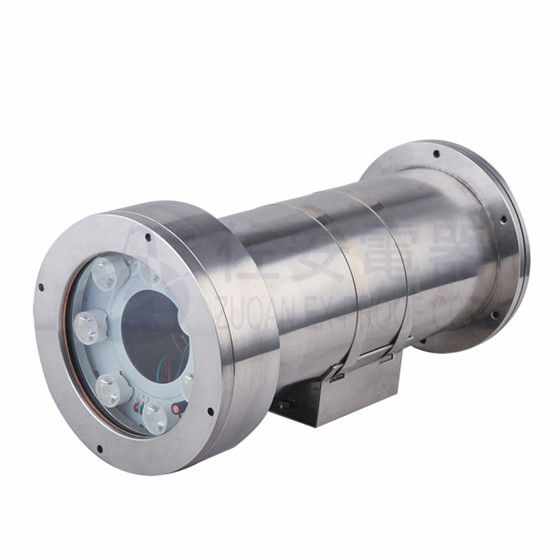

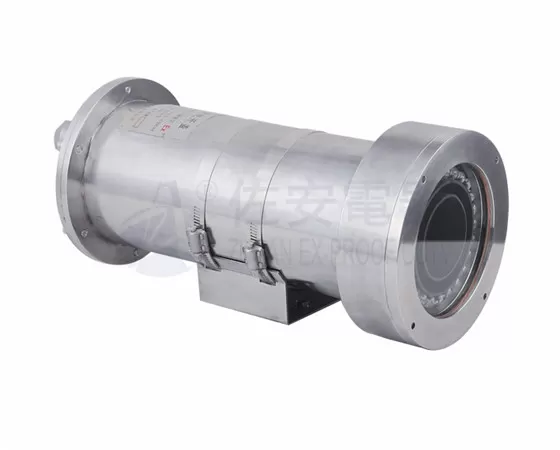

Analogue Explosion Protected Camera Station With Integral Illumination in 304 Stainless Steel
ZAF1031 series is an analogue explosion protected fix camera station, which is made of 304 stainless steel cavity. Its flame proof enclosure can add stainless steel sun shroud. It is load analogue 700TVL camera, 4-92mm lens, 23x optical zoom. ZAF1031 cable output usually is 2 meters. ZAF1031 cable output can be coaxial cable or optical fiber cable. ZAF1031 fixed camera station is also has integral illumination light. Explosion protected camera with lights has 0-20m, or 20-60m night vision distance. Its front window is strong temperated glass. In high corrosion area, we also offer a special treated window glass, so as to keep the glass anti-corrosion.
We also can offer ZAF1031 flame proof cavity only, if you wish to load local brand camera. Please free contact us by info@exproofcctv.com
ZAF1031 series has some accessories, like ZAZ100B wall bracket, ZAJXD4 explosion proof junction box, ZANXG1.0 explosion proof flexible tube.

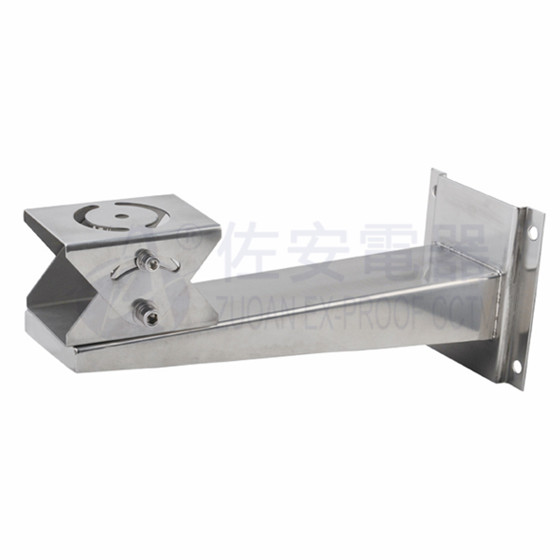

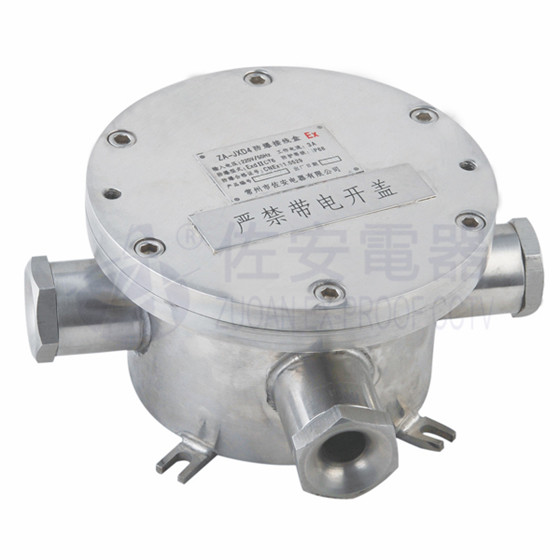

ZAZ100B wall bracket ZAJXD4 Exd Junction box ZANXG1.0 Exe flexible tube
Certificate
| Certificate Mark | ExdⅡC T6 GB/DIP A20 TA, T6 |
| Certificate No | CNEx16.2528 |
| Standards | Q/320412ZAF031-2016 |
Mechanical
| Housing | Stainless steel 304 or 316L |
| IP | IP68 |
| Cable thread hole | 2pcs G3/4 or NPT3/4 |
| Sun-shield | No |
| Wiper | No |
Electrical
| Voltage | AC85V～AC265V or DC24Vor AC24V |
| Power | 15W/25W (with thermostat) |
Ambient
| Ambient temperature | -25 to +60℃ / -45 to +80℃ |
| Air pressure | 80Kpa to 106Kpa |
| Relative Humidity | ≦95% (no condensation) |
Lights
| Lights | 30m infrared lights |
| Lights Control | Support |
Communication
| Communication | support analog video output |
| 485 Communication | Support Pelco-D, Pelco-P |
| Communicate Rate | 2400 to 19200bps |
Camera
| Image Sensor | 1/3" interline-transfer CCD |
| Effective pixel | PAL 976*582 NTSC 976*494 |
| Min. Illumination | Color 0.04Lux B/W: 0.004Lux |
| Shutter Time | 1/50(1/60) sec~ 1/10,000 sec |
| Day&Night | Auto ICR |
| Horizontal resolution | 700TVL (color), 720TVL (B&W) |
| S/N ratio | ＞50dB(AGC off) |
Lens
| Focal Length | 4-92mm, 23X/or 36X optical |
| Aperture Range | F1.5-F3.6 |
| Angle of View | 49-2.2 degree(Wide-Tele) |
| Min. Working Distance | 10mm-1500mm(Wide-Tele) |
| Zoom Speed | Approx. 3s(Optical, Wide-Tele) |
Control
| Camera address | on/off (0-254) |
| Focus Mode | Auto/Manual/One touch |
| Gain | off/ lower/ higher |
| Slow shutter | X256 MAX |
| White Balance | Auto white balance 1/auto white balance 2/Manual/auto |
| Private | Off/ Mode 1/ Mode 2 |
| Video | 3D DNR, mirror, brightness, Contrast, Sharpness adjustable |
| Digital zoom | X16 |
| Zoom display | on/off |
| ZCF control mode | mode 1, mode 2 |
| RS485 | protocol, baud rate, address |
General
| Cable | integrated cable |
| Size | 377*160*178mm |
| Weight | 8.8kg |
| Mounted | wall, pole |
| Wall bracket | ZAZ100B |
Drawings:
Other flame proof housing:

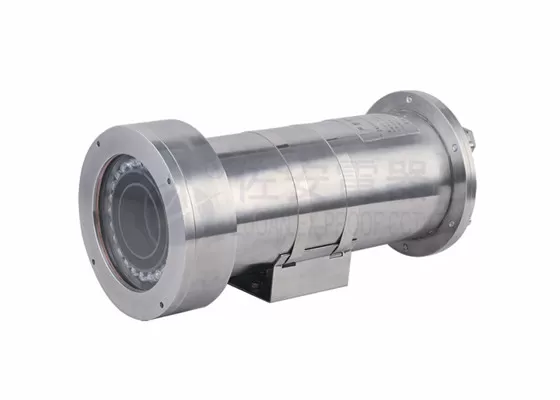

ZAF100B housing with sunshiled ZAF105 middle housing ZAF1032 Housing with lights
Special order/ requirements
Contact us for special requirements, Email: info@exproofcctv.com
