Customisable Network flame proof fixed camera station in 316L Stainless Steel Housing

Customisable Network flame proof fixed camera station in 316L Stainless Steel Housing

    • Customisable Network flame proof fixed camera station in 316L Stainless Steel Housing
    • Customisable Network flame proof fixed camera station in 316L Stainless Steel Housing
    • Customisable Network flame proof fixed camera station in 316L Stainless Steel Housing
    • Customisable Network flame proof fixed camera station in 316L Stainless Steel Housing
  • Customisable Network flame proof fixed camera station in 316L Stainless Steel Housing

    Product Details:

    Place of Origin: China
    Brand Name: ZUOAN
    Certification: CNEx, IECEx
    Model Number: ZAF105

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: 1-1000USD
    Packaging Details: netural box
    Delivery Time: 7 days
    Supply Ability: 500 pcs per month
    Contact Now
    Detailed Product Description
    Certificate: IECEx, CNEx Material: 316L Stainless Steel
    Apply: Dust Zone 21, 22 Sun-shield: 316L Stainless Steel
    Cavity: Flame Proof Cavity IP: IP68
    Cable: Integrated Cable Or Optical Fiber Cable Hole: 2 G3/4 Hole
    Voltage: AC24V, AC85-265V Power: 15W/ 25W With Thermostat
    Surge Protect: Optional Temperature: -25 To +60℃
    Camera: 700TVL Color Lens: 4-92mm
    Zoom: 23X Optical Aperture Range: F1.5-F3.6
    Angle Of View: 49-2.2 Degree(Wide-Tele)

    Customisable Network flame proof fixed camera station in 316L Stainless Steel Housing

    Customisable Network flame proof fixed camera station in 316L Stainless Steel Housing

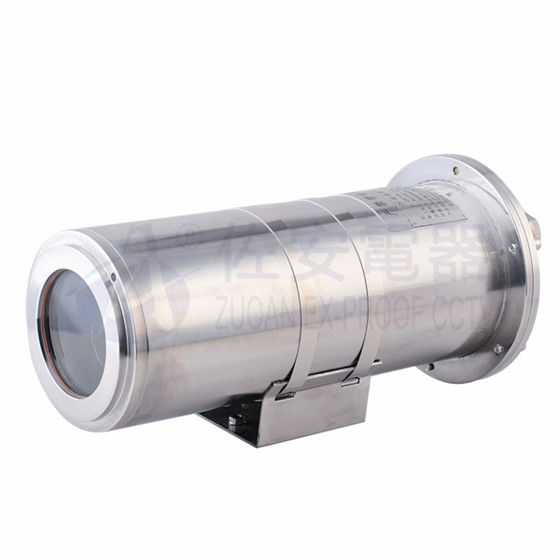

          ZAF105 series is an analogue fix camera station, which is made of 316L stainless steel cavity. Its middle size flame proof enclosure can add stainless steel sun shroud. It is load analogue 700TVL camera, 4-92mm lens, 23x optical zoom. ZAF105 cable output usually is 2 meters. ZAF105 cable output can be coaxial cable or optical fiber cable. Its front window is strong temperated glass. In high corrosion area, we also offer a special treated window glass, so as to keep the glass anti-corrosion.

    We also can offer ZAF105 flame proof cavity only, if you wish to load local brand camera. Please free contact us by info@exproofcctv.com


    ZAF105 series has some accessories, like ZAZ100B wall bracket, ZAJXD4 explosion proof junction box, ZANXG1.0 explosion proof flexible tube.



    Customisable Network flame proof fixed camera station in 316L Stainless Steel Housing           Customisable Network flame proof fixed camera station in 316L Stainless Steel Housing           Customisable Network flame proof fixed camera station in 316L Stainless Steel Housing

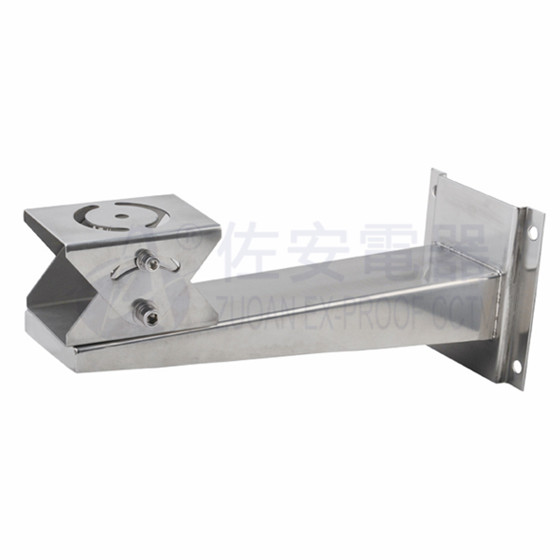

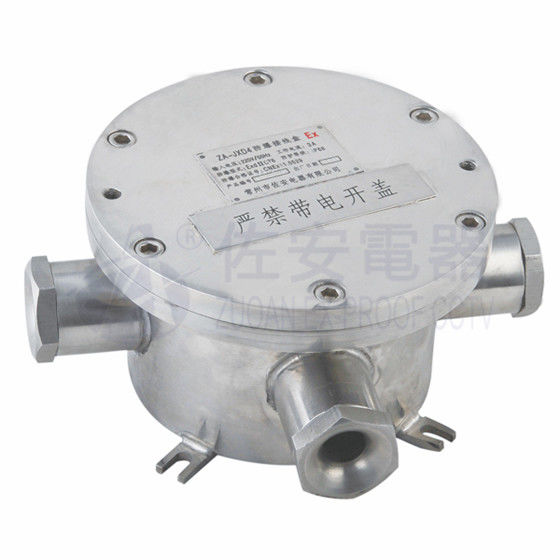

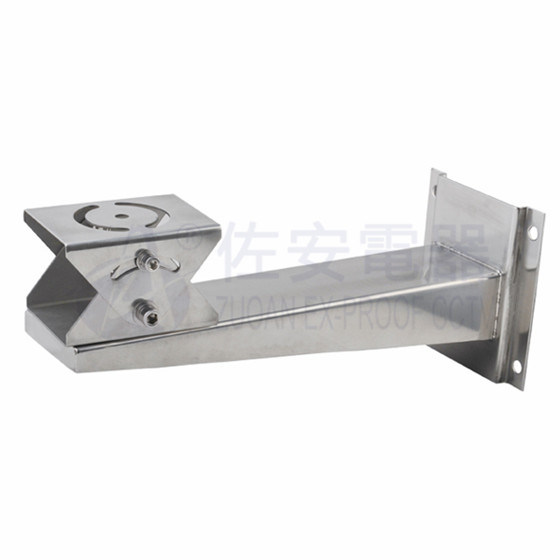

    ZAZ100B wall bracket           ZAJXD4 Exd Junction box       ZANXG1.0 Exe flexible tube

    Certificate

    Certificate MarkExdⅡC T6 GB/DIP A20 TA, T6
    Certificate NoCNEx13.2138
    StandardsQ/320412ZAF010-2013


    Mechanical

    HousingStainless steel 304 or 316L
    IPIP68
    Cable thread hole2pcs G3/4 or NPT3/4
    Sun-shieldNo
    WiperNo


    Electrical

    VoltageDC24Vor POE
    Power8W


    Ambient

    Ambient temperature-25 to +60℃
    Air pressure80Kpa to 106Kpa
    Relative Humidity≦95% (no condensation)


    Alarm

    Alarm Input2-channel/ 7-channel
    Alarm Output1-channel, action with alarm
    Intelligent AlarmAudio detective, move detective, video shield, network interrupt, IP address conflict, storage full, storage error, illegal access


    Audio

    Audio InputAudio input (LINE input, MIC input), audio peak:2-2.4Vp-p,output impedance: 1KΩ+10%
    Audio OutputLine-level impedance 600Ω


    Network

    Network Interface1pcs of RJ45, support 10M/100M/1000M
    Video CompressionH.264 main profile / MJPEG
    Audio CompressionG.722.1/ G.711-a law/ G7.11-u law/MP2L2/G.726
    Voice IntercomSupport
    StreamSupport three streams
    Internet Protocol

    IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP
    ,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE

    Time DisplaySupport
    StandardONVIF, CGI, GB/T28181, PISA
    IE browserSupport IE7 or above, Google, Firefox, Apple
    SecurityPassword protection, Multiple access control


    Camera

    Image Sensor1/2.8" interline-transfer CCD
    Effective pixel1.3MP, 2MP, 3MP
    Min. IlluminationColor 0.05Lux B/W: 0.01Lux
    Day&nightAuto/ Color/ BW
    S/N ratio>52dB(AGC off)
    Gainoff/ lower/ higher
    White BalanceAuto/ Manual/ Auto tracking white balance/ indoor/outdoor/ Sodium Lamp/ Fluorescent Lamp
    3D DNRSupport
    BLCON/OFF
    Image settingMirror, Saturation, Brightness, Contrast, Sharpness adjustable
    Optical zoom20X / 30X


    General

    Cableintegrated cable
    Size390*163*170mm
    Weight7.5kg
    Mountedwall, pole
    Wall bracketZAZ100B



    Drawings:
    Customisable Network flame proof fixed camera station in 316L Stainless Steel Housing
    Other flame proof housing:

    Customisable Network flame proof fixed camera station in 316L Stainless Steel Housing                Customisable Network flame proof fixed camera station in 316L Stainless Steel Housing              Customisable Network flame proof fixed camera station in 316L Stainless Steel Housing

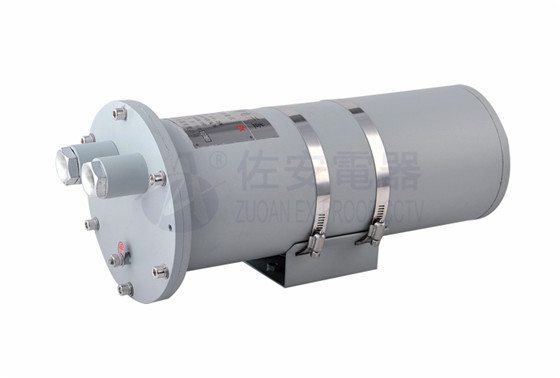

    ZAF102 housing                      ZAF100A housing with wiper        ZAF1031 Housing with lights



    Special order/ requirements

    Contact us for special requirements, Email: info@exproofcctv.com
