Ex d Fixed Camera Station With Integral Illumination in 304 Stainless Steel

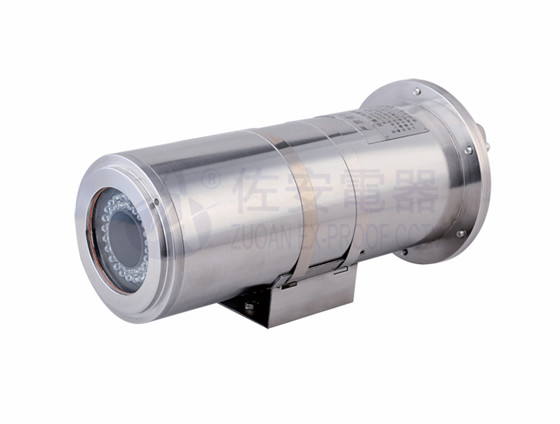

ZAF103 series is an Ex d analogue fix camera station, which is made of 304 stainless steel cavity. Its flame proof enclosure can add stainless steel sun shroud. It is load analogue 700TVL camera, 4-92mm lens, 23x optical zoom. ZAF103 cable output usually is 2meters. ZAF103 cable output can be coaxial cable or optical fiber cable. ZAF103 fixed camera station is also has integral illumination lights. Its front window is strong temperated glass. In high corrosion area, we also offer a special treated window glass, so as to keep the glass anti-corrosion.
We also can offer ZAF103 flame proof cavity only, if you wish to load local brand camera. Please free contact us by info@exproofcctv.com
ZAF103 series has some accessories, like ZAZ100B wall bracket, ZAJXD4 explosion proof junction box, ZANXG1.0 explosion proof flexible tube.

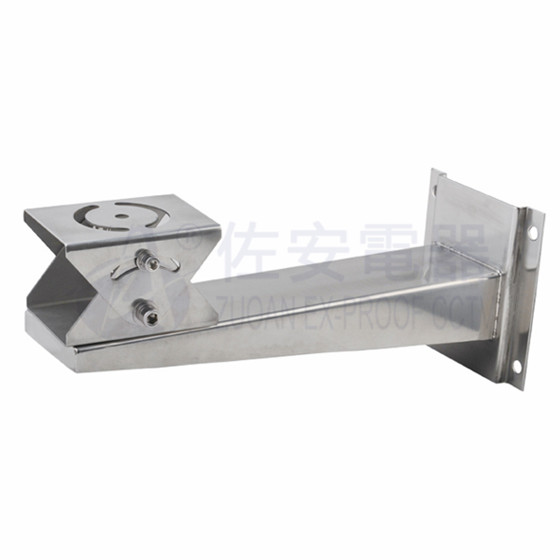

ZAZ100B wall bracket ZAJXD4 Exd Junction box ZANXG1.0 Exe flexible tube
Certificate
| Certificate Mark | ExdⅡC T6 GB/DIP A20 TA, T6 |
| Certificate No | CNEx13.2139 |
| Standards | Q/320412ZAF008-2013 |
Mechanical
| Housing | Stainless steel 304 or 316L |
| IP | IP68 |
| Cable thread hole | 2pcs G3/4 or NPT3/4 |
| Sun-shield | No |
| Wiper | No |
Electrical
| Voltage | AC85V～AC265V or DC24Vor AC24V |
| Power | 15W/25W (with thermostat) |
Ambient
| Ambient temperature | -25 to +60℃ / -45 to +80℃ |
| Air pressure | 80Kpa to 106Kpa |
| Relative Humidity | ≦95% (no condensation) |
Lights
| Lights | 30m infrared lights |
| Lights Control | Support |
Communication
| Communication | support analog video output |
| 485 Communication | Support Pelco-D, Pelco-P |
| Communicate Rate | 2400 to 19200bps |
Camera
| Image Sensor | 1/3" interline-transfer CCD |
| Effective pixel | PAL 976*582 NTSC 976*494 |
| Min. Illumination | Color 0.04Lux B/W: 0.004Lux |
| Shutter Time | 1/50(1/60) sec~ 1/10,000 sec |
| Day&Night | Auto ICR |
| Horizontal resolution | 700TVL (color), 720TVL (B&W) |
| S/N ratio | ＞50dB(AGC off) |
Lens
| Focal Length | 4-92mm, 23X/or 36X optical |
| Aperture Range | F1.5-F3.6 |
| Angle of View | 49-2.2 degree(Wide-Tele) |
| Min. Working Distance | 10mm-1500mm(Wide-Tele) |
| Zoom Speed | Approx. 3s(Optical, Wide-Tele) |
Control
| Camera address | on/off (0-254) |
| Focus Mode | Auto/Manual/One touch |
| Gain | off/ lower/ higher |
| Slow shutter | X256 MAX |
| White Balance | Auto white balance 1/auto white balance 2/Manual/auto |
| Private | Off/ Mode 1/ Mode 2 |
| Video | 3D DNR, mirror, brightness, Contrast, Sharpness adjustable |
| Digital zoom | X16 |
| Zoom display | on/off |
| ZCF control mode | mode 1, mode 2 |
| RS485 | protocol, baud rate, address |
General
| Cable | integrated cable |
| Size | 313*140*145mm |
| Weight | 5.5kg |
| Mounted | wall, pole |
| Wall bracket | ZAZ100B |
Drawings:
Other flame proof housing:

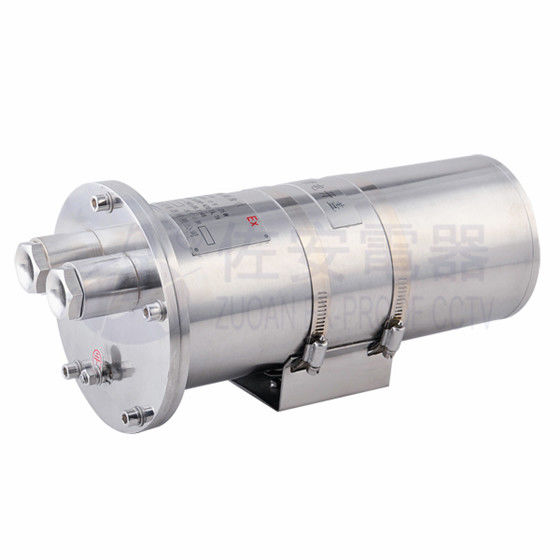

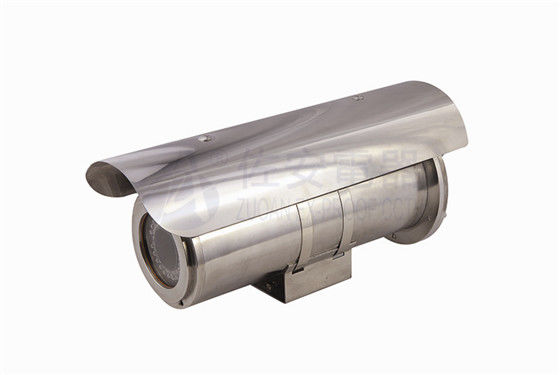

ZAF100B housing with sunshiled ZAF105 middle housing ZAF1031 Housing with lights
Special order/ requirements
Contact us for special requirements, Email: info@exproofcctv.com
How explosion-proof cameras work
The working principle of explosion-proof cameras is to suppress the generation and occurrence of the four elements of explosion so that electrical products can still work normally in high-risk environments. The four elements of explosion are:
1. There are flammable gases, dusts and mixtures on site and constitute a certain concentration;
2. There is sufficient oxygen on site to react with combustibles;
3. There is sufficient temperature on site to cause the mixture to react with oxygen;
4. The space on site is small enough that the heat after combustion can accumulate to a certain concentration in a short period of time or even explode.
If any of the above four factors is established, the explosion can be effectively prevented.
