ZAS702B Stainless Steel Camera Housing for Surveillance Cameras

Name: ZAS702B Stainless Steel Camera Housing for Surveillance Cameras
Brand: ZUOAN ELECTRIC APPLIANCE CO., LTD.
SKU: ZAS702B
Price: 175.00 USD
Availability: InStock

Brand Name:	ZUOAN
Model Number:	ZAS702B
MOQ:	1set
Price:	100-250USD
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50 sets per week

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, China

Certification:

NEMA

Material:

Stainless Steel 201, 304, 316L

NEMA:

Type 4

Ingress Protection:

IP65

Cable Hole:

2 Sets G3/4 Cable Gland

Inner Size:

260*80*80mm

Optional:

Heater, Blower, Power Kit

Weight:

4kg

Packaging Details:

firm carton box

Product Description

ZAS702B Outdoor Stainless Steel Camera Housing for Surveillance Camera

Overview:

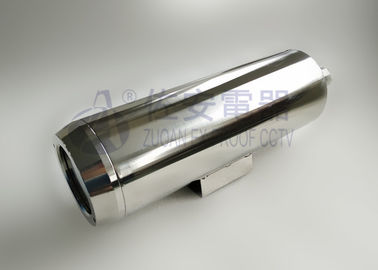

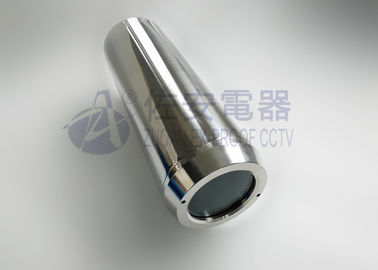

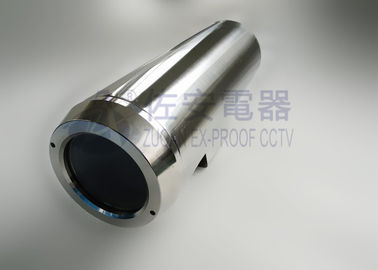

The ZAS702B outdoor stainless steel camera housing from ZUOAN is rain and dust-proof enclosures for surveillance cameras. This stainless steel camera housing is made of 201, 304 or marine grade 316L material. The ZAS702B stainless steel camera housing can load wide range of cameras, not only the zoom camera, but also the fixed local lengths camera.

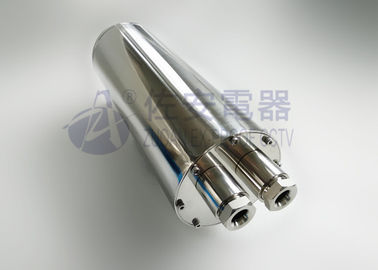

The stainless steel camera housing's optional heaters and blower to keep inside dry in summer and warm in cold winter. Additionally, its rear flange features two G3/4 cable gland for camera video or power cable thread by.

ZUOAN also design a wall bracket ZAZ104B to load the ZAS702B stainless steel camera housing. The wall bracket with flexible joint can make the stainless steel camera housing easily fixed at any angle. Additionally ZUOAN pan tilt ZAY210 cann also load ZAS702B stainless steel camera housing to realise 360 degree auto tracking and surveillance.

Download Data sheet

ZAS702AB outdoor stainless steel camera housing data sheet.pdf

Features:

Design for sunlights, rain, dust ingress
Outdoor enclosure for various surveillance camera
stainless steel 201, 304, 316L construction
compact, light weight
Meet NEMA type 4
Accept zoom camera or fixed lens camera
Optional sun shroud, heater, blower to upgrade housing

ZAS702B Stainless Steel Camera Housing for Surveillance Cameras 0

Specs

Model	ZAS702b
Atmospheric pressure	60KPa～96Kpa
Ambient Temperature	–25°c～+60°C
Relative Humidity	≤95% (+25°C)
Sun shroud	Optional
Window	Dia 76mm
Cable gland	2 sets G3/4
Ingress protection	IP65
Housing Material	Stainless steel 201, 304, or 316L
Overall dimension	358133155mm
Optional	heater, blower for hot summer and cold winter
Weight	4.5kg

Drawings

ZAS702B Stainless Steel Camera Housing for Surveillance Cameras 2

ZAS702B Stainless Steel Camera Housing for Surveillance Cameras 3

Accessories:

ZAS702B Stainless Steel Camera Housing for Surveillance Cameras 4

ZAZ104B wall bracket for ZAS702A housing
