ZAS702B Stainless Steel Camera Housing for Surveillance Cameras

Basic Information
Place of Origin: Changzhou, China
Brand Name: ZUOAN
Certification: NEMA
Model Number: ZAS702B
Minimum Order Quantity: 1set
Price: 100-250USD
Packaging Details: firm carton box
Delivery Time: 5-8 days
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets per week
Material: Stainless Steel 201, 304, 316L NEMA: Type 4
Ingress Protection: IP65 Cable Hole: 2 Sets G3/4 Cable Gland
Inner Size: 260*80*80mm Optional: Heater, Blower, Power Kit
Weight: 4kg

ZAS702B Outdoor Stainless Steel Camera Housing for Surveillance Camera



Overview:



The ZAS702B outdoor stainless steel camera housing from ZUOAN is rain and dust-proof enclosures for surveillance cameras. This stainless steel camera housing is made of 201, 304 or marine grade 316L material. The ZAS702B stainless steel camera housing can load wide range of cameras, not only the zoom camera, but also the fixed local lengths camera.



The stainless steel camera housing's optional heaters and blower to keep inside dry in summer and warm in cold winter. Additionally, its rear flange features two G3/4 cable gland for camera video or power cable thread by.



ZUOAN also design a wall bracket ZAZ104B to load the ZAS702B stainless steel camera housing. The wall bracket with flexible joint can make the stainless steel camera housing easily fixed at any angle. Additionally ZUOAN pan tilt ZAY210 cann also load ZAS702B stainless steel camera housing to realise 360 degree auto tracking and surveillance.



Download Data sheet



ZAS702AB outdoor stainless steel camera housing data sheet.pdf



Features:

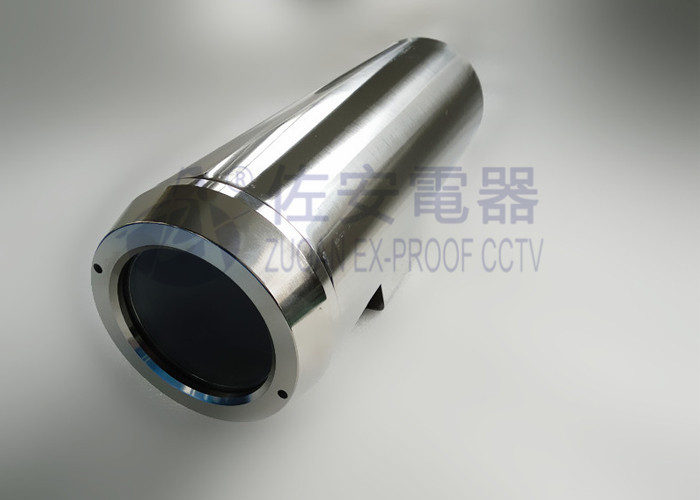

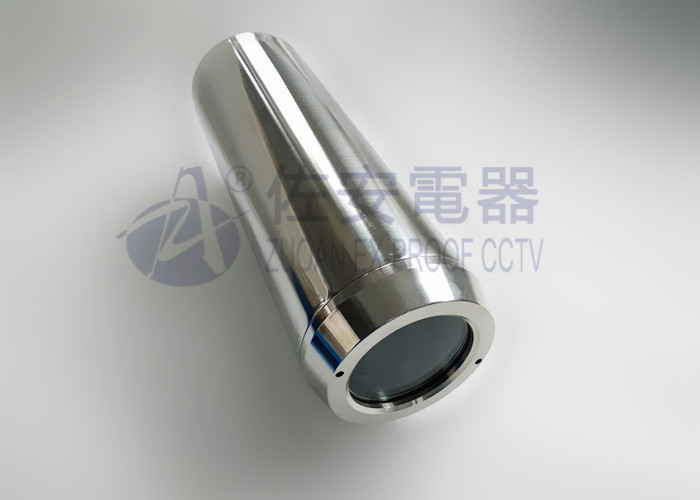

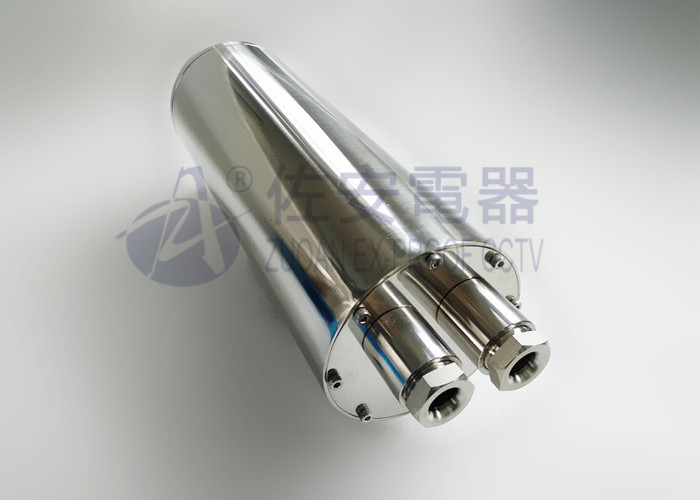

ZAS702B Stainless Steel Camera Housing for Surveillance Cameras 0 ZAS702B Stainless Steel Camera Housing for Surveillance Cameras 1



Specs



Model ZAS702b
Atmospheric pressure 60KPa~96Kpa
Ambient Temperature –25°c~+60°C
Relative Humidity ≤95% (+25°C)
Sun shroud Optional
Window Dia 76mm
Cable gland 2 sets G3/4
Ingress protection IP65
Housing Material Stainless steel 201, 304, or 316L
Overall dimension 358*133*155mm
Optional heater, blower for hot summer and cold winter
Weight 4.5kg





Drawings

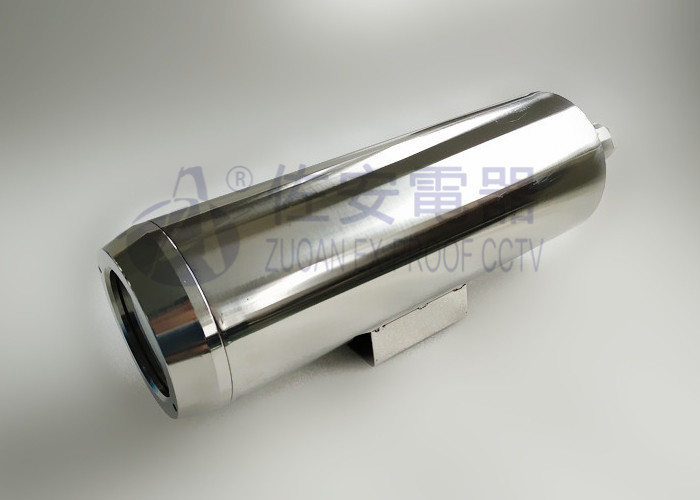

ZAS702B Stainless Steel Camera Housing for Surveillance Cameras 2

ZAS702B Stainless Steel Camera Housing for Surveillance Cameras 3



Accessories:



ZAS702B Stainless Steel Camera Housing for Surveillance Cameras 4

ZAZ104B wall bracket for ZAS702A housing
